Toyota HIGHLANDER/KLUGER — COWL PANEL & WINDSHIELD GLASS
53607BBRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
53608ABRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
53895FSHIELD, FRONT FENDER SPLASH, FRONT RH
53896ASHIELD, FRONT FENDER SPLASH, FRONT LH
55700BCOWL ASSY
55704BPANEL SUB-ASSY, COWL VENTILATOR
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.,TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
55708CCLIP, COWL TOP VENTILATOR LOUVER
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=718,IRAQ SPEC
L=718
L=718,PLATINUM PACKAGE
L=718,PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=718,WINTER PACKAGE
L=718,HYBRID SPECIAL EDITION
L=718,HYBRID SPECIAL EDITION&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
56117EDAM, WINDOW GLASS ADHESIVE
L=1469,WINTER PACKAGE
L=1469,IRAQ SPEC
L=1469
L=1469,PLATINUM PACKAGE
L=1469,PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=1469,HYBRID SPECIAL EDITION
L=1469,HYBRID SPECIAL EDITION&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
56153CMOULDING, FRONT WINDOW, INNER CENTER
5701
75531FMOULDING, WINDSHIELD, OUTSIDE UPPER
8617
9011906A68
90178A0093
main90178-A0093

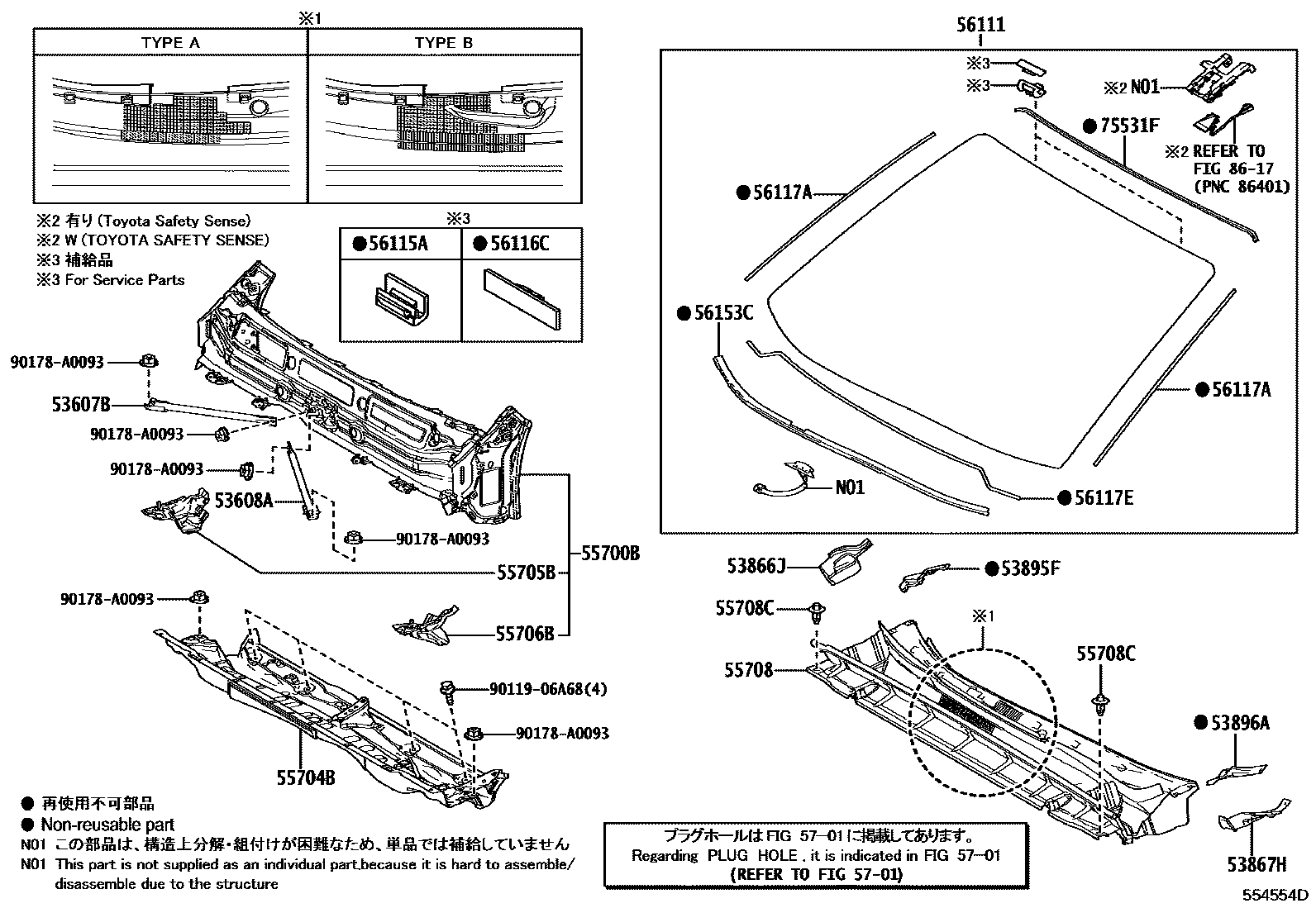

23 parts on this diagram · 4 diagrams in section
