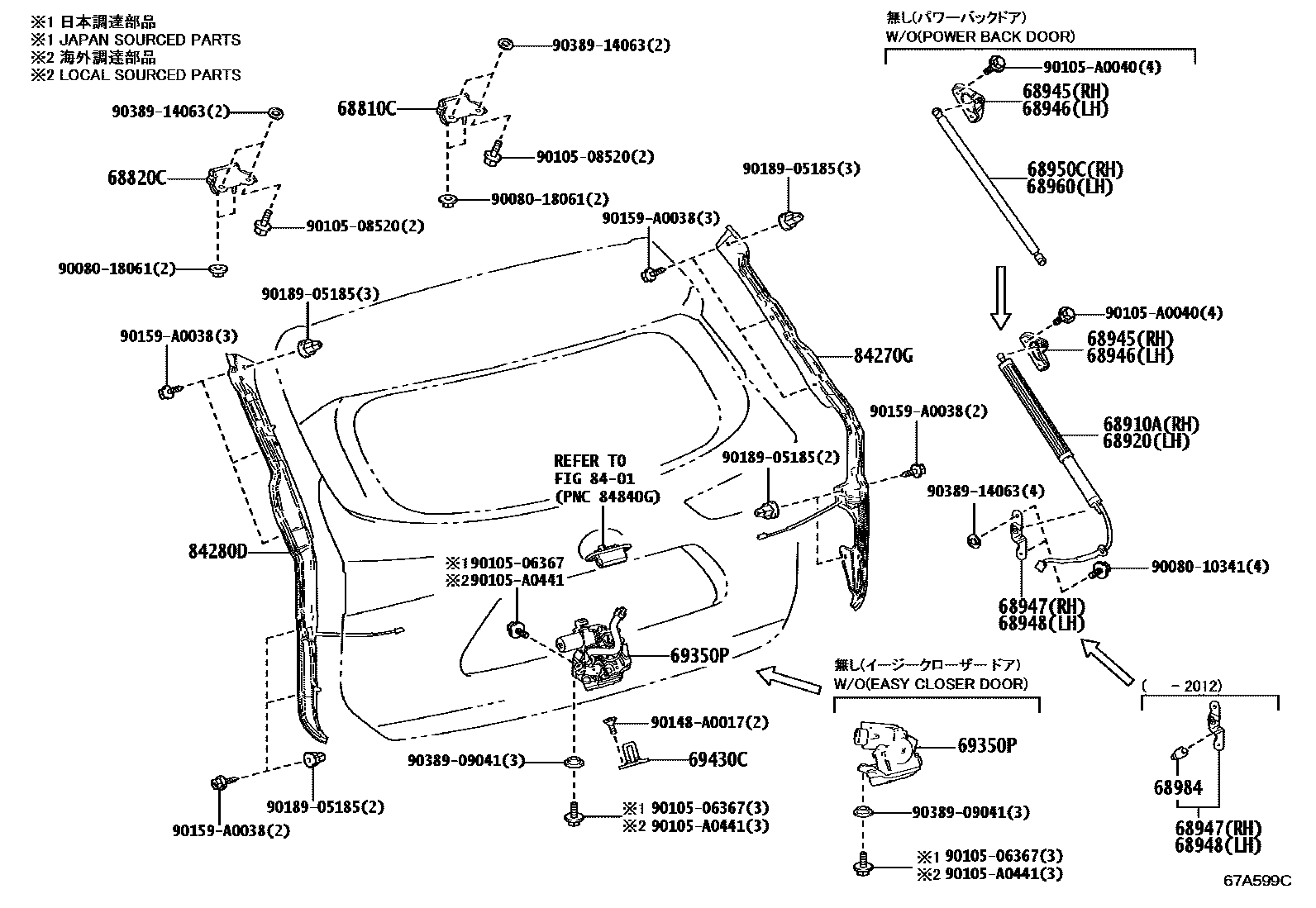

Toyota HIGHLANDER/KLUGER — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-0E290iAXUH7#,TXUA75..LHD¥2,310202002-202410

PAD T=1.5

68820CHINGE ASSY, BACK DOOR, LH

main68820-0E230iAXUH7#,GSU7#¥2,310202002-202410

PAD T=1.5

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-0E070iAXUH78..LIMD;GSU75..LE..RUS;AXUH78..XLE..GCC;AXUH70,GSU7#..LIMD,XLE202002-202311

main68910-0E070iAXUH78,TXUA7#..RHD..LIMD202210-202312

LEATHER PACKAGE

main68910-0E191iAXUH70..LIMD202311-202410

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-0E050iAXUH78..LIMD;GSU75..LE..RUS;AXUH78..XLE..GCC;AXUH70,GSU7#..LIMD,XLE202002-202311

main68920-0E050iAXUH78,TXUA7#..RHD..LIMD202210-202312

LEATHER PACKAGE

main68920-0E131iTXUA75..LE..RUS;AXUH7#..XLE..GCC;AXUH78,TXUA7#..LIMD202311-202410

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0E050iAXUH78..LE..GCC;AXUH78..(LE,XLE)..(ARL,EUR);AXUH70,GSU7#..LE..(ARL,GCC)202002-202312

main68945-0E060iAXUH70..LIMD¥660202002-202410

main68945-0E060iAXUH78..LIMD;TXUA75..LE..RUS;AXUH78..XLE..GCC;AXUH70,TXUA7#..LIMD,XLE¥660202210-202312

LEATHER PACKAGE

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0E030iAXUH78..XLE..EUR;AXUH7#,TXUA7#..LE..(ARL,GCC)202002-202312

main68946-0E040iAXUH78..LIMD;TXUA75..LE..RUS;AXUH78..XLE..GCC;AXUH70,TXUA7#..LIMD,XLE¥660202210-202312

LEATHER PACKAGE

main68946-0E040iAXUH70..LIMD¥660202002-202410

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0E050iAXUH7#,GSU75¥890202002-202012

sub68947-0E051¥660

sub69477-0E010

main68947-0E051iAXUH7#,GSU7#¥660202012-202410

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0E040iAXUH7#,GSU75¥890202002-202012

sub68948-0E041¥660

sub69477-0E010

main68948-0E041iAXUH70..LIMD¥660202012-202410

68950CSTAY ASSY, BACK DOOR, RH

main68950-0E150iAXUH78..LE..GCC;AXUH78..(LE,XLE)..(ARL,EUR);AXUH70,GSU7#..LE..(ARL,GCC)202002-202312

68960STAY ASSY, BACK DOOR, LH

main68950-0E150iAXUH78..LE..GCC;AXUH78..(LE,XLE)..(ARL,EUR);AXUH70,GSU7#..LE..(ARL,GCC)202002-202312

68984STOPPER, BACK DOOR STAY

main69477-0E010iAXUH7#,TXUA75..LHD202002-202410

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0E150iAXUH78..LIMD;GSU75..LE..RUS;AXUH78..XLE..GCC;AXUH70,GSU7#..LIMD,XLE202002-202108

sub69350-0E151

main69350-0E151iTXUA75..LE..RUS;AXUH7#..XLE..GCC;AXUH78,TXUA7#..LIMD202210-202410

main69350-0E151iAXUH78..LIMD;GSU75..LE..RUS;AXUH78..XLE..GCC;AXUH70,GSU7#..LIMD,XLE202109-202312

LEATHER PACKAGE

main69350-0E160iAXUH78..XLE..EUR;AXUH7#,TXUA7#..LE..(ARL,GCC)202002-202312

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E070iAXUH7#,GSU7#202002-202410

8401

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-0E060iAXUH78..LIMD;GSU75..LE..RUS;AXUH78..XLE..GCC;AXUH70,GSU7#..LIMD,XLE202002-202210

sub84270-0E061

main84270-0E060iAXUH78..LIMD;TXUA75..LE..RUS;AXUH78..XLE..GCC;AXUH70,TXUA7#..LIMD,XLE202210-202312

LEATHER PACKAGE

sub84270-0E061

main84270-0E080iAXUH70..LIMD202311-202410

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-0E060iAXUH78..LIMD;GSU75..LE..RUS;AXUH78..XLE..GCC;AXUH70,GSU7#..LIMD,XLE202002-202210

sub84280-0E061

main84280-0E060iAXUH78..LIMD;TXUA75..LE..RUS;AXUH78..XLE..GCC;AXUH70,TXUA7#..LIMD,XLE202210-202312

LEATHER PACKAGE

sub84280-0E061

main84280-0E160iAXUH70..LIMD202311-202410

9008010341

main90080-10341¥80

9008018061

main90080-18061

9010506367

main90105-06367¥60

9010508520

main90105-08520¥100

90105A0040

main90105-A0040

90105A0441

main90105-A0441

90148A0017

main90148-A0017

90159A0038

main90159-A0038

9018905185

main90189-05185¥70

9038909041

main90389-09041¥100

9038914063

main90389-14063¥170

27 parts on this diagram · 1 diagram in section
