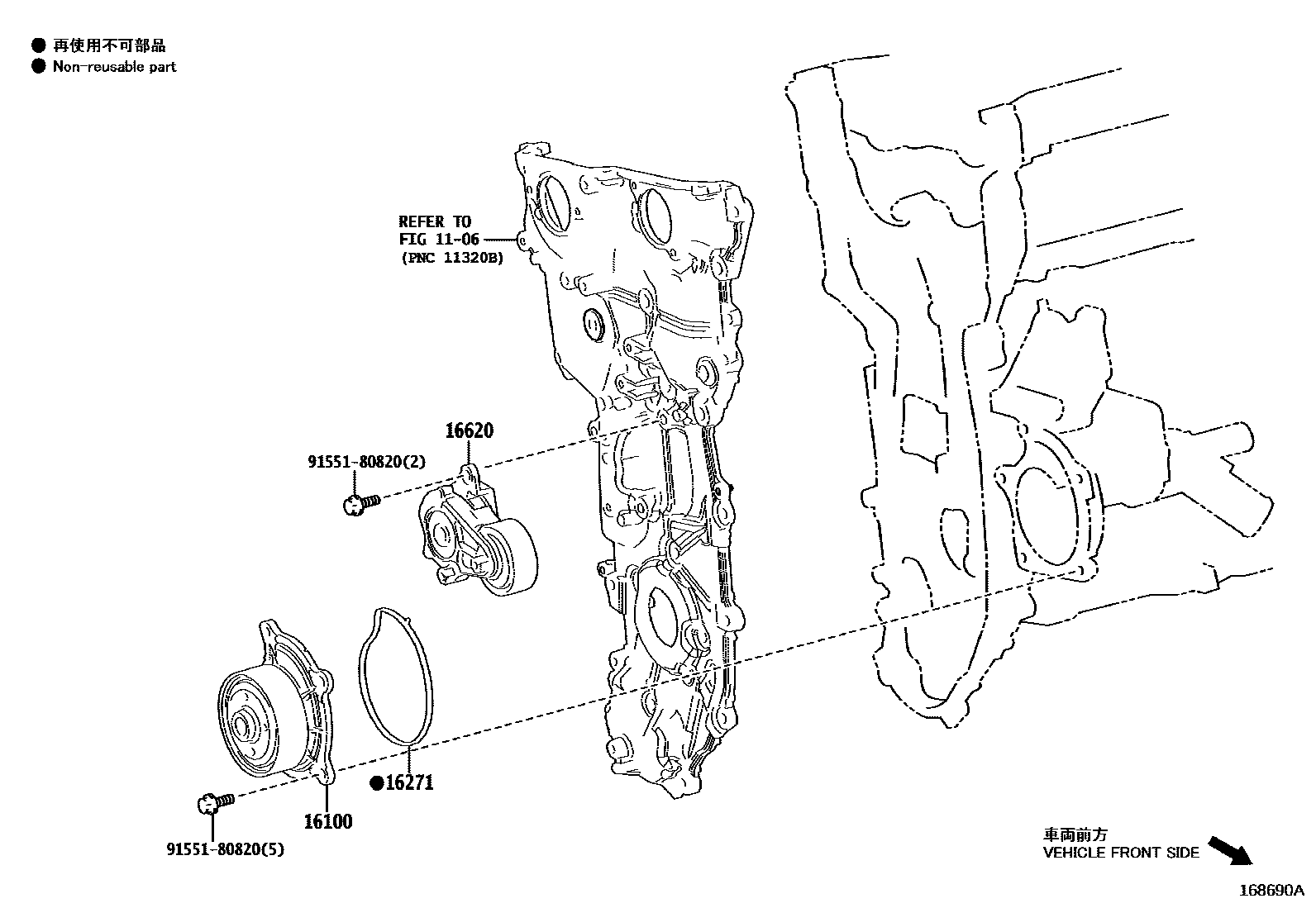

Toyota HIGHLANDER (CHINA) — WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-25030iS20AFTS..SXUA75¥10,500202209-202405

16271GASKET, WATER PUMP

main16271-25020iS20AFTS..SXUA75¥590202209-202405

16620TENSIONER ASSY, V-RIBBED BELT

main16620-25060iS20AFTS..SXUA75202209-202405

9155180820

main91551-80820¥80

5 parts on this diagram · 1 diagram in section
