Toyota HIGHLANDER (CHINA) — SHORT BLOCK ASSEMBLY

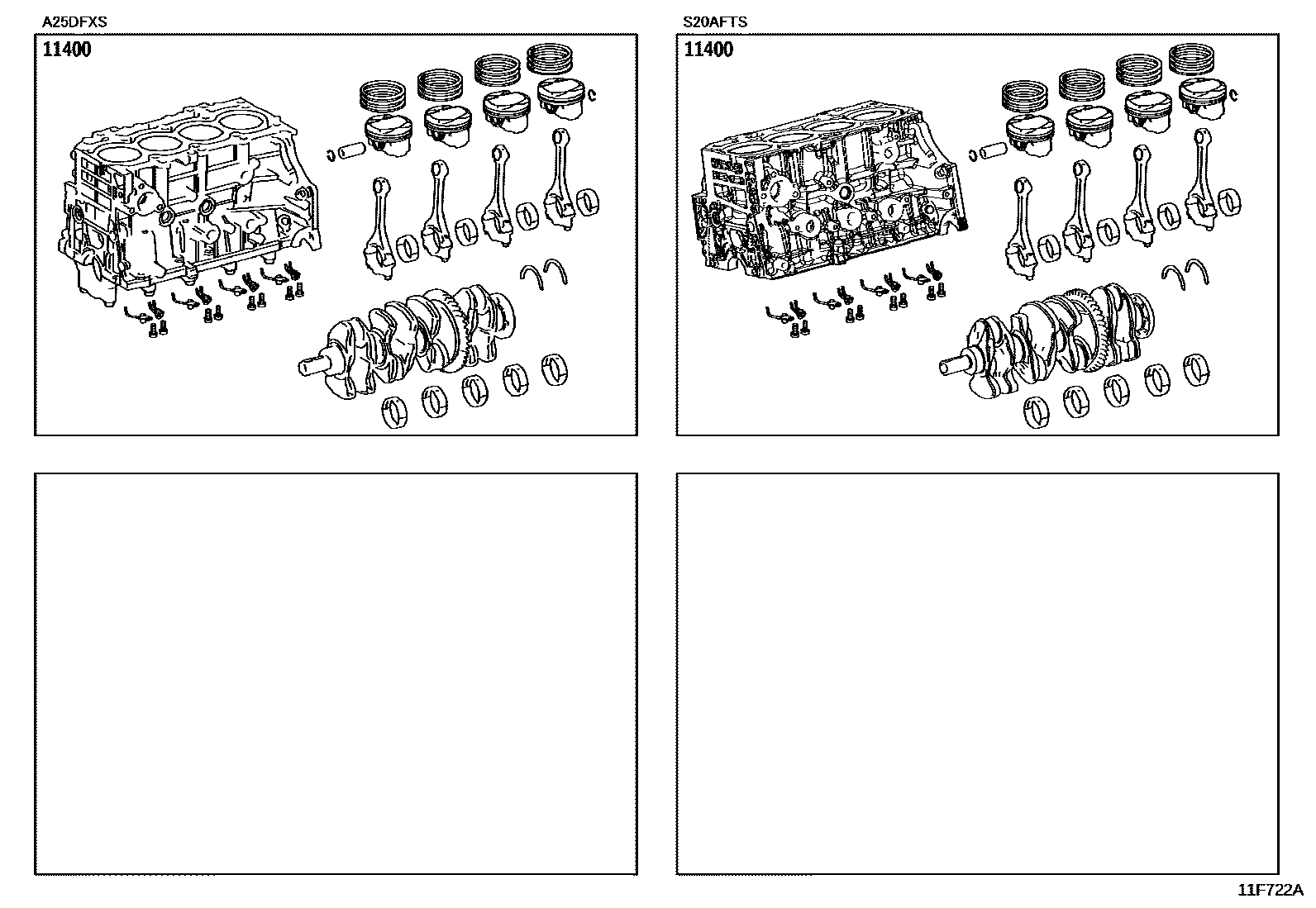

Parts diagram

11400BLOCK ASSY, SHORT

main11400-25180i202209-202405

main11400-F0080i202108-202405

1 parts on this diagram · 1 diagram in section
