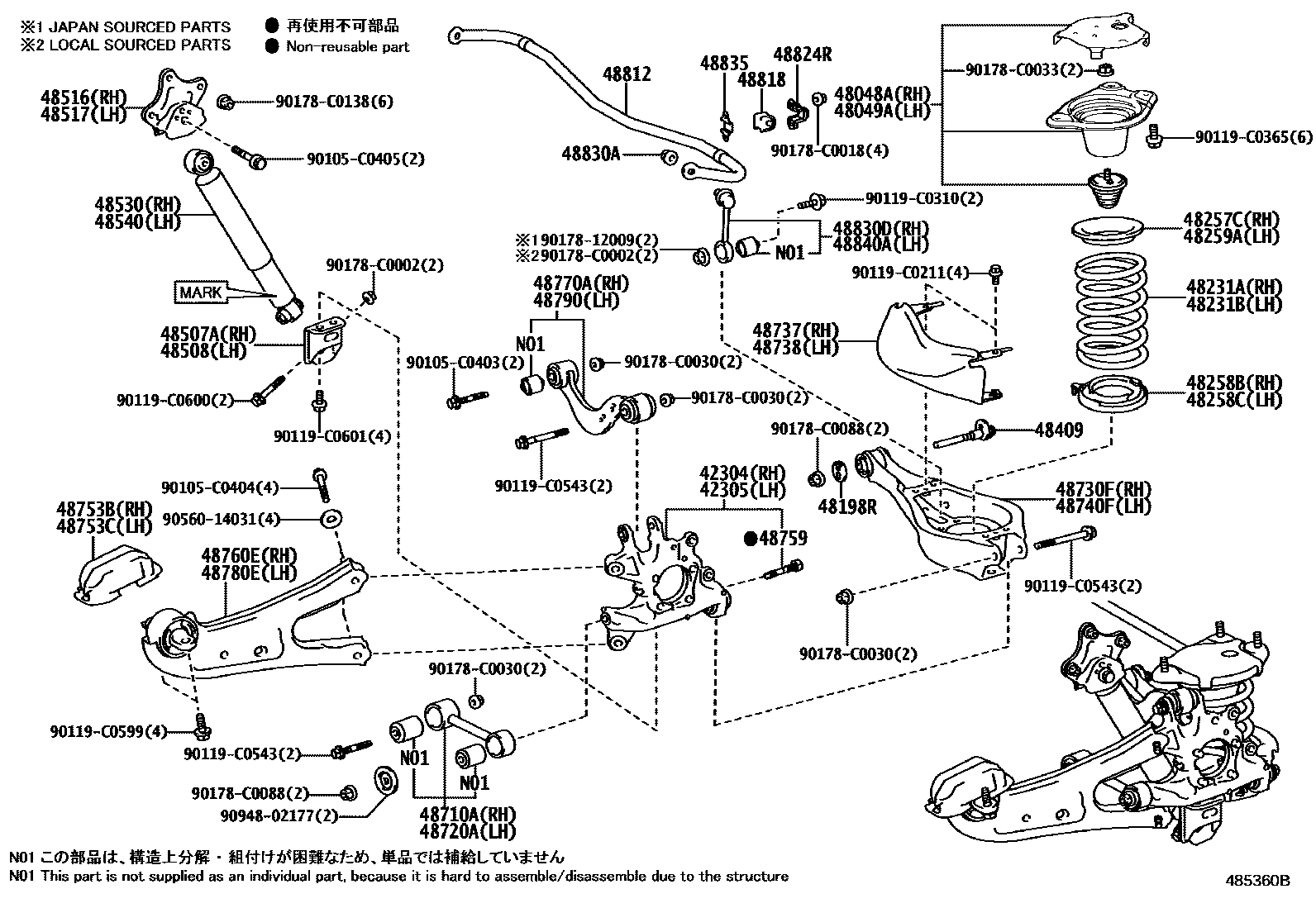

Toyota HIGHLANDER (CHINA) — REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48048ASEAT SUB-ASSY, SPRING, RH
48049ASEAT SUB-ASSY, SPRING, LH
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH
48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-0E460
MARK 48531-0E460
MARK 48531-0E470
MARK 48531-0E470
MARK 48531-0E480
MARK 48531-0E480
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-0E460
MARK 48531-0E460
MARK 48531-0E470
MARK 48531-0E470
MARK 48531-0E480
MARK 48531-0E480
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48759PIN, LOWER CONTROL ARM
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48824RBRACKET, STABILIZER(FOR REAR)
48830ANUT(FOR REAR STABILIZER LINK)
(L)
(L)
(J)
(J)
48830DLINK ASSY, REAR STABILIZER, RH
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
90105C0403
main90105-C0403
90105C0404
main90105-C0404
90105C0405
main90105-C0405
90119C0211
main90119-C0211
90119C0310
main90119-C0310
90119C0365
main90119-C0365
90119C0543
main90119-C0543
90119C0599
main90119-C0599
90119C0600
main90119-C0600
90119C0601
main90119-C0601
9017812009
90178C0002
main90178-C0002
90178C0018
main90178-C0018
90178C0030
main90178-C0030
90178C0033
main90178-C0033
90178C0088
main90178-C0088
90178C0138
main90178-C0138
9056014031
9094802177
57 parts on this diagram · 1 diagram in section
