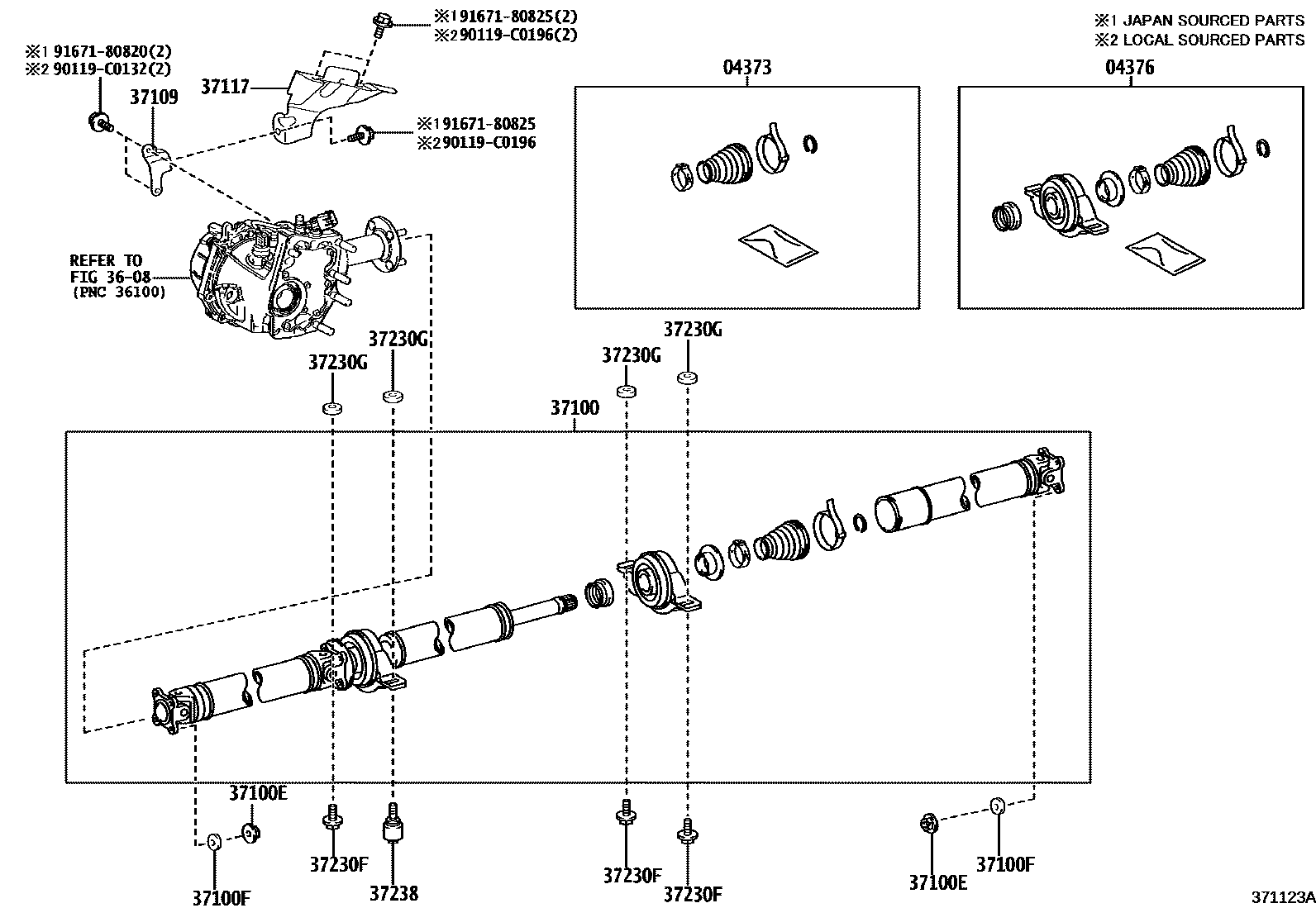

Toyota HIGHLANDER (CHINA) — PROPELLER SHAFT & UNIVERSAL JOINT
04376BEARING KIT, CENTER SUPPORT
3608
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
(J)
(L)
37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1
37117INSULATOR, PROPELLER SHAFT HEAT
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
(J)
(L)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=6.5
T=9.0
T=2.0
37238DAMPER, CENTER SUPPORT BEARING
90119C0132
main90119-C0132
90119C0196
main90119-C0196
9167180820
9167180825
15 parts on this diagram · 1 diagram in section
