Toyota HIGHLANDER (CHINA) — PARTIAL ENGINE ASSEMBLY

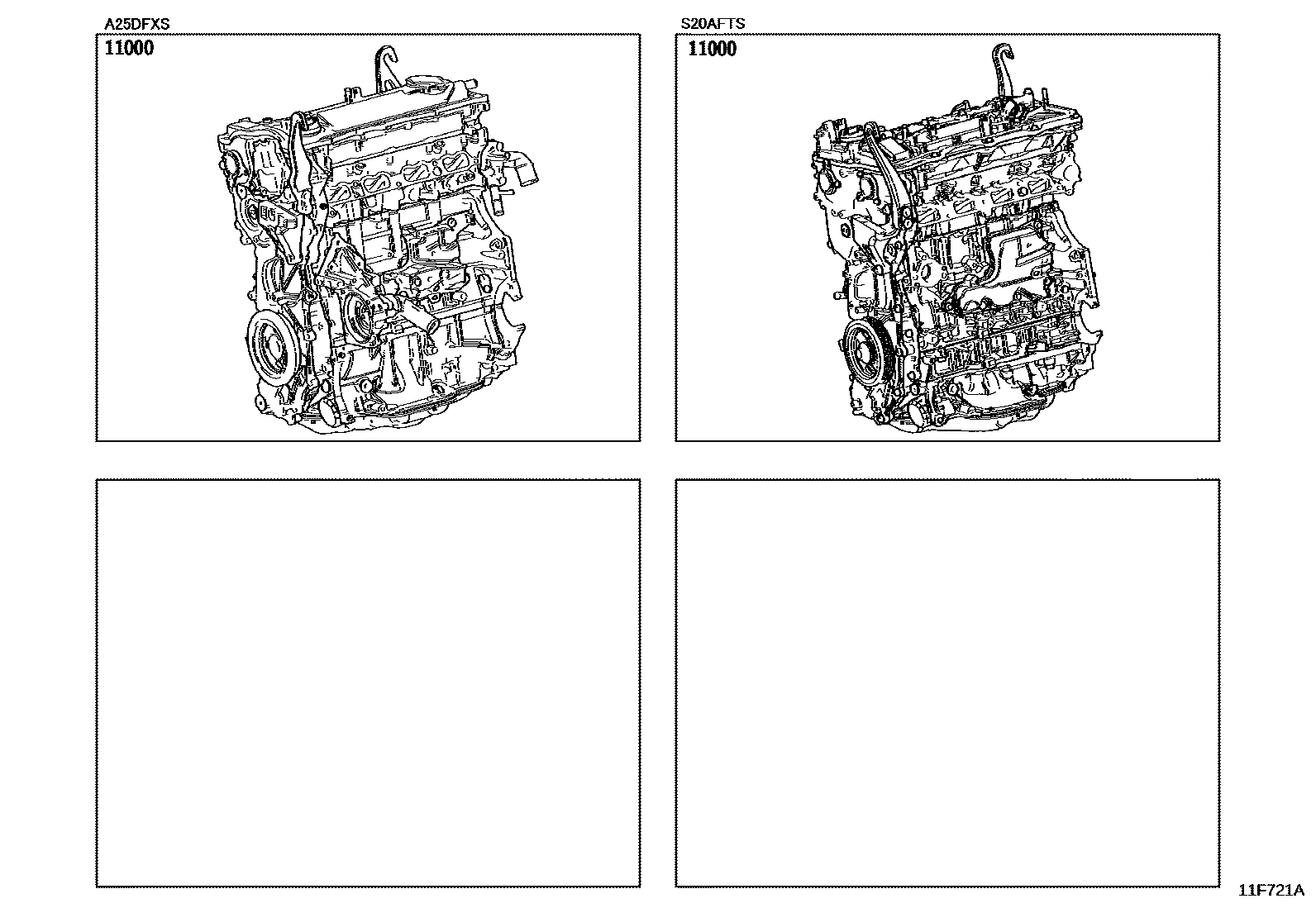

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-25430i202209-202405

main19000-25430i202405

main19000-F0100i202108-202405

main19000-F0100i202405

1 parts on this diagram · 1 diagram in section
