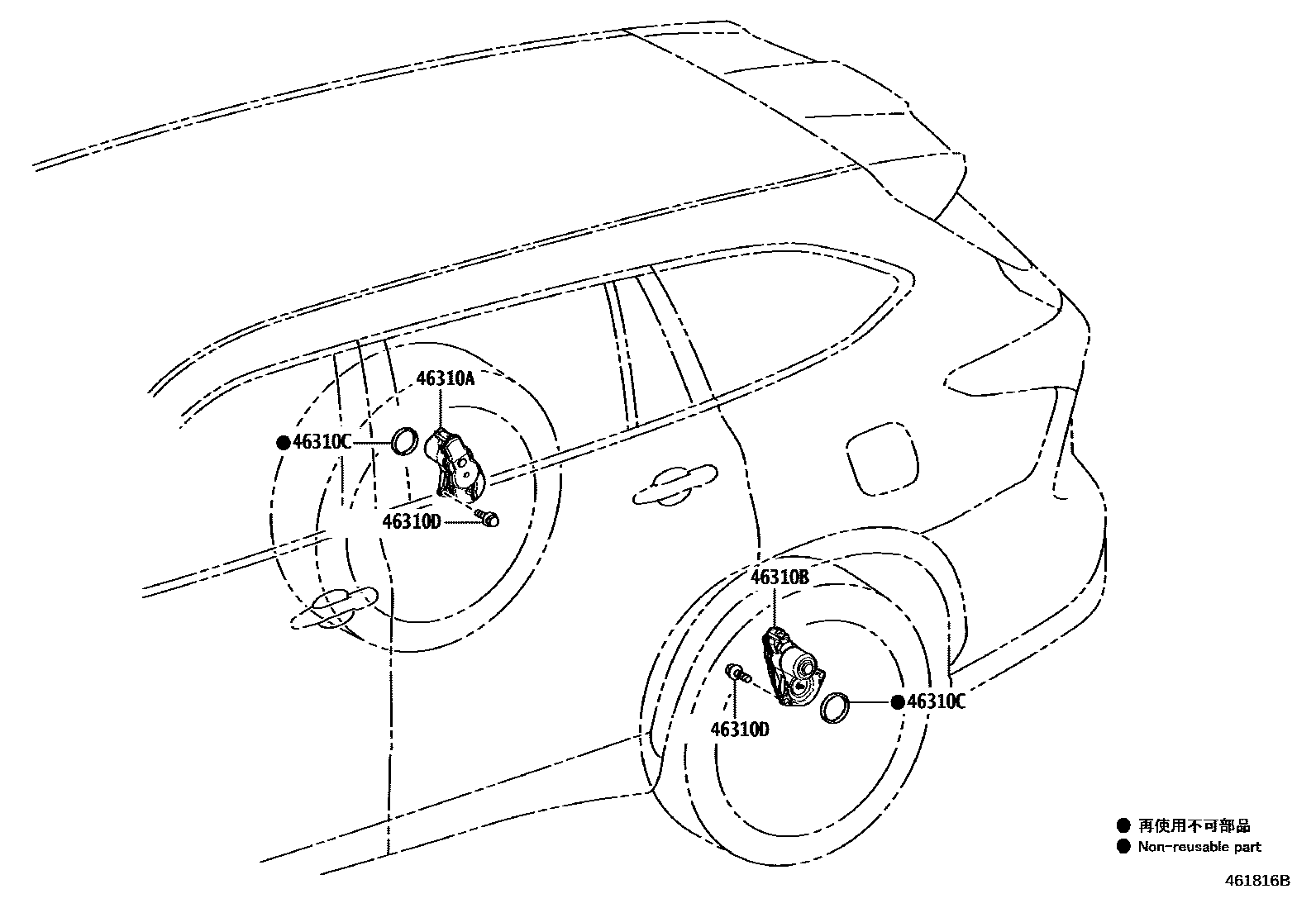

Toyota HIGHLANDER (CHINA) — PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-07010iAXUH7#,SXUA75202108-202405

main46310-07010iAXUH7#,SXUA75202405

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-07010iAXUH7#,SXUA75202108-202405

main46310-07010iAXUH7#,SXUA75202405

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005iAXUH7#,SXUA75¥130202108-202405

main90015-AH005iAXUH7#,SXUA75¥130202405

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90016-AA702iAXUH7#,SXUA75202108-202405

main90016-AA702iAXUH7#,SXUA75202405

4 parts on this diagram · 1 diagram in section
