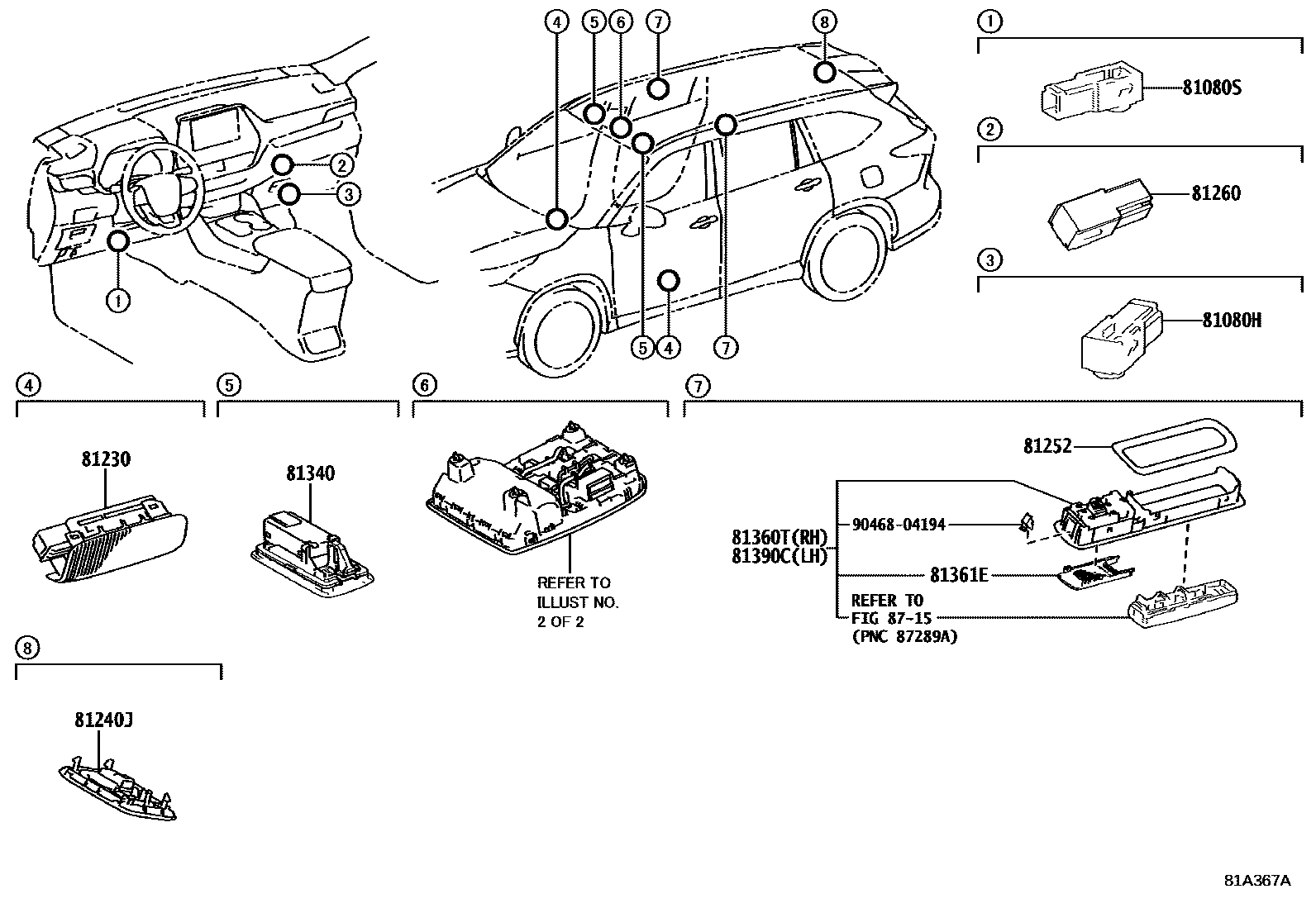

Toyota HIGHLANDER (CHINA) — INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-06180iAXUH79,SXUA75..G202108-202509

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-06180iAXUH79,SXUA75..G202108-202509

81230LAMP ASSY, COURTESY

main81230-0E030iAXUH7#,SXUA75202108-202405

main81230-0E031iAXUH7#,SXUA75202405

81240JLAMP ASSY, ROOM

main81240-0E020-B0iSXUA75;AXUH7#..G,M202108-202405

LT.GRAY,TRIM2#,4#

main81240-0E020-B0iAXUH7#..N202108-202405

LT.GRAY,TRIM2#

main81240-0E021-B0iAXUH7#,SXUA75..G,M202405

LT.GRAY,TRIM2#

main81240-0E021-B0iAXUH7#,SXUA75..G,M202405

LT.GRAY,TRIM0#,2#,4#

81252PACKING, ROOM LAMP

main55871-0E020iAXUH7#,SXUA75202108-202405

81260LAMP ASSY, GLOVE BOX

main81080-0N020iAXUH7#,SXUA75202108-202405

81340LAMP ASSY, VANITY

main81340-0E010iAXUH7#,SXUA75202108-202405

81360TLAMP ASSY, SPOT

main81360-0E090-B0iAXUH7#..N202108-202405

LT.GRAY,TRIM2#

main81360-0E090-B0iAXUH7#..N202108-202405

LT.GRAY,TRIM2#,4#

main81360-0E200-B0iSXUA75..N202405

LT.GRAY,TRIM2#,4#

main81360-0E200-B0iAXUH7#..N202405

LT.GRAY,TRIM2#

main81360-0E200-B0iAXUH7#..N202405

LT.GRAY,TRIM0#,2#,4#

81361ELENS, SPOT LAMP, NO.2

main81361-0E030iAXUH7#,SXUA75202108-202405

81390CLAMP ASSY, SPOT, LH

main81390-0E050-B0iAXUH7#..N202108-202405

LT.GRAY,TRIM2#

main81390-0E050-B0iAXUH7#..N202108-202405

LT.GRAY,TRIM2#,4#

main81390-0E110-B0iAXUH7#..N202405

LT.GRAY,TRIM2#

main81390-0E110-B0iAXUH7#..N202405

LT.GRAY,TRIM0#,2#,4#

main81390-0E110-B0iAXUH7#..N202405

LT.GRAY,TRIM2#,4#

8715

9046804194

main90468-04194¥180

12 parts on this diagram · 2 diagrams in section
