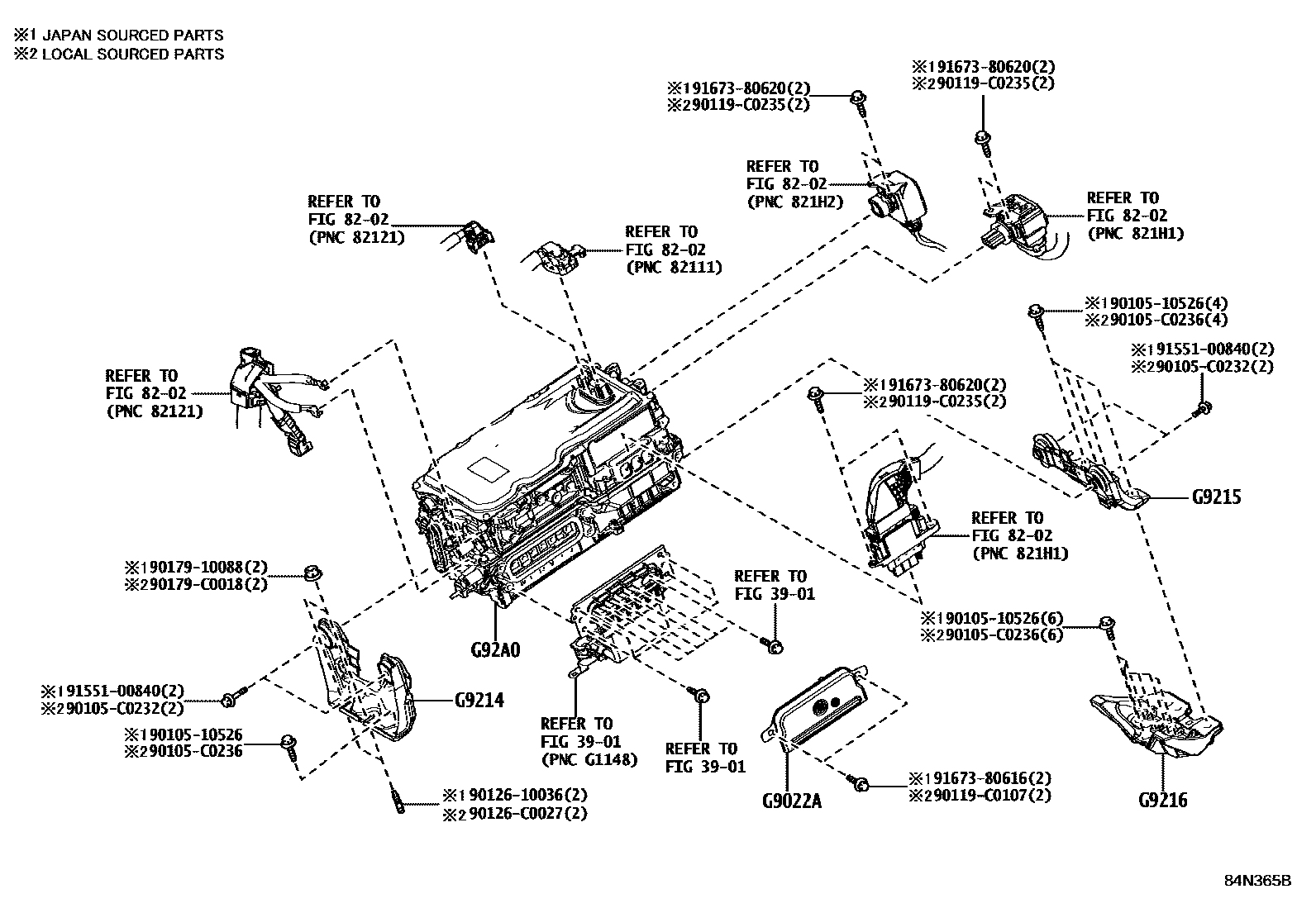

Toyota HIGHLANDER (CHINA) — HEV INVERTER

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAXUH7#202108-202405

G9214BRACKET, INVERTER, NO.1

mainG92140E010iAXUH7#202108-202405

G9215BRACKET, INVERTER, NO.2

mainG92150E010iAXUH7#202108-202405

G9216BRACKET, INVERTER, NO.3

mainG92160E030iAXUH7#202108-202405

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A008073iAXUH71202405

mainG92A00E050iAXUH79202108-202303

subG92A0-0E051

mainG92A00E051iAXUH79202304-202309

subG92A0-0E052

mainG92A00E052iAXUH79202310-202405

mainG92A00E060iAXUH71202108-202303

subG92A0-0E061

mainG92A00E061iAXUH71202304-202309

subG92A0-0E062

mainG92A00E062iAXUH71202310-202405

mainG92A00E130iAXUH79202405

9010510526

main90105-10526¥100

90105C0232

main90105-C0232

90105C0236

main90105-C0236

90119C0107

main90119-C0107

90119C0235

main90119-C0235

9012610036

main90126-10036¥100

90126C0027

main90126-C0027

9017910088

main90179-10088¥100

90179C0018

main90179-C0018

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

19 parts on this diagram · 1 diagram in section
