Toyota HIGHLANDER (CHINA) — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E180iAXUH7#,SXUA75202108-202405

67001ACUSHION, FRONT DOOR PANEL

main90541-C0003iAXUH7#,SXUA75202108-202405

67001CGROMMET(FOR FRONT DOOR PANEL)

main90189-06227iAXUH7#,SXUA75¥70202108-202405

(J),GREEN

main90189-06245iAXUH7#,SXUA75¥70202108-202509

PINK

main90189-C0033iAXUH7#,SXUA75202111-202405

(L),GREEN

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E160iAXUH7#,SXUA75202108-202405

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0E110iAXUH7#,SXUA75202108-202405

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0E100iAXUH7#,SXUA75202108-202405

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E110iAXUH7#,SXUA75202108-202405

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-F4030iAXUH7#,SXUA75202108-202405

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E110iAXUH7#,SXUA75202108-202405

67837ASEAL, FRONT DOOR VENT, RH

main67837-0E130iAXUH7#,SXUA75202108-202405

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02230iAXUH7#,SXUA75202108-202405

67838ASEAL, FRONT DOOR VENT, LH

main67838-0E040iAXUH7#,SXUA75202108-202405

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0E070iAXUH7#,SXUA75202108-202405

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0E060iAXUH7#,SXUA75202108-202405

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E110iAXUH7#,SXUA75202108-202405

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150iAXUH7#,SXUA75¥100202108-202405

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E110iAXUH7#,SXUA75202108-202405

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070iAXUH7#,SXUA75202207-202405

(L)

main67867-12150iAXUH7#,SXUA75¥100202207-202405

(J)

main67867-12150iAXUH7#¥100202108-202207

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-0D070iAXUH7#,SXUA75202207-202405

(L)

main67867-12150iAXUH7#,SXUA75¥100202207-202405

(J)

main67867-12150iAXUH7#¥100202108-202207

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E150iAXUH7#,SXUA75202108-202509

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E150iAXUH7#,SXUA75202108-202509

68141CRUN, FRONT DOOR GLASS, RH

main68141-0E100iAXUH7#,SXUA75202108-202405

68151DRUN, FRONT DOOR GLASS, LH

main68151-0E100iAXUH7#,SXUA75202108-202405

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0E130iAXUH7#,SXUA75202108-202404

sub68610-0E131

main68610-0E131iAXUH7#,SXUA75202405

68620CHECK ASSY, FRONT DOOR, LH

main68620-0E130iAXUH7#,SXUA75202108-202404

sub68620-0E131

main68620-0E131iAXUH7#,SXUA75202405

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-0E080iAXUH7#,SXUA75202108-202405

0 OR 1PIECE,REF.ILL.

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-0E080iAXUH7#,SXUA75202108-202405

0 OR 1PIECE,REF.ILL.

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E060iAXUH7#,SXUA75202108-202405

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E060iAXUH7#,SXUA75202108-202405

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90159C0006

main90159-C0006

90178C0032

main90178-C0032

9033320001

main90333-20001¥70

9033340001

main90333-40001¥100

90333C0005

main90333-C0005

90467C0033

main90467-C0033

9095001911

main90950-01911¥50

9095001919

main90950-01919¥100

90950C1011

main90950-C1011

90950C1022

main90950-C1022

90950C1029

main90950-C1029

90950C1036

main90950-C1036

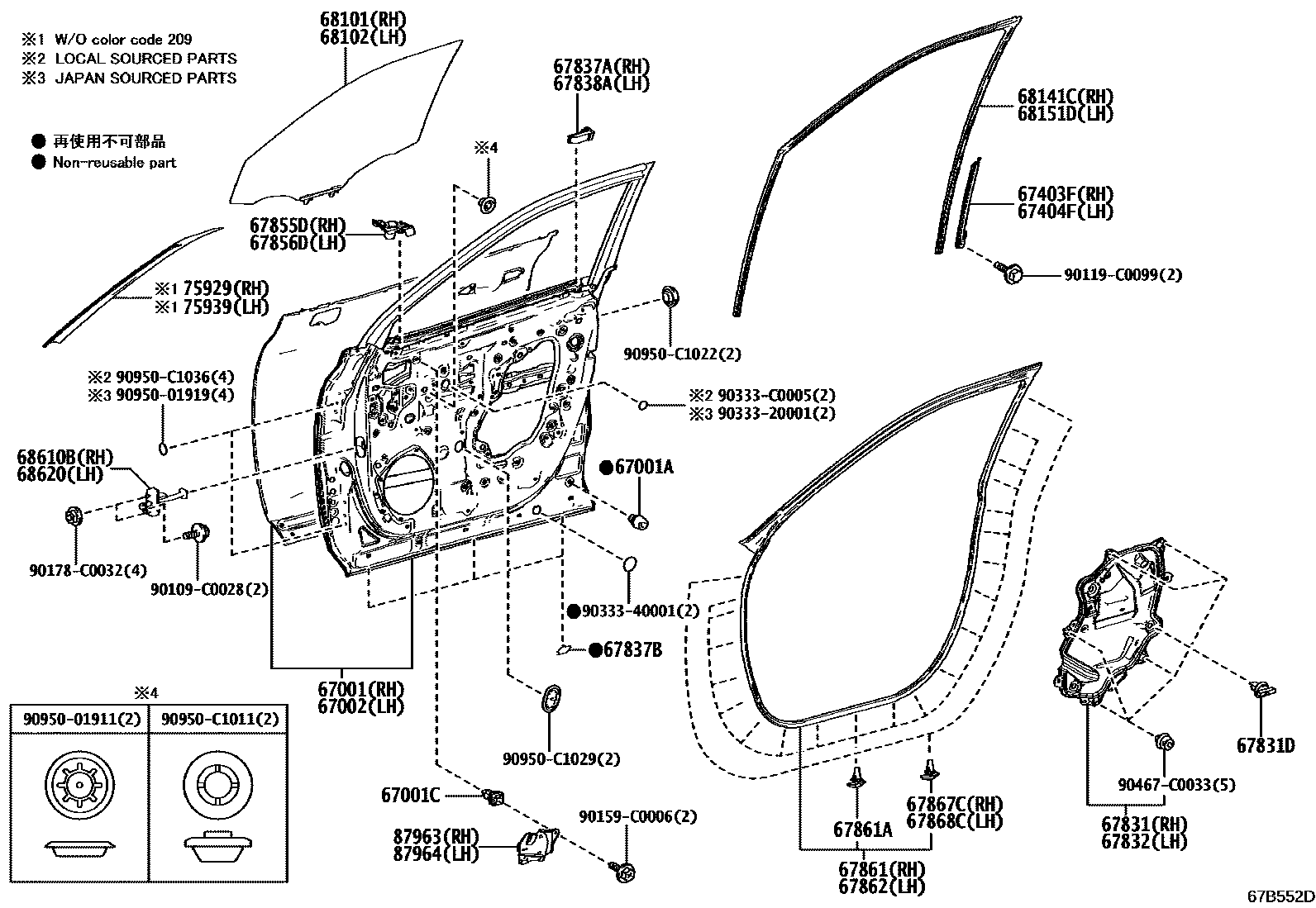

43 parts on this diagram · 2 diagrams in section
