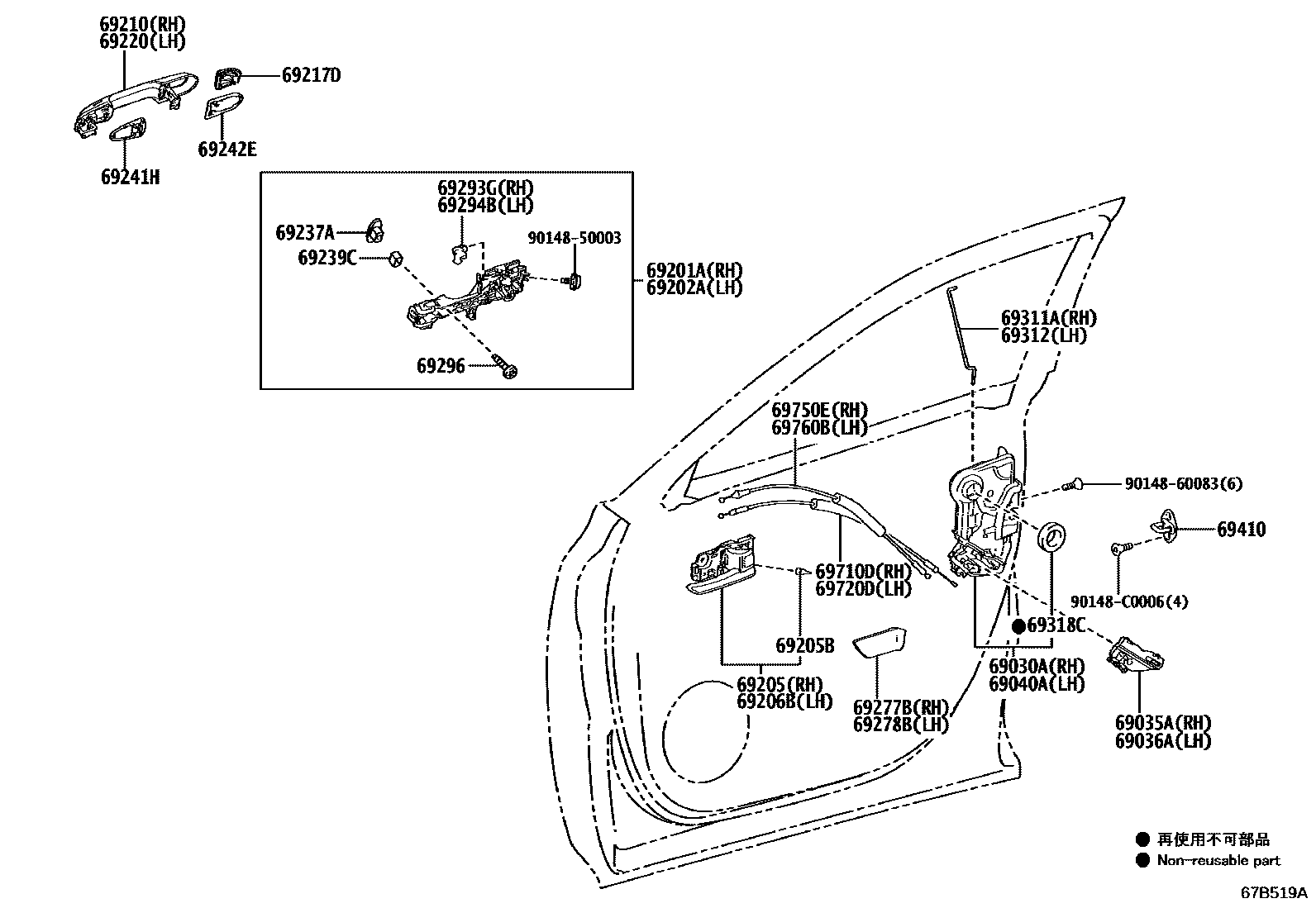

Toyota HIGHLANDER (CHINA) — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BASE+ PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
BASE+ PACKAGE,(L)
(L)
(J)
BASE+ PACKAGE,(J)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BASE+ PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
9014860083
90148C0006
main90148-C0006
32 parts on this diagram · 1 diagram in section
