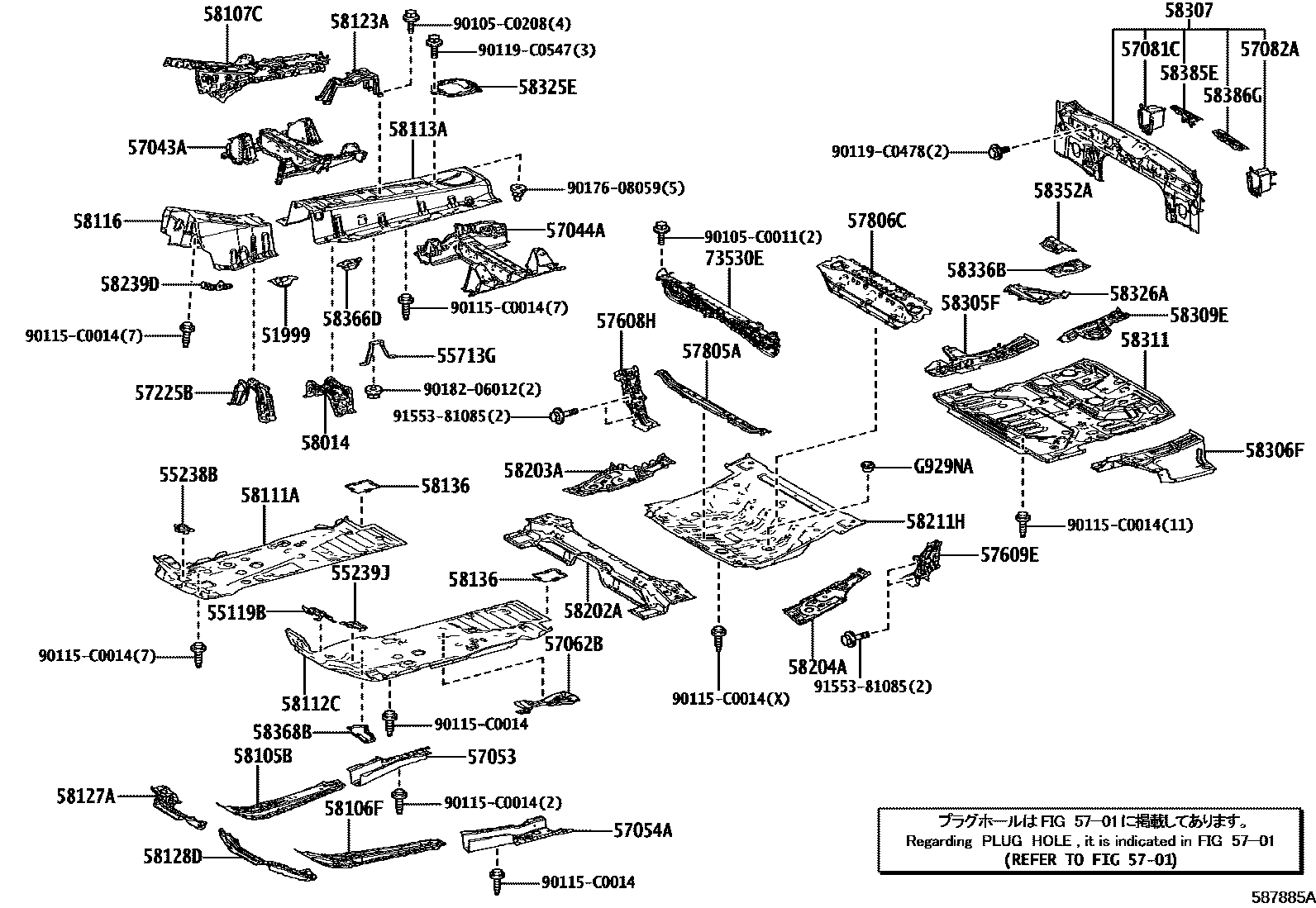

Toyota HIGHLANDER (CHINA) — FLOOR PAN & LOWER BACK PANEL
51999HANGER, EXHAUST PIPE SUPPORT, NO.7
55119BEXTENSION, DASH PANEL, LH
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
55713GBRACKET, FRONT LOWER PANEL
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57081CBRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
57082ABRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57225BBRACE, FRONT MOUNTING BRACKET
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57806CREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58107CANGLE SUB-ASSY, FRONT FLOOR
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58116PLATE, SHIFT CABLE MOUNTING
58123ASUPPORT, SHIFT & SELECT LEVER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58239DBRACKET, CABLE CLAMP
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58352ABRACKET, REAR FLOOR STAY
58366DREINFORCEMENT, FUEL TANK SUPPORT, REAR
58368BBRACKET, FUEL TUBE, NO.2
58385EBRACKET, REAR BUMPER COVER, RH
58386GBRACKET, REAR BUMPER COVER, LH
73530EPANEL ASSY, REAR SEAT SUB FLOOR
90105C0011
main90105-C0011
90105C0208
main90105-C0208
90115C0014
main90115-C0014
90119C0478
main90119-C0478
90119C0547
main90119-C0547
9017608059
9018206012
9155381085
58 parts on this diagram · 2 diagrams in section
