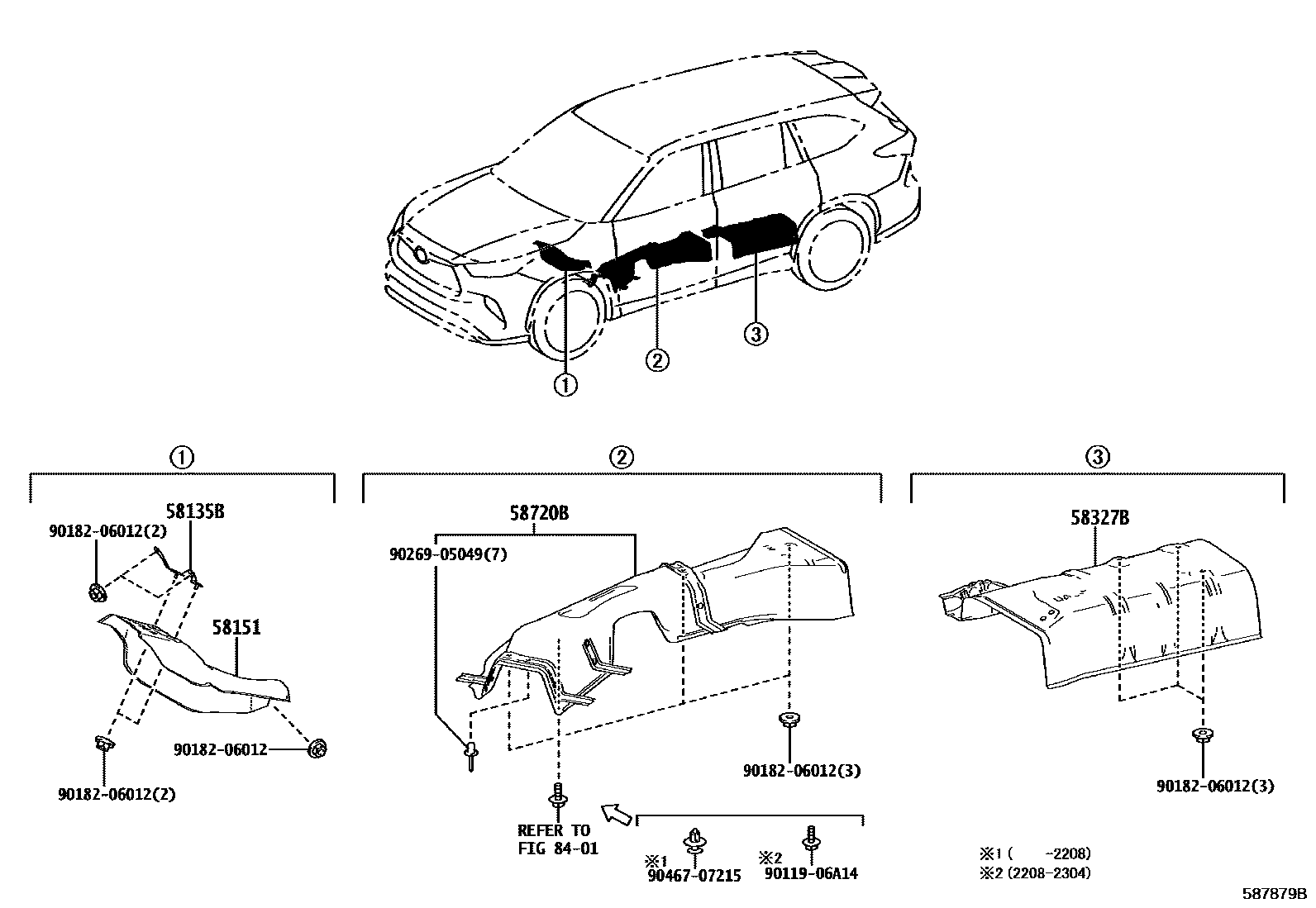

Toyota HIGHLANDER (CHINA) — FLOOR INSULATOR

0001 1 0002 1

58135BBRACKET, FLOOR INSULATOR SUPPORT

main58135-0E040iAXUH7#202108-202405

main58135-0E040iAXUH7#202405

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0E090iAXUH7#202108-202405

main58151-0E090iAXUH7#202405

main58151-0E130iSXUA75202405

main58151-0E130iSXUA75202209-202405

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0E080iAXUH7#202108-202405

main58327-0E080iAXUH7#202405

58720BCOVER ASSY, ENGINE SERVICE

main58720-0E050iAXUH7#202108-202208

main58720-0E051iAXUH7#202208-202304

main58720-0E091iSXUA75202209-202405

main58720-0E091iSXUA75202405

main58720-0E150iAXUH7#202304-202405

main58720-0E150iAXUH7#202405

8401

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9026905049

main90269-05049¥40

9046707215

main90467-07215¥80

9 parts on this diagram · 2 diagrams in section
