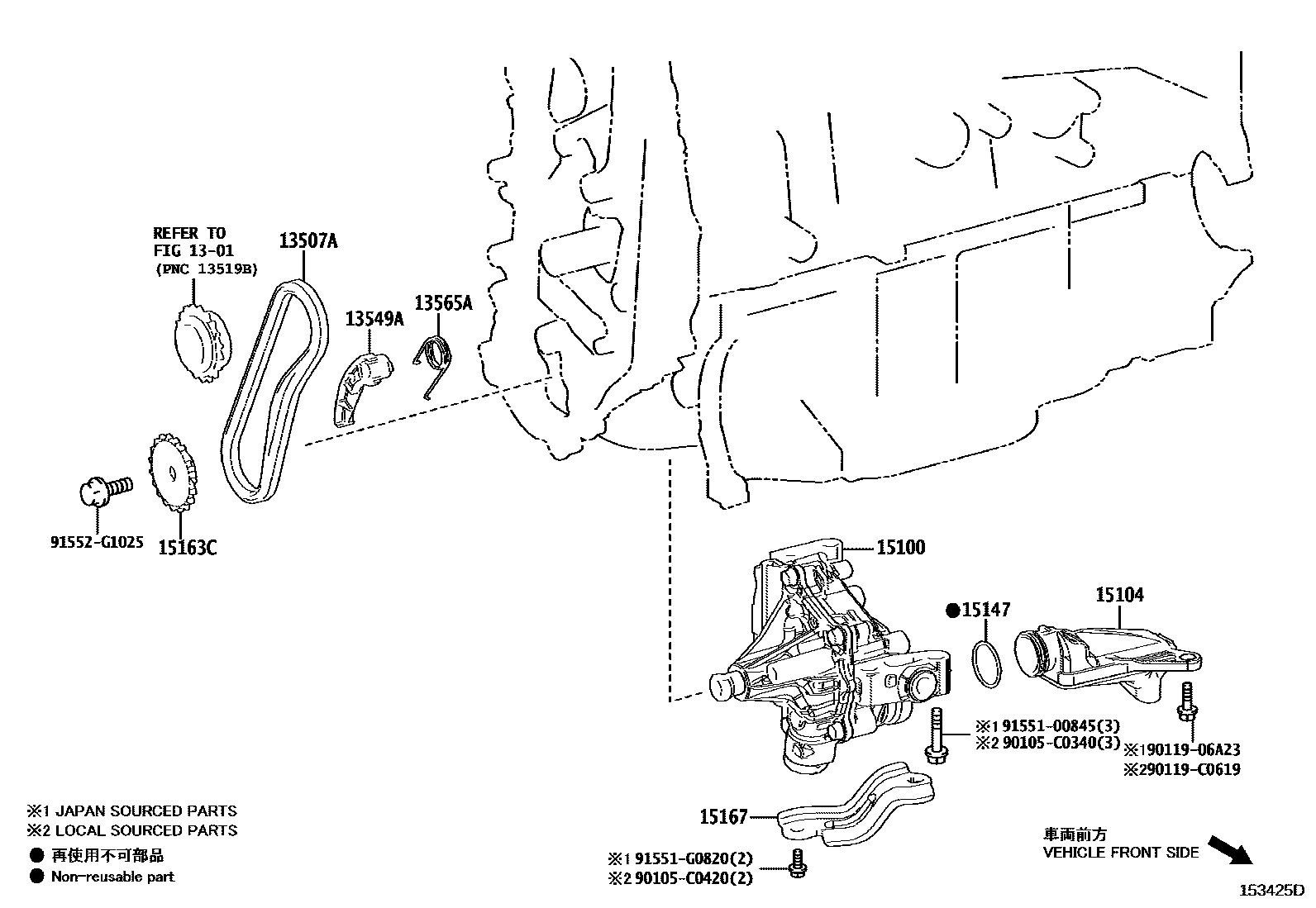

Toyota HIGHLANDER (CHINA) — ENGINE OIL PUMP

0001 1 0002 1

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-25030iS20AFTS..SXUA75¥4,490202209-202405

main13507-F0020iA25DFXS..AXUH7#202108-202405

13549APLATE, CHAIN TENSIONER

main13549-25020iS20AFTS..SXUA75¥550202209-202405

main13549-F2020iA25DFXS..AXUH7#202108-202405

13565ASPRING, CHAIN DAMPER

main13565-25010iS20AFTS..SXUA75¥220202209-202405

main13565-F2020iA25DFXS..AXUH7#202108-202405

15100PUMP ASSY, OIL

main15100-25070iS20AFTS..SXUA75¥12,600202209-202405

main15100-F0020iA25DFXS..AXUH7#202108-202405

15104STRAINER SUB-ASSY, OIL

main15104-25040iS20AFTS..SXUA75¥1,200202209-202405

main15104-F0020iA25DFXS..AXUH7#202108-202405

15147GASKET, OIL STRAINER

main15147-25030iS20AFTS..SXUA75¥340202209-202405

main15147-F2010iA25DFXS..AXUH7#202108-202405

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25030iS20AFTS..SXUA75¥660202209-202405

main15163-F2020iA25DFXS..AXUH7#202108-202405

15167BRACKET, OIL PUMP

main15167-F0010iA25DFXS..AXUH7#202108-202405

90105C0340

main90105-C0340

90105C0420

main90105-C0420

9011906A23

main90119-06A23¥60

90119C0619

main90119-C0619

9155100845

main91551-00845¥100

91551G0820

main91551-G0820¥80

91552G1025

main91552-G1025¥170

16 parts on this diagram · 2 diagrams in section
