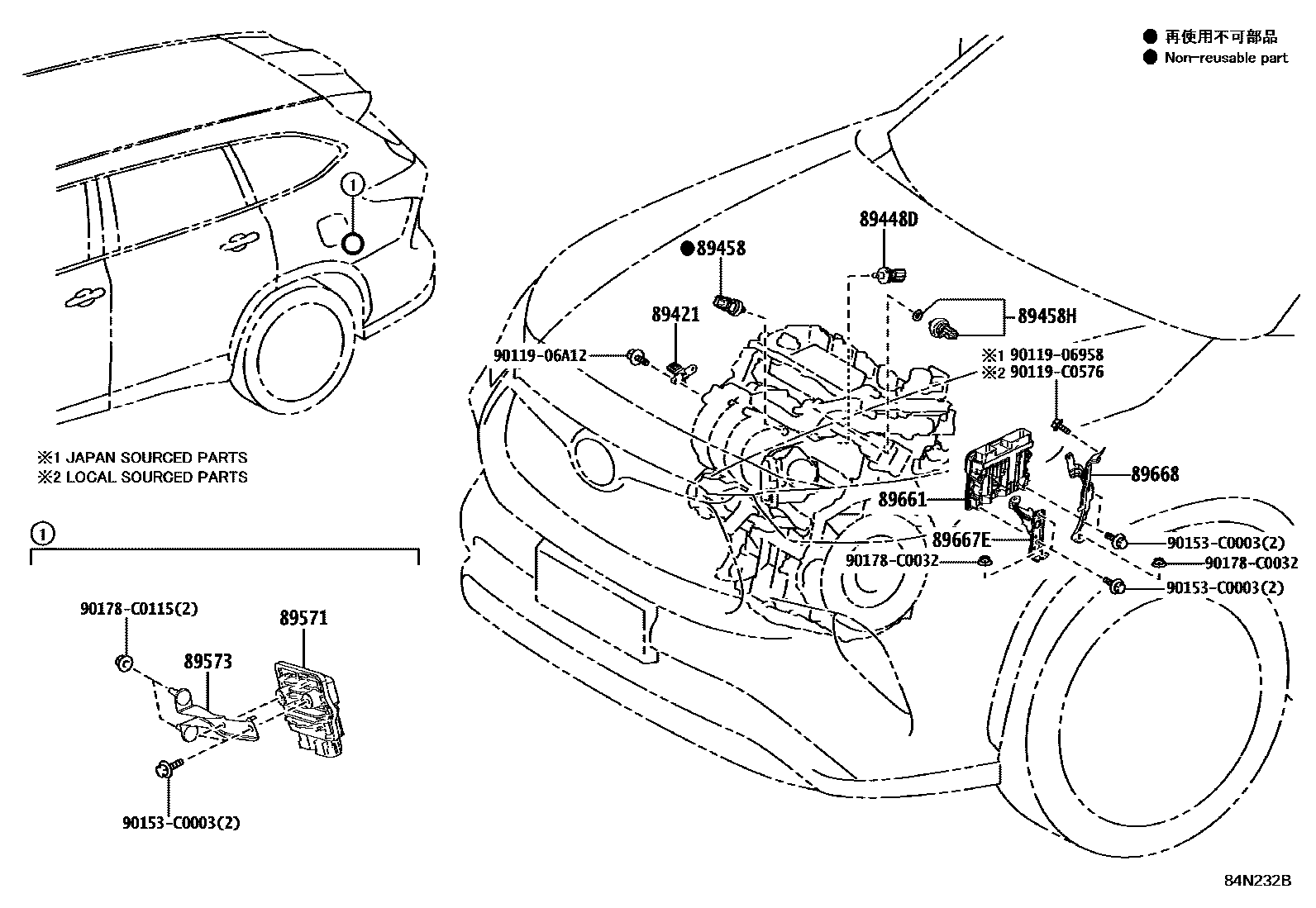

Toyota HIGHLANDER (CHINA) — ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89448DSENSOR, OIL PRESSURE & TEMPERATURE
(L)
(J)
89458SENSOR, FUEL PRESSURE
(L)
(J)
89458HSENSOR, FUEL PRESSURE, NO.2
(L)
(J)
89571COMPUTER, FUEL PUMP CONTROL
P/N LABEL=8957110010
P/N LABEL=8957142010
89573BRACKET, FUEL PUMP CONTROL COMPUTER
89661COMPUTER, ENGINE CONTROL
DENSO,*614
DENSO
DENSO,*614
DENSO
*614
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906958
9011906A12
90119C0576
main90119-C0576
90153C0003
main90153-C0003
90178C0032
main90178-C0032
90178C0115
main90178-C0115
15 parts on this diagram · 2 diagrams in section
