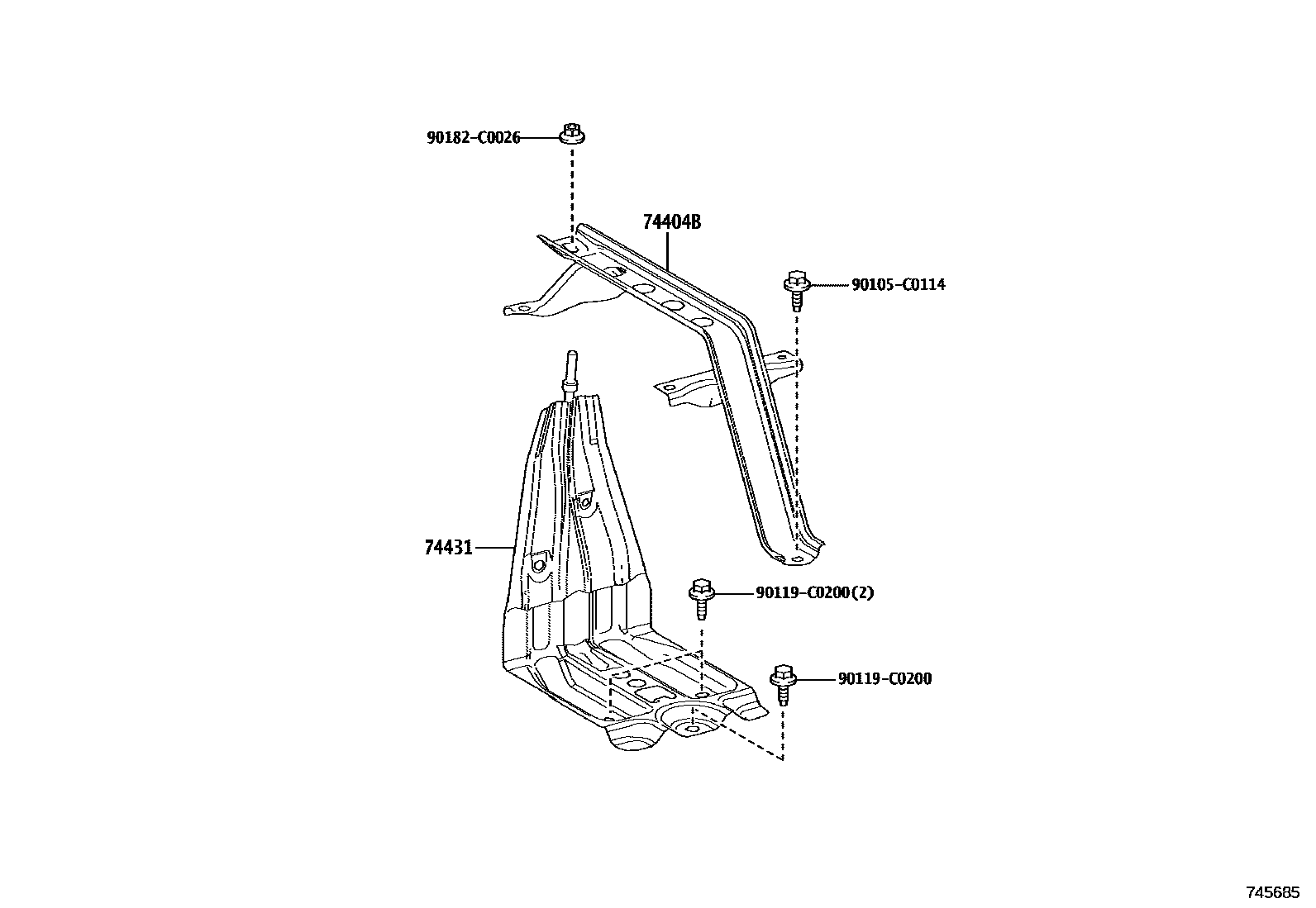

Toyota HIGHLANDER (CHINA) — BATTERY CARRIER

0001 1 0002 1

74404BCLAMP SUB-ASSY, BATTERY

main74404-06210iSXUA75202209-202405

main74404-0E100iAXUH7#202108-202405

74431TRAY, BATTERY

main74440-0E020iAXUH7#202108-202405

90105C0114

main90105-C0114

90119C0200

main90119-C0200

90182C0026

main90182-C0026

5 parts on this diagram · 2 diagrams in section
