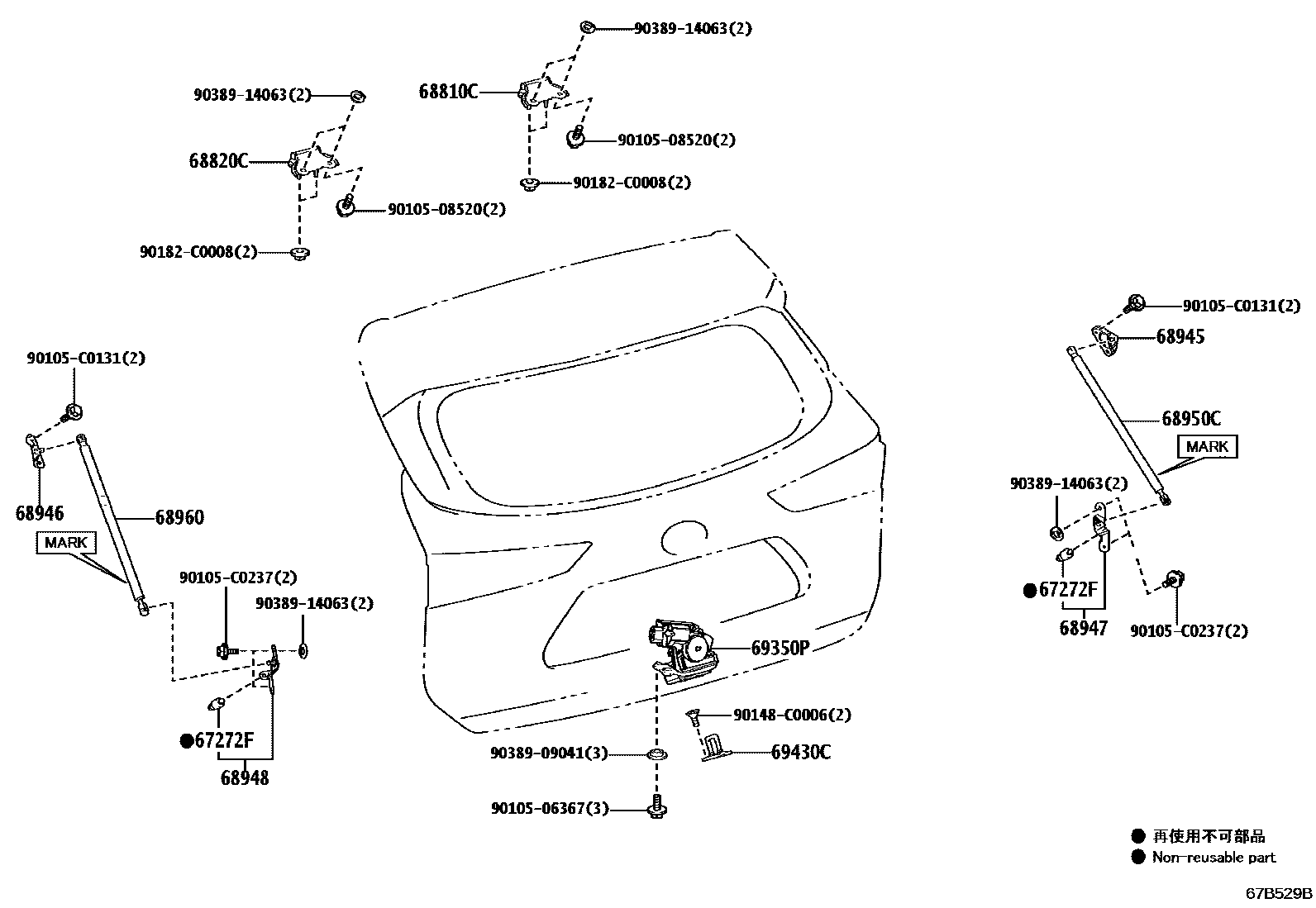

Toyota HIGHLANDER (CHINA) — BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

67272FCUSHION, BACK DOOR STOPPER, NO.2

main69477-0E050iAXUH7#,SXUA75202405

main69477-0E050iAXUH7#,SXUA75202108-202405

68810CHINGE ASSY, BACK DOOR, RH

main68810-0E340iAXUH7#,SXUA75202108-202405

PAD T=1.0

main68810-0E340iAXUH7#,SXUA75202405

PAD T=1.0

main68810-0E350iAXUH7#,SXUA75202405

PAD T=1.5

main68810-0E350iAXUH7#,SXUA75202108-202405

PAD T=1.5

main68810-0E360iAXUH7#,SXUA75202108-202405

PAD T=2.0

main68810-0E360iAXUH7#,SXUA75202405

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68820-0E280iAXUH7#,SXUA75202108-202405

PAD T=1.0

main68820-0E280iAXUH7#,SXUA75202405

PAD T=1.0

main68820-0E290iAXUH7#,SXUA75202405

PAD T=1.5

main68820-0E290iAXUH7#,SXUA75202108-202405

PAD T=1.5

main68820-0E300iAXUH7#,SXUA75202108-202405

PAD T=2.0

main68820-0E300iAXUH7#,SXUA75202405

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0E110iAXUH7#,SXUA75..N202108-202405

main68945-0E110iAXUH7#,SXUA75..N202405

main68945-0E140iAXUH7#,SXUA75..G,M202405

main68945-0E140iAXUH7#,SXUA75..G,M202108-202405

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0E110iAXUH7#,SXUA75..N202405

main68946-0E110iAXUH7#,SXUA75..N202108-202405

main68946-0E120iAXUH7#,SXUA75..G,M202405

main68946-0E120iAXUH7#,SXUA75..G,M202108-202405

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0E080iAXUH7#,SXUA75202405

main68947-0E080iAXUH7#,SXUA75202108-202405

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0E080iAXUH7#,SXUA75..G,M202405

main68948-0E080iAXUH7#,SXUA75202108-202405

68950CSTAY ASSY, BACK DOOR, RH

main68950-0E180iAXUH7#,SXUA75..N202108-202405

main68950-0E180iAXUH7#,SXUA75..N202405-202509

68960STAY ASSY, BACK DOOR, LH

main68950-0E180iAXUH7#,SXUA75..N202108-202405

main68950-0E180iAXUH7#,SXUA75..N202405-202509

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0E180iAXUH7#,SXUA75..N202108-202405

main69350-0E180iAXUH7#,SXUA75..N202405

main69350-0E190iAXUH7#,SXUA75..G,M202108-202405

main69350-0E190iAXUH7#,SXUA75..G,M202405

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E060iAXUH7#,SXUA75202108-202405

main69430-0E060iAXUH7#,SXUA75202405

9010506367

main90105-06367¥60

9010508520

main90105-08520¥100

90105C0131

main90105-C0131

90105C0237

main90105-C0237

90148C0006

main90148-C0006

90182C0008

main90182-C0008

9038909041

main90389-09041¥100

9038914063

main90389-14063¥170

19 parts on this diagram · 2 diagrams in section
