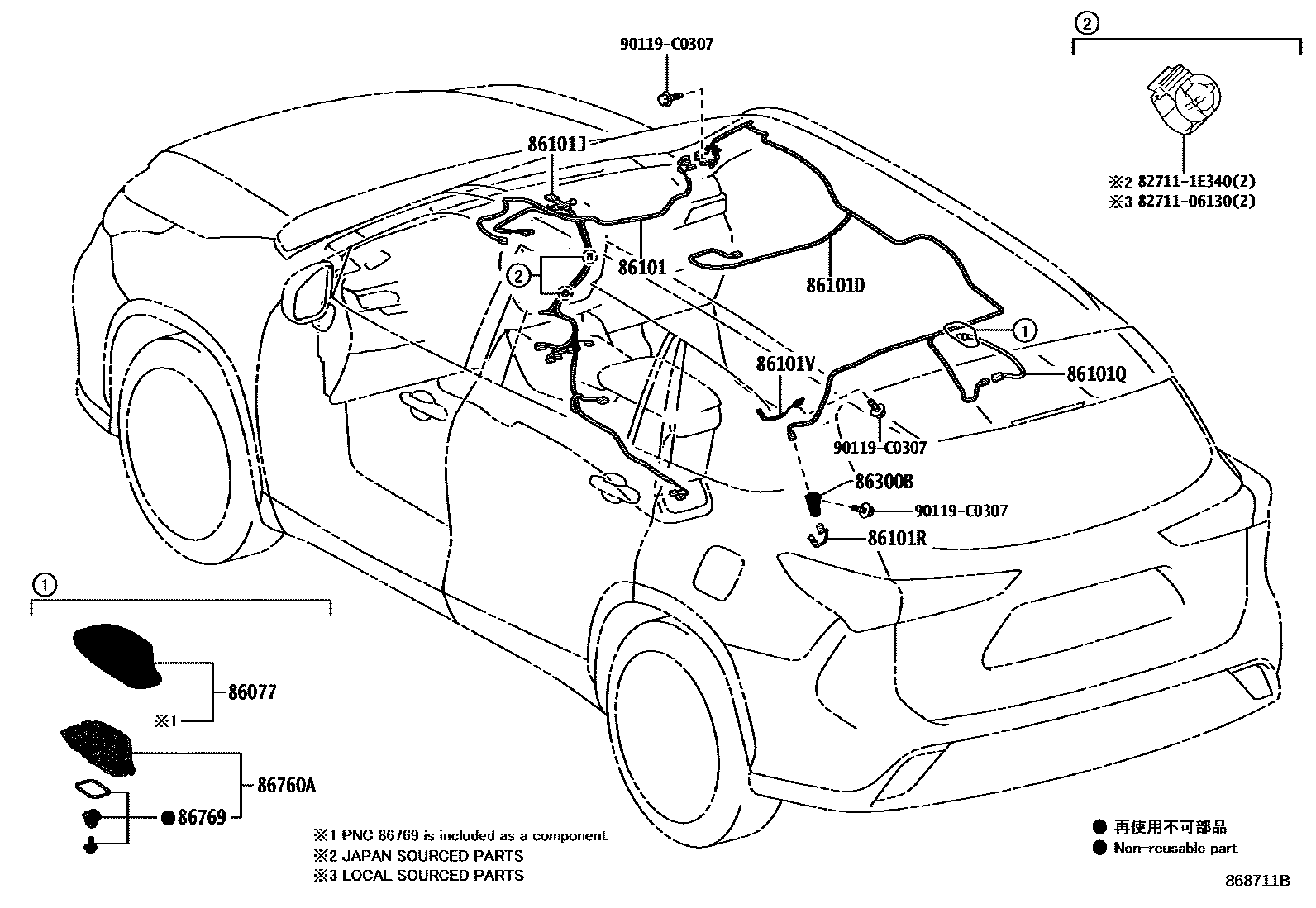

Toyota HIGHLANDER (CHINA) — ANTENNA
86077COVER KIT, ANTENNA
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86101VCORD SUB-ASSY, ANTENNA, NO.6
86300BANTENNA ASSY, AMPLIFIER, NO.1
86760AANTENNA ASSY, TELEPHONE
86769HOUSING, ROOF ANTENNA
8271106130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-06130
827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
90119C0307
main90119-C0307
13 parts on this diagram · 2 diagrams in section
