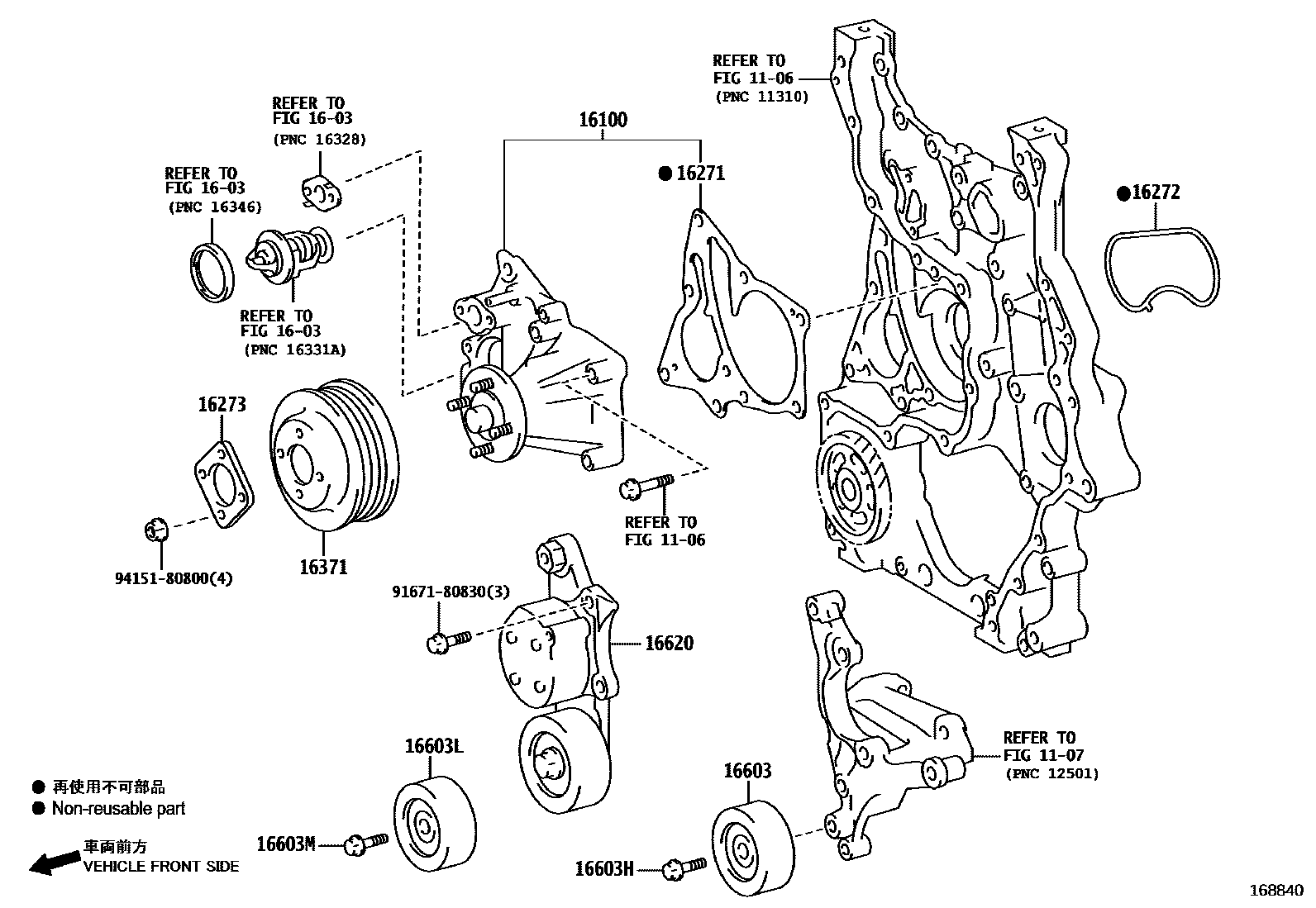

Toyota HIACE — WATER PUMP

0001 1 0002 1 0003 1 0004 1

1106

1107

1603

16100PUMP ASSY, ENGINE WATER

main16100-09460i2TRFE..TRH203..MA201401-201611

(L)

main16100-19365i1GDFTV..GDH201,223¥12,000201701

main16100-39425i1KDFTV,2KDFTV..KDH20#,21#,22#¥13,000201312-201407

sub16100-39426¥11,800

main16100-39426i1KDFTV..KDH213..TH¥11,800201407-202312

main16100-39426i1KDFTV..KDH223..5F..TH¥11,800201407-201904

CBU PACKAGE

main16100-39426i1KDFTV..KDH223..5F..TH¥11,800201407-201904

FIJI SPEC

main16100-59257i5LE..LH200..5D¥8,800201312-202506

main16100-79445i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥10,700201312-202506

TYPE A:REFER ILLUST.

main16100-79445i2TRFE..TRH203..MA¥10,700201401-201611

(J)

main16100-79515i1TRFE..TRH200..03S..6FC¥11,000202010-202507

TYPE B:REFER ILLUST.

16271GASKET, WATER PUMP

main16271-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main16271-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main16271-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main16271-11010i1GDFTV..GDH201,223¥640201701

main16271-54030i5LE..LH200..5D¥300201312-202506

main16271-67020i2KDFTV..KDH222..GL..GCC¥720201312-202301

16272GASKET, WATER PUMP, NO.2

main16272-11010i1GDFTV..GDH201,223¥340201701

16273SPACER, WATER PUMP

main16273-11010i1GDFTV..GDH201,223¥740201701

16371PULLEY, FAN

main16371-05010i5LE..LH20#,212,222..4D201312-202506

(L)

main16371-0C010i2TRFE..TRH203..MA201401-201611

main16371-0L010i1KDFTV..KDH223..5F..TH¥2,370201401-201904

CBU PACKAGE

main16371-0L010i1KDFTV..KDH223..5F..TH¥2,370201401-201904

FIJI SPEC

main16371-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH¥2,370201401-202312

main16371-11010i1GDFTV..GDH201,223¥1,540201701

main16371-30020i2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL¥2,980201312-202301

main16371-54030i5LE..LH200..5D¥2,950201312-202506

(J)

main16371-75040i2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..¥3,460201312-202507

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i1GDFTV..GDH201,223¥4,760201701

main16603-31040i1TRFE,2TRFE..TRH20#,213,22#¥4,760201312-201604

MARK=PU107029RMXY

main16603-31050i2TRFE..TRH203..4FC;2TRFE..TRH223..RHD..GEN¥4,760201605-202507

MARK=PU107029RMZY1

16603HBOLT(FOR IDLER PULLEY)

main91552-81050i1GDFTV..GDH201,223¥120201701

16603LPULLEY SUB-ASSY, IDLER, NO.1

main16603-31050i1GDFTV..GDH201,223¥4,760201701

16603MBOLT(FOR IDLER PULLEY)

main91552-81050i1GDFTV..GDH201,223¥120201701

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0L020i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main16620-0L020i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main16620-0L020i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main16620-11010i1GDFTV..GDH201,223¥15,200201701

main16620-30031i2KDFTV..KDH222..KEN¥28,300201312-202301

9167180830

main91671-80830¥80

9415180800

main94151-80800¥80

15 parts on this diagram · 4 diagrams in section
