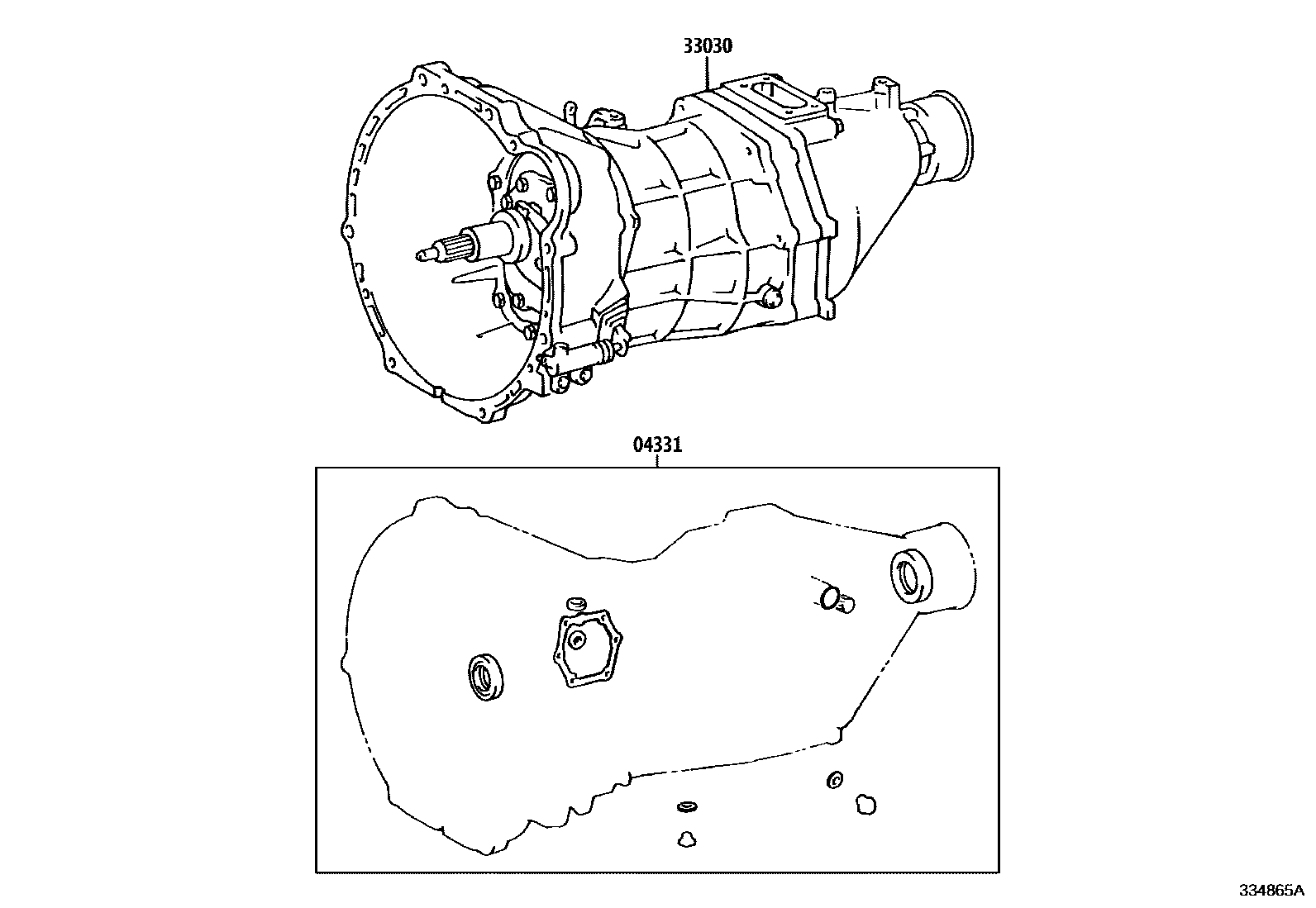

Toyota HIACE — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G55 0002 1G55 0003 1R351

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26110iLH200..5D201908-202506

main04331-26110iTRH200..5F;LH20#,212,222..4D201508-202506

main04331-26110iLH200..5D201508-201901

main04331-26200iKDH20#,21#,22#,TRH201,203,213,22#..5F¥2,060201312-201707

sub04331-26201¥1,550

main04331-26201iKDH222..KEN¥1,550201707-202212

main04331-26201iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥1,550201707-202301

main04331-26201iKDH200..MA¥1,550201707-202312

main04331-26201iTRH213..RHD..GEN¥1,550201908-202312

main04331-26201iTRH221..SA¥1,550201904-202312

main04331-26201iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH222,TRH223..5F..STD..GCC¥1,550201707-201902

main04331-26201iKDH223..5F..TH¥1,550201707-201904

main04331-26201iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA¥1,550201911-202107

main04331-26201iTRH203..5F..GCC¥1,550201707-202506

main04331-26201iTRH221..GCC;KDH200..LHD..5D;TRH223..5F..GL..GCC;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH201,212,220,TRH213..LHD..(03S,13S,16S);KDH201,202,203,213..4D..(03S,10¥1,550201707

main04331-26201iKDH223..TH;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN¥1,550201908

main04331-26201iKDH222..GL..GCC¥1,550201909

main04331-26201iKDH222,TRH223..5F..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)¥1,550201911

main04331-26201iKDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,550201707-201901

main04331-28071iLH20#,212,222¥1,750201312-201508

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0L010iLH20#,212,222201312-201508

G55

sub33030-26B30

main33030-26A04iKDH200,220..SA201911-202107

R351

main33030-26A04iKDH200..LHD..4D;KDH200..RHD..(GEN,SA)201312-201901

R351

main33030-26A04iKDH200..LHD..4D;KDH200..RHD..GEN201908

R351

main33030-26A04iKDH222..KEN201312-202212

R351

main33030-26A04iKDH200,220..LHD..5D;KDH220,222..(06S,16S)..STD..(GEN,SA)201312

R351

main33030-26A04iKDH200..MA201312-202312

R351

main33030-26A04iKDH222..GL..GCC201909

R351

main33030-26A04iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC201312-201902

R351

main33030-26A04iKDH222..GL..SA;KDH222..STD..GCC201911

R351

main33030-26A24iTRH213..RHD..GEN201908-202312

R351

main33030-26A24iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S201312

R351

main33030-26A24iTRH221..SG;TRH223..5F..GCC201911

R351

main33030-26A24iTRH213..RHD..5F201312-201901

R351

main33030-26A24iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)201312-201902

R351

main33030-26A24iTRH221..SA201904-202312

R351

main33030-26A24iTRH213,223..GL..SA201911-202107

R351

main33030-26A24iTRH203..5F..GCC201312-202506

R351

main33030-26A24iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN201908

R351

main33030-26A44iKDH212..16S..GEN201312-202301

R351

main33030-26A44iKDH212..SA201911-202107

R351

main33030-26A44iKDH212..SA201312-201901

R351

main33030-26A44iKDH202;KDH212..LHD..5F201312

R351

main33030-26A74iKDH223..RUS201701

R351

main33030-26A74iKDH223..RUS201312-201501

R351

main33030-26A74iKDH201..SG..5F;KDH201..5F..ARL;KDH221,223..RHD..5F..(ARL,GEN)201312-201606

R351

main33030-26A74iKDH223..5F..TH201312-201904

R351

main33030-26A74iKDH223..STD..(GEN,KEN,VN);KDH201..4D..5F..(GEN,MA,TH)201312

R351

main33030-26A74iKDH223..TH201908

R351

main33030-26A84iKDH203..TH;KDH203..15S201401

R351

main33030-26A84iKDH203..12S..GEN201712

R351

main33030-26B13iKDH201..SG..5F;KDH201..5F..ARL;KDH221,223..(02S,03S,14S)..5F201606-202301

R351

main33030-26B13iKDH223..RUS201501-201701

R351

main33030-26B13iKDH201..5D..SP..5F..GEN201312-202301

R351

main33030-26B23iKDH203,213..02S,10S201312-202301

R351

main33030-26B23iKDH203..12S..GEN201312-201712

R351

main33030-26B30iLH200..5D201908-202506

G55

main33030-26B30iLH200..5D201508-201901

G55

main33030-26B30iLH20#,212,222..4D201508-202506

G55

main33030-26B40iTRH200..5F¥163,000202302-202506

G55

2 parts on this diagram · 3 diagrams in section
