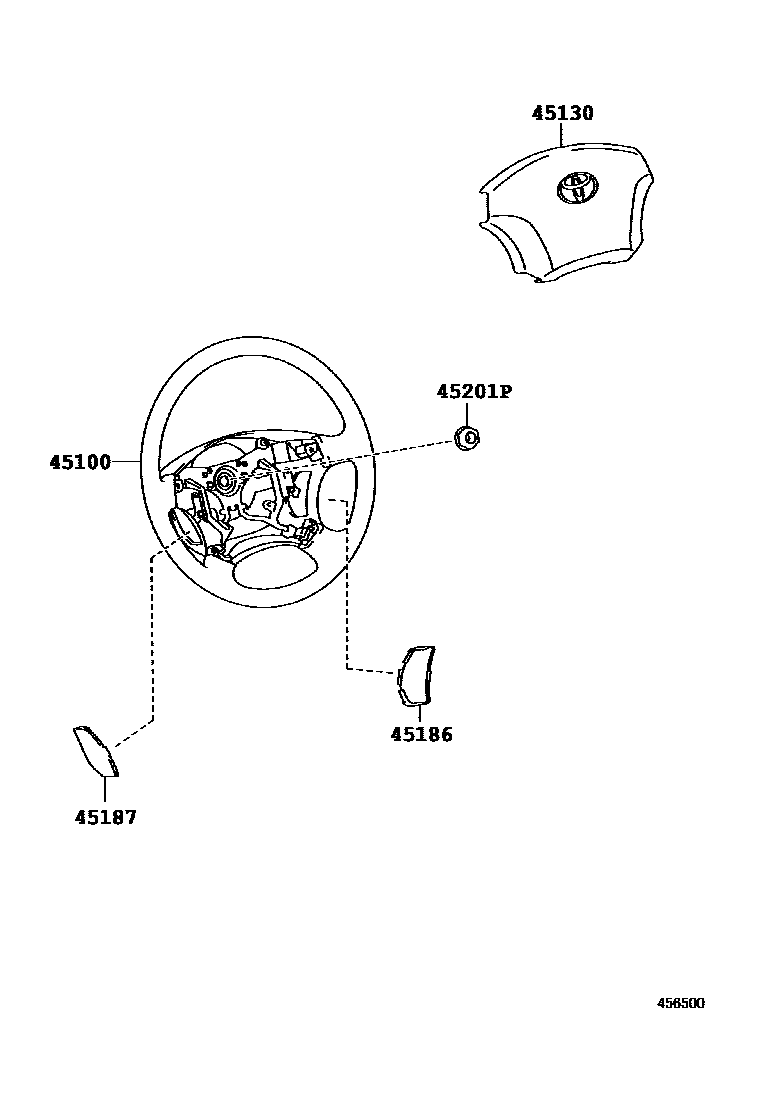

Toyota HIACE — STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#
4-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#
45130BUTTON ASSY, HORN
DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
STEERING WHEEL-WITH(AIR BAG),DK.GRAY,TRIM1#
STEERING WHEEL-WITH(AUDIO SWITCH & ORNAMENT),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#
45186COVER, STEERING WHEEL, LOWER NO.2
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
main45186-60050-B0iKDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN)201312-202004
DK.GRAY,TRIM1#
45187COVER, STEERING WHEEL, LOWER NO.3
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
45201PNUT, STEERING WHEEL SET
5 parts on this diagram · 3 diagrams in section
