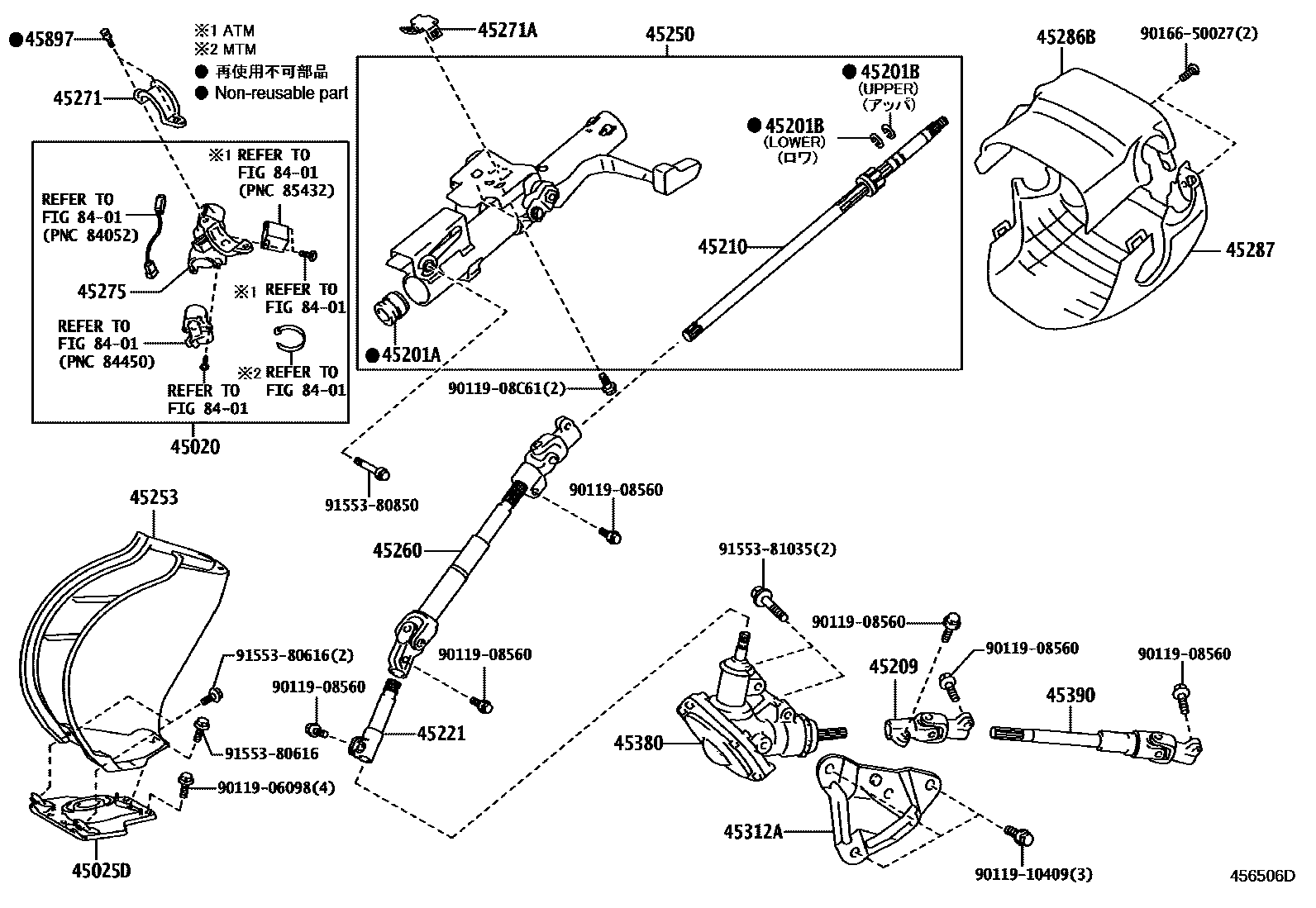

Toyota HIACE — STEERING COLUMN & SHAFT

0001 1 0002 1WITH(IMMOBILIZER)

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-33150iKDH20#,21#,22#,LH20#,212,222,TRH201,203,213,22#..5F¥20,300201312-201607

main45020-33151iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA¥12,800201607-202506

main45020-58010iTRH200..6FC¥15,800201312-202507

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-26080iKDH222..KEN¥2,060201312-202507

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-28010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥630201312-202507

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥120201312-202507

T=1.20,LOWER

main90520-17269iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA¥120201312-202507

T=1.20,UPPER

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-26050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥5,200201312-202507

45210SHAFT ASSY, STEERING MAIN

main45210-27110iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥3,060201312-202507

45221SHAFT, STEERING INTERMEDIATE

main45297-26021iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥7,800201312-202507

45250COLUMN ASSY, STEERING

main45250-2F430iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥23,400201312-202507

45253COVER, STEERING COLUMN HOLE

main45253-26150iKDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#¥3,420201312-201408

sub45253-26151¥2,150

main45253-26151iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥2,150201408-202507

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-26110iTRH213..RHD..GEN¥11,700201312-202507

main45260-26120iLH20#,222..LHD;TRH203..5F..GCC¥11,700201312-202506

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iKDH222..KEN¥520201312-202507

45271ACLAMP, STEERING COLUMN, UPPER NO.2

main45271-52010iKDH223..4FC..ARL;KDH201,203,212..RHD..(02S,03S,16S)..GEN¥130201312-202507

45275BRACKET, STEERING COLUMN, UPPER

main45280-26290iLH20#..4D;LH222..LHD;TRH200..5F;TRH203..5F..GCC¥8,900201607-202506

main45280-33140iKDH20#,21#,22#,LH20#,212,222,TRH201,203,213,22#..5F¥14,300201312-201607

main45280-58010iKDH201,223..(03S,14S)..4FC..STD¥9,100201312-202507

45286BCOVER, STEERING COLUMN, UPR

main45286-26400-B0iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-26350-B0iKDH223..ARL201312-202507

DK.GRAY,TRIM1#

main45287-26360-B0iTRH221..SG;KDH222,TRH223..STD..GCC201312-202506

DK.GRAY,TRIM1#

main45287-26370-B0iKDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN)201312-202004

DK.GRAY,TRIM1#

45312ABRACKET, STEERING BEVEL GEAR HOUSING

main45312-26190iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA¥1,090201312-202507

main45312-26200iKDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN¥1,090201312-202506

45380GEAR ASSY, STEERING BEVEL

main45380-37020iKDH223..5F..TH¥22,300201312-202507

45390SHAFT ASSY, STEERING TORQUE

main45390-26190iKDH223..4FC..TH;KDH201..4D..03S..5F;KDH223..RHD..5F..(ARL,GEN,KEN);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH201,220,TRH200,213..RHD..(02S,05S,06S,11S)..(4FC,5¥7,700201312-202507

main45390-26200iKDH222..GL..GCC¥7,700201312-202506

45897BOLT, STEERING LOCK SET

main45897-12020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥210201312-202507

8401

9011906098

main90119-06098¥80

9011908560

main90119-08560¥110

9011908C61

main90119-08C61¥80

9011910409

main90119-10409¥110

9016650027

main90166-50027¥120

9155380616

main91553-80616¥70

9155380850

main91553-80850¥100

9155381035

main91553-81035¥120

28 parts on this diagram · 2 diagrams in section
