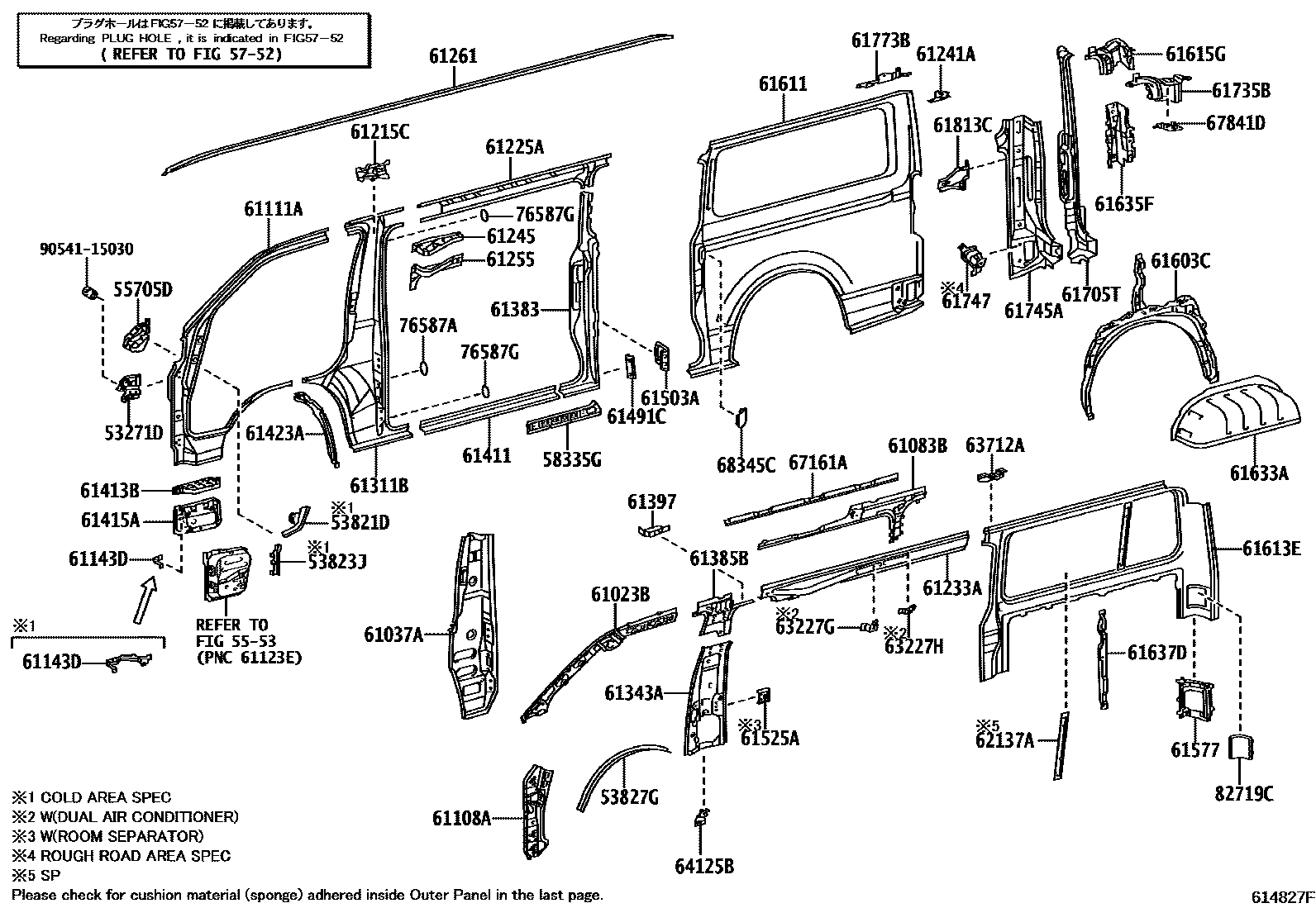

Toyota HIACE — SIDE MEMBER
53271DBRACKET, HEADLAMP MOUNTING, RH
53821DPROTECTOR, FRONT SIDE PANEL, NO.1 RH
COLD AREA SPEC
VENEZUERA SPEC
53823JPROTECTOR, FRONT SIDE PANEL, NO.2 RH
COLD AREA SPEC
VENEZUERA SPEC
53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH
main53827-26010iKDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)¥1,120201312-202507
5553
55705DPANEL SUB-ASSY, COWL TOP SIDE, RH,
5752
58335GPLATE, FLOOR SIDE, FR RH
main58335-26010iTRH203..4FC;KDH200..RHD..5D;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..5F..GCC;TRH223..GL..GEN¥1,540201312-202507
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-26080iKDH200,201,LH200..LHD..4D;KDH200,220,221,LH200,TRH221..5D;KDH201,TRH201..5D..SP..(03S,05S)¥21,500201312-201610
61083BBRACE SUB-ASSY, ROOF SIDE INNER, FR RH
main61083-26050iTRH213..GCC,TH;KDH200..LHD..5D;TRH203,213..LHD..GEN;KDH201,202,212,LH212..LHD;KDH201,TRH200..(05S,06S)..(4FC,5F);GDH201,KDH203,213,TRH201..(03S,05S,06S,10S,11S,12S,¥4,800201312-202507
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61111APANEL, FRONT SIDE, OUTER RH
AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER
AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER
AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER
POWER DOOR LOCK-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER
POWER DOOR LOCK-WITH&AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER
AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER
POWER DOOR LOCK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER
main61131-V3020iKDH200..5D;KDH202,203,TRH201,213..LHD;KDH200,TRH203..LHD..4D..GEN¥16,400202212-202506
61143DRETAINER, FRONT BUMPER SIDE, RH
COLD AREA SPEC
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER
COLD AREA SPEC&AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER
COLD AREA SPEC&POWER DOOR LOCK-WITH
61215CRAIL, ROOF SIDE, OUTER REAR RH
main61215-26050iTRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223..LHD..(GEN,RUS,VN)¥6,300201312-202506
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
main61225-V3010iKDH200..5D;TRH203..LHD..GEN;KDH200,202,TRH213..LHD..4D;GDH201,KDH203,TRH201..03S,06S,15S¥4,660202212-202507
61233ARAIL, ROOF SIDE, INNER NO.2 RH
main61233-26260iTRH201..5D;KDH201..SG;KDH200..LHD..5D;KDH201,202..LHD;TRH203..LHD..GEN;GDH201,KDH203..(03S,12S,15S)..GEN¥8,800201312-202507
61241AGUSSET, ROOF SIDE RAIL, REAR RH
main61241-26030iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)¥300201312-202506
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61255PLATE, ROOF SIDE RAIL, OUTER RH
main61213-26030iTRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH222,223..LHD..(GEN,RUS,VN)¥4,320201312-202506
61261CHANNEL, ROOF DRIP, RH
main61261-26061iTRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)¥10,400201312-202506
61311BPILLAR, CENTER BODY, OUTER RH
main61311-26050iKDH212,TRH213..GL..(GEN,TH);KDH201,TRH200..RHD..5D..(4FC,5F);GDH201,KDH213,TRH201..(05S,06S,10S,11S,13S)..GEN¥21,900201312-202212
POWER DOOR LOCK-WITH
main61311-26070iTRH223..ARL,TH;KDH223..4FC..TH;GDH223,KDH222,LH222..RHD..GEN;KDH223..RHD..5F..(ARL,GEN,KEN)¥16,900201312-202301
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER
POWER DOOR LOCK-WITH&AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER
61343APILLAR, CENTER BODY, INNER RH
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)&AIR CONDITIONER-DUAL AIR CONDITIONER
main61343-26380iTRH213..GCC,TH;TRH213..LHD..STD..GEN;GDH201,KDH201..SP..06S;KDH21#,LH212..LHD..(11S,16S);KDH212,TRH200..(06S,13S)..(4FC,5F)..STD¥10,600201312
AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
AIR CONDITIONER-DUAL AIR CONDITIONER
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)
main61343-26500iTRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH222,223..LHD..GL..(GEN,RUS)¥11,300201312-201902
61383EXTENSION, CENTER BODY PILLAR, OUTER RH
61385BEXTENSION, CENTER BODY PILLAR, INNER RH
61397PATCH, CENTER BODY PILLAR, INNER RH
61411PANEL, ROCKER, OUTER RH
61413BPANEL, FRONT STEP, RH
main61131-26081iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(¥2,020201312-202507
61415APANEL, FRONT STEP, UNDER, RH
61423APANEL, FENDER, INNER LOWER RH
main61423-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,870201312-202507
61491CPLATE, NO.3 LOWER RAIL, INNER RH
61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH
61525ARETAINER, SEPARATOR BAR BRACKET, RH
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)&AIR CONDITIONER-DUAL AIR CONDITIONER
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER
61577PLATE, CAB REAR PILLAR, LOWER RH
REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
sub61610-26310
AMBURANCE BASE&REAR SEAT-WITHOUT&REAR SEAT BELT-WITHOUT
TUNISIA SPEC
TUNISIA SPEC&AMBURANCE BASE
AMBURANCE BASE
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER
AMBURANCE BASE
AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER
NIGERIA SPEC&AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER
NIGERIA SPEC&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER
sub61610-26130
sub61610-26260
sub61610-26300
COLD AREA SPEC&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)
sub61610-26480
61611PANEL, QUARTER, RH
COLD AREA SPEC
61613EPANEL, QUARTER, INNER RH
EGYPT SPEC&AMBURANCE BASE&AIR CONDITIONER-WITHOUT
NIGERIA SPEC&AMBURANCE BASE&AIR CONDITIONER-WITHOUT
AMBURANCE BASE&AIR CONDITIONER-WITHOUT
sub61613-26J30
61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61633-26050iTRH221..GCC;KDH201..4D..03S..5F;KDH200,201..LHD..5D;KDH202,TRH203..LHD..GEN;KDH201,TRH200..(02S,05S,06S)..(4FC,5F);KDH221,TRH201,203,223..02S,03S,05S,06S,10S,12S,13¥7,200201312-202506
AMBURANCE BASE
AMBURANCE BASE&REAR SEAT-WITHOUT
EGYPT SPEC&AMBURANCE BASE
NIGERIA SPEC&AMBURANCE BASE
61635FREINFORCEMENT, QUARTER PANEL, UPR RH
REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)
REAR SEAT-FOR 12 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-3 POINT TYPE(FOR 12 PERSONS)
EGYPT SPEC&AMBURANCE BASE
61637DREINFORCEMENT, QUARTER, INNER RH
main61637-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,420201312-202507
61705TFRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61735BEXTENSION, QUARTER PANEL, INNER RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
main61745-26050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥11,500201312-202507
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH
61813CREINFORCEMENT, QUARTER PANEL EXTENSION, NO.3 RH
62137AREINFORCE, SIDE WINDOW PANEL
63227GBRACKET, ROOF HEADLINING, FR RH NO.2
63227HBRACKET, ROOF HEADLINING, FR RH NO.3
63712ABRACKET, ROOF PANEL REINFORCEMENT, RH
64125BANCHOR, PILLAR SEAT BELT
67161AEXTENSION, SLIDE DOOR INSIDE PANEL, UPPER RH
67841DCOVER, QUARTER SERVICE HOLE, RH
main67841-26010-B0iTRH201;KDH200,201..LHD..5D;KDH201..4D..03S..5F;GDH201,KDH202,203..03S,06S,12S,15S;KDH201,TRH200,203..(02S,05S,06S,15S)..(4FC,5F)..(ARL,GEN)201312-202507
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
main67841-26040-B0iKDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC201312-201904
AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#
68345CCOVER, SLIDE DOOR CENTER RAIL
DK.GRAY,TRIM1#
76587APROTECTOR, CENTER PILLAR OUTER
76587GPROTECTOR, CENTER PILLAR OUTER
82719CCOVER, WIRE HANRESS SERVICE HOLE
MOROCCO SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS),DK.GRAY,TRIM1#
main82719-26030-B1iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..STD..(GEN,SA)201312-202507
DK.GRAY,TRIM1#
main82719-26030-B1iKDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC201312-201902
REAR SEAT-4-ROW(FOR 12 PERSONS),DK.GRAY,TRIM1#
main82719-26030-B1iKDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC201312-201902
REAR SEAT-FOR 12 PERSONS(BACK-ROW:SPACE UP SEAT),DK.GRAY,TRIM1#
main82719-26030-B1iKDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC201312-201902
EGYPT SPEC&REAR SEAT-FOR 13 PERSONS(BACK-ROW:SPACE UP SEAT),DK.GRAY,TRIM1#
main82719-26030-B1iTRH201;KDH223..4FC..TH;KDH221,LH222..RHD;KDH200,201..LHD..5D;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..STD;KDH223,TRH221..GCC,KEN,VN;TRH22#..(02S,06S,16S)..(ARL,SA,201312
REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),DK.GRAY,TRIM1#
main82719-26030-B1iTRH201;KDH223..4FC..TH;KDH221,LH222..RHD;KDH200,201..LHD..5D;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..STD;KDH223,TRH221..GCC,KEN,VN;TRH22#..(02S,06S,16S)..(ARL,SA,201312
REAR SEAT-FOR 12 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-3 POINT TYPE(FOR 12 PERSONS),DK.GRAY,TRIM1#
main82719-26030-B1iTRH201;KDH223..4FC..TH;KDH221,LH222..RHD;KDH200,201..LHD..5D;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..STD;KDH223,TRH221..GCC,KEN,VN;TRH22#..(02S,06S,16S)..(ARL,SA,201312
INDONESIA S-HI PACKAGE&REAR SEAT-FOR 8 PERSONS(BACK-ROW:SPACE-UP SEAT),DK.GRAY,TRIM1#
9054115030
59 parts on this diagram · 21 diagrams in section
