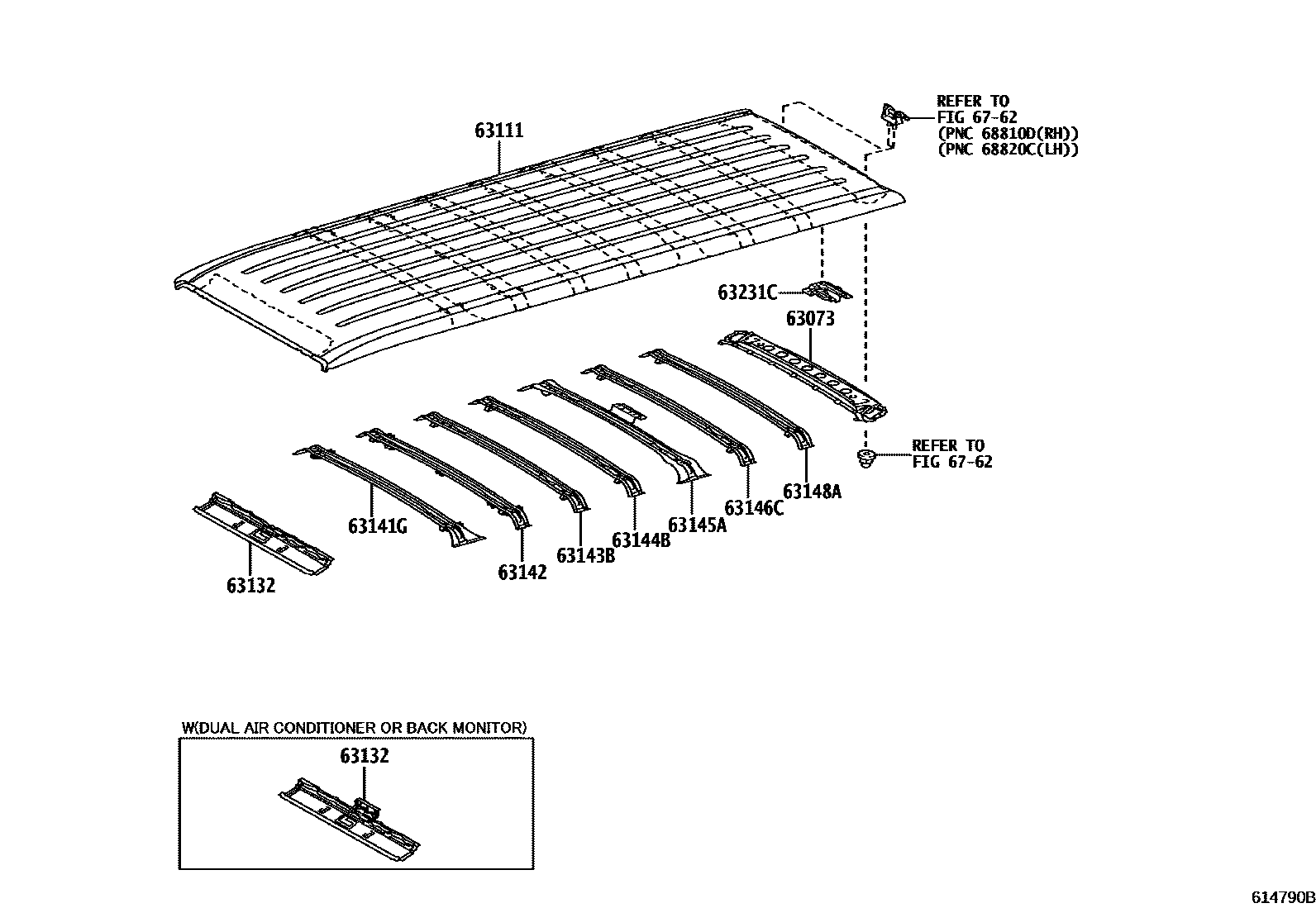

Toyota HIACE — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1ROOF PANEL(NOMAL) 0006 1ROOF PANEL(MOON)

63073FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER

main63073-26070iTRH200..6FC¥10,500201312-202507

main63073-26090iKDH202,TRH203..MA¥8,700201401-201611

main63073-26110iKDH212,TRH213..SA¥9,200201312-202312

main63073-26120iLH222..LHD¥9,200201312-202506

main63073-26130iKDH222..KEN¥9,200201312-202301

main63073-26130iTRH221..SG;TRH223..4FC;KDH222..STD..GCC¥9,200201312-201902

AIR CONDITIONER-DUAL AIR CONDITIONER

63111PANEL, ROOF

main63111-26471iTRH203..4FC;KDH200..LHD..4D;KDH200..RHD..GEN¥70,600201312-202507

main63111-26480iKDH202,TRH203..MA¥70,600201401-201611

main63111-26490iKDH212..16S..GEN¥70,600201312-202312

main63111-26500iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥149,000201312-202506

main63111-26550iKDH222,TRH223..STD..SA201402-201712

63132PANEL, WINDSHIELD HEADER, INNER

main63102-26090iTRH200..03S..6FC;KDH201..4D..03S..5F..GEN;KDH201,TRH200..SP..06S..(4FC,5F);GDH201,KDH203..RHD..(03S,06S,12S)¥4,420201312-202507

main63102-26140iKDH202,TRH203..MA¥4,420201401-201611

main63102-26150iTRH213..RHD..GEN¥6,600201312-202507

main63102-26160iKDH222..GL..GCC¥6,600201312-202507

main63102-26280iKDH200..GCC201701-202401

main63102-26290iKDH222,TRH223..STD..GCC201701-202401

main63102-26300iKDH222,TRH223..GL..GCC201701-201902

main63132-26080iKDH200,TRH201..GCC¥4,240201312-202312

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-26260iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)¥7,200201312-202507

main63103-26270iKDH201..SP..06S;GDH201,KDH203,TRH200..RHD..(06S,12S)¥7,200201312-202107

main63103-26290iKDH202,TRH203..MA¥6,000201401-201611

main63103-26300iKDH213¥4,760201312-202107

main63103-26300iKDH212,TRH213..SA¥4,760201312-201901

AIR CONDITIONER-DUAL AIR CONDITIONER

main63103-26310iTRH221..SG;TRH223..4FC;KDH222..STD..GCC¥7,200201312-202506

main63103-26320iTRH223..GL..GEN¥7,200201312-202107

AIR CONDITIONER-DUAL AIR CONDITIONER

main63103-26320iKDH222..KEN¥7,200201312-202301

main63141-26200iLH212;KDH212,TRH213..LHD..STD¥4,420201312-202507

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-26170iKDH201..SP..06S;GDH201,KDH203,TRH200..RHD..(06S,12S)¥4,780201312-202107

main63104-26190iKDH202,TRH203..MA¥5,200201401-201611

main63104-26200iKDH212,TRH213..SA¥4,420201312-201901

AIR CONDITIONER-DUAL AIR CONDITIONER

main63104-26200iKDH213..TH¥4,420201312-202107

main63104-26220iTRH223..RHD..GEN;KDH223,TRH223..5F..(GCC,TH)¥5,100201312-202107

AIR CONDITIONER-DUAL AIR CONDITIONER

main63104-26220iKDH223..4FC..ARL¥5,100201312-202301

main63104-26230iTRH213..RHD..GEN¥4,420201312-202507

main63104-26250iKDH222,TRH223..STD..GCC¥4,680201312-202506

main63104-26280iKDH200..MA¥5,300201312-202507

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63105-26140iTRH200..6FC¥5,300201312-202507

main63105-26150iKDH202,TRH203..MA¥5,200201401-201611

main63105-26170iTRH221..SA¥4,420201312-202506

main63143-26160iLH212;KDH21#..LHD;TRH213..GCC,TH;TRH213..LHD..GEN¥4,420201312-202312

main63143-26170iKDH223..4FC..ARL¥4,420201312-202301

main63143-26170iKDH222..5F..GL;TRH223..5F..GL..(GEN,SA)¥4,420201312-201902

AIR CONDITIONER-DUAL AIR CONDITIONER

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63106-26040iKDH202,TRH203..MA¥5,100201401-201611

main63106-26070iTRH213..RHD..GEN¥5,100201312-202312

main63106-26090iKDH220¥4,420201312-202506

main63106-26100iLH222..RHD;TRH223..TH;KDH223..4FC..TH;KDH222..STD..GEN;TRH223..LHD..STD..GEN¥5,100201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main63106-26100iKDH222..KEN¥5,100201312-202301

main63106-26110iKDH222..GL..GCC¥4,420201312-202107

main63106-26120iKDH200..MA¥5,300201312-202507

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63107-26040iKDH200..SA¥6,400201312-202507

main63107-26070iKDH202,TRH203..MA¥7,200201401-201611

main63107-26090iKDH212..16S..GEN¥7,300201312-202312

main63107-26100iKDH21#,TRH213..GL¥6,700201312-202107

main63107-26120iTRH221..SG;TRH223..4FC;KDH222..STD..GCC¥5,500201312-202506

main63107-26130iTRH223..GL..SA¥5,500201312-202301

main63107-26130iTRH221..SG;TRH223..RHD..GEN¥5,500201312-201902

AIR CONDITIONER-DUAL AIR CONDITIONER

main63109-26020iKDH222,TRH223..STD..SA201402-201406

main63109-26040iKDH223..STD..GEN201406-201906

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63105-26140iKDH200..SA¥5,300201312-202507

main63106-26040iKDH202,TRH203..MA¥5,100201401-201611

main63106-26070iKDH213..TH¥5,100201312-202312

main63106-26080iKDH222,TRH223..STD..GCC¥4,420201312-202506

main63106-26110iTRH221..SG;TRH223..RHD..GEN¥4,420201312-201902

AIR CONDITIONER-DUAL AIR CONDITIONER

main63106-26110iTRH223..GL..SA¥4,420201312-202301

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63104-26160iKDH200..MA¥4,680201312-202507

main63105-26190iTRH221..SG;TRH223..4FC;KDH222..STD..GCC¥4,420201312-202506

main63143-26170iKDH222..GL..SA¥4,420201312-201902

AIR CONDITIONER-DUAL AIR CONDITIONER

main63143-26170iTRH223..GL..SA¥4,420201312-202301

main63207-26040iKDH202,TRH203..MA¥5,800201401-201611

main63207-26070iKDH212..SA;TRH213..RHD..5F¥4,420201312-202312

63231BRACKET, ROOM LAMP

main63231-26160iKDH213..TH¥2,660201312-202107

main63231-26240iTRH223..GL..SA¥2,660201312-202107

63231CBRACKET, ROOM LAMP

main63231-26220iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)¥1,000201312-202507

6762

13 parts on this diagram · 5 diagrams in section
