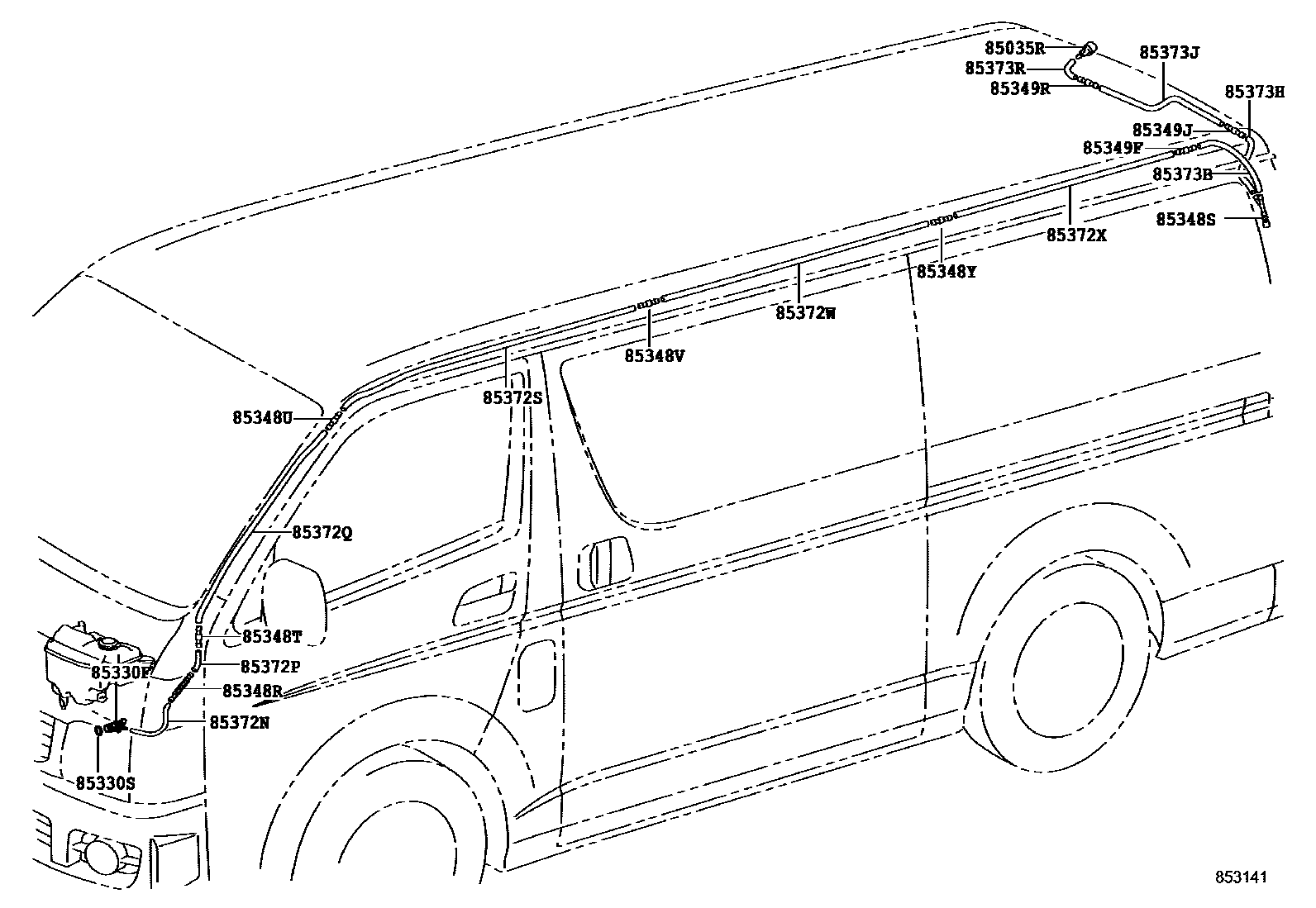

Toyota HIACE — REAR WASHER

0001 1 0006 1 0011 1 0012 1 0013 1

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-26050iKDH222..GCC;TRH223..STD..GCC¥1,320201701-201902

REAR WINDOW WIPER-WITHOUT

main85391-26050iTRH223..ARL,RUS;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH213,220,221,TRH221..02S,06S,13S;KDH201,TRH213..STD..(ARL,GCC,MA,TH);K¥1,320201312-202410

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85391-26050iKDH222..STD..GCC¥1,320201312-202410

main85391-26050iKDH222..GCC;TRH223..STD..GCC¥1,320201701-201902

EGYPT SPEC

main85391-V3040iTRH223..GCC202411

REAR WINDOW WIPER-WITHOUT

main85391-V3040iTRH223..GCC202411-202507

REAR WINDOW WIPER-WITH(INTERMITTENT)

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-26030iKDH201,222..(03S,14S)..(MA,SA);KDH200,202,222,223,TRH203,223..RHD..GEN202005-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85330-26030iTRH200..03S..6FC202005-202507

main85330-60160iLH200..5D;KDH222..GL..SA;KDH200,TRH213,223..RHD..GEN¥0201312-202005

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85330-60160iKDH222..GL..GCC¥0201312-202401

85330SBUSH, REAR WASHER JAR

main85336-60300iTRH200..6FC¥0201312-202507

main85336-60300iKDH201,203..RHD..(02S,03S)..GEN¥0201312-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iKDH223..ARL¥0201312-202401

main85349-32150iKDH222..GCC;TRH223..STD..GCC¥0201701-201902

EGYPT SPEC

main85349-32150iKDH222..GCC;TRH223..STD..GCC¥0201701-201902

REAR WINDOW WIPER-WITHOUT

main85349-32150iKDH201,203..RHD..(02S,03S)..GEN¥0201312-202301

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-89122iTRH200..5F202302-202507

85348SJOINT, REAR WASHER ELBOW, NO.1

main85377-26280iKDH222..STD..GCC¥0201701-201902

EGYPT SPEC

main85377-26280iKDH222..STD..GCC¥0201701-201902

REAR WINDOW WIPER-WITHOUT

main85377-26280iKDH223..5F..TH¥0201312-202507

main85377-26280iKDH201,203..RHD..(02S,03S)..GEN¥0201312-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKDH212..16S..GEN201312-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

EGYPT SPEC

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

REAR WINDOW WIPER-WITHOUT

main85349-89122iKDH223..5F..TH201312-202507

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

EGYPT SPEC

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

REAR WINDOW WIPER-WITHOUT

main85349-89122iKDH223..5F..TH201312-202507

main85349-89122iKDH201,203..RHD..(02S,03S)..GEN201312-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

EGYPT SPEC

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

REAR WINDOW WIPER-WITHOUT

main85349-89122iKDH223..5F..TH201312-202507

main85349-89122iKDH201,203..RHD..(02S,03S)..GEN201312-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iTRH203..4FC;KDH222..GL..SA;KDH200..LHD..4D;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201312-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

EGYPT SPEC

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

REAR WINDOW WIPER-WITHOUT

main85349-89122iKDH223..5F..TH201312-202507

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-201902

REAR WINDOW WIPER-WITHOUT

main85349-89122iKDH222..STD..GCC201701-201902

EGYPT SPEC

main85349-89122iKDH223..5F..TH201312-202507

main85349-89122iKDH201,203..RHD..(02S,03S)..GEN201312-202506

REAR WINDOW WIPER-WITH(INTERMITTENT)

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-202005

EGYPT SPEC

main85349-89122iKDH222..GCC;TRH223..STD..GCC201312-202005

REAR WINDOW WIPER-WITHOUT

main85349-89122iKDH223..5F..TH201312-202005

main85349-89122iTRH223..TH;TRH213..GL..(GEN,TH);KDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD;KDH21#,223..LHD..(10S,11S,16S)..(GEN,VN);KDH223,TRH223..(10S,13S,16S)..4FC..(GEN,TH)201312-202005

REAR WINDOW WIPER-WITH(INTERMITTENT)

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iKDH223..ARL201312-202005

main85349-89122iKDH222..GCC;TRH223..STD..GCC201701-202005

EGYPT SPEC

main85349-89122iKDH222..GCC;TRH223..STD..GCC201312-202005

REAR WINDOW WIPER-WITHOUT

main85349-89122iTRH223..TH;TRH213..GL..(GEN,TH);KDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD;KDH21#,223..LHD..(10S,11S,16S)..(GEN,VN);KDH223,TRH223..(10S,13S,16S)..4FC..(GEN,TH)201312-202005

REAR WINDOW WIPER-WITH(INTERMITTENT)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iTRH213..LHD201704-202401

L=1450(*H,L=260),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH222..STD..GCC201704-202401

L=1450(*H,L=260)

main90099-33080iTRH200..5F202302-202507

L=1450(*H,L=300)

main90099-33080iKDH222..GCC;TRH223..STD..GCC201704-202301

L=1450(*H,L=260),EGYPT SPEC

main90099-33080iKDH222..GCC;TRH223..STD..GCC201704-202301

L=1450(*H,L=260),REAR WINDOW WIPER-WITHOUT

main90099-33080iKDH213..TH201704-201906

L=1450(*H,L=260),PERU SPEC

main90099-62086iKDH201,221,TRH201..SG;KDH200,222,TRH201,22#..(03S,16S)..GCC¥410201701-201704

L=260,EGYPT SPEC

main90099-62086iTRH223..TH;TRH223..4FC..GEN;KDH201..RHD..SP..GEN;KDH21#,TRH213..(10S,11S)..(GEN,TH);GDH201,KDH203,223,TRH200..RHD..(GEN,TH)¥410201312-201704

L=260,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62086iTRH223..TH;TRH223..4FC..GEN;KDH201..RHD..SP..GEN;KDH21#,TRH213..(10S,11S)..(GEN,TH);GDH201,KDH203,223,TRH200..RHD..(GEN,TH)¥410201312-201704

L=260,REAR WINDOW WIPER-WITHOUT

main90099-62086iTRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH22¥410201312-201704

L=260

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iKDH222..GCC;TRH223..STD..GCC201312-202401

L=1450(*H,L=50)

main90099-33080iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1450(*H,L=50),EGYPT SPEC

main90099-33080iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1450(*H,L=50),REAR WINDOW WIPER-WITHOUT

main90099-33080iKDH223..TH;TRH223..4FC201312

L=1450(*H,L=50),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iGDH223,KDH223..(03S,14S)..(GEN,KEN)202007-202212

L=1450(*H,L=70)

main90099-33080iKDH201..MA;KDH200,202,203,TRH201,203..(03S,12S,15S)..GEN202005-202506

L=1450(*H,L=90),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH201..MA;KDH200,202,203,TRH201,203..(03S,12S,15S)..GEN202005-202507

L=1450(*H,L=90)

main90099-33080iKDH201,203..RHD202005-202301

L=1450(*H,L=90),EGYPT SPEC

main90099-62105iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201312-202005

L=90

main90099-62105iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=90,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62105iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=90,EGYPT SPEC

main90099-62105iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=90,REAR WINDOW WIPER-WITHOUT

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62232iTRH213..LHD202005-202507

L=1020

main90099-62232iTRH223..GCC202005-202301

L=1020,REAR WINDOW WIPER-WITHOUT

main90099-62232iTRH223..GCC202005-202507

L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62232iTRH221..GCC202005-202301

L=1020,EGYPT SPEC

main90446-07001iTRH223..13S201312-202005

L=1800(*H,L=540),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201312-202005

L=1800(*H,L=1020)

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201312-202005

L=1800(*H,L=540)

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),EGYPT SPEC

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH223..GL..GEN;TRH223..ARL,RUS;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,223..5F..(ARL,GEN,RUS);KDH221,222,LH222..(02S,16S)..(ARL,GEN)201312-202005

L=1800(*H,L=540),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH223..TH;TRH223..4FC201312-202005

L=1800(*H,L=300),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH223..TH;TRH223..4FC201312-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1800(*H,L=540),EGYPT SPEC

main90446-07001iKDH213..TH201312-202004

L=1800(*H,L=300)

main90446-07001iKDH213..TH201312-201906

L=1800(*H,L=300),REAR WINDOW WIPER-WITHOUT

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-62104iTRH213..LHD202005-202507

L=1040

main90099-62104iTRH223..GCC202005-202301

L=1040,REAR WINDOW WIPER-WITHOUT

main90099-62104iTRH223..GCC202005-202507

L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62104iTRH221..GCC202005-202301

L=1040,EGYPT SPEC

main90446-07001iTRH201..SG;TRH201..03S..GCC201312-202005

L=1800(*H,L=1020)

main90446-07001iKDH222..GCC;TRH223..STD..GCC201312-202005

L=1800(*H,L=830)

main90446-07001iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1800(*H,L=830),EGYPT SPEC

main90446-07001iKDH222..GCC;TRH223..STD..GCC201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH213..TH201312-202004

L=1800(*H,L=400)

main90446-07001iKDH213..TH201312-201906

L=1800(*H,L=400),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=400),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),EGYPT SPEC

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITHOUT

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-62104iTRH200202005-202507

L=1040

main90099-62104iTRH223..GCC202005-202301

L=1040,REAR WINDOW WIPER-WITHOUT

main90099-62104iTRH223..GCC202005-202507

L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62104iTRH221..GCC202005-202301

L=1040,EGYPT SPEC

main90099-62232iTRH213..LHD202401

L=1020

main90446-07001iKDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..ST201312-202005

L=1800(*H,L=1020)

main90446-07001iKDH222..GCC;TRH223..STD..GCC201312-202005

L=1800(*H,L=830)

main90446-07001iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1800(*H,L=830),EGYPT SPEC

main90446-07001iKDH222..GCC;TRH223..STD..GCC201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),EGYPT SPEC

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITHOUT

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90099-62232iTRH200202005-202507

L=1020

main90099-62232iTRH200202005-202507

L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62232iKDH201,203,223..02S,03S,14S202005-202301

L=1020,EGYPT SPEC

main90099-62232iKDH201,203,223..02S,03S,14S202005-202301

L=1020,REAR WINDOW WIPER-WITHOUT

main90446-07001iTRH223..TH;TRH213..GL..(GEN,TH);KDH21#,223..LHD..(10S,11S,16S)..(GEN,VN);KDH223,TRH223..(10S,13S,16S)..4FC..(GEN,TH)201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iTRH223..TH;TRH213..GL..(GEN,TH);KDH21#,223..LHD..(10S,11S,16S)..(GEN,VN);KDH223,TRH223..(10S,13S,16S)..4FC..(GEN,TH)201312-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iTRH223..TH;TRH213..GL..(GEN,TH);KDH21#,223..LHD..(10S,11S,16S)..(GEN,VN);KDH223,TRH223..(10S,13S,16S)..4FC..(GEN,TH)201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITHOUT

main90446-07001iTRH223..ARL,RUS;TRH213..LHD..STD;KDH223..(12S,14S)..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH213,220,222,223..(03S,13S,14S,16S)..GEN;KDH202,212,221,LH212,201312-202005

L=1800(*H,L=1020)

main90446-07001iTRH223..ARL,RUS;TRH213..LHD..STD;KDH223..(12S,14S)..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH213,220,222,223..(03S,13S,14S,16S)..GEN;KDH202,212,221,LH212,201312-202005

L=1800(*H,L=830)

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),EGYPT SPEC

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=1020),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1800(*H,L=830),EGYPT SPEC

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

main90099-33080iKDH222..KEN202005-202401

L=1450(*H,L=1040)

main90099-33080iTRH223..GCC202005-202301

L=1450(*H,L=1040),REAR WINDOW WIPER-WITHOUT

main90099-33080iTRH223..GCC202005

L=1450(*H,L=1040),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iTRH221..GCC202005-202301

L=1450(*H,L=1040),EGYPT SPEC

main90099-33299iTRH213..LHD202005-202507

L=1000(*H,L=400)

main90099-33299iTRH200202005-202506

L=1000(*H,L=400),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33299iKDH201,203..RHD202005-202301

L=1000(*H,L=400),EGYPT SPEC

main90099-62092iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD¥0201312-202005

L=400

main90099-62092iKDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..ST¥0201312-202005

L=400,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62092iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC¥0201701-202005

L=400,EGYPT SPEC

main90099-62092iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC¥0201701-202005

L=400,REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH222..STD..GCC201701-201902

L=1800(*H,L=830),EGYPT SPEC

main90446-07001iKDH222..STD..GCC201312-202005

L=1800(*H,L=830)

main90446-07001iKDH222..GCC;TRH223..STD..GCC201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITHOUT

main90446-07001iTRH223..13S;KDH213,TRH213..5F..GL..GEN201312-202005

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

85373HHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10

main90099-33080iKDH221..GEN;TRH221..GCC;TRH223..GL..GCC201701-202005

L=1450(*H,L=430),REAR WINDOW WIPER-WITHOUT

main90099-33080iTRH201..SG;TRH201..03S..GCC201312-202005

L=1450(*H,L=430)

main90099-33080iTRH201..SG;TRH201..03S..GCC201312-202005

L=1450(*H,L=550)

main90099-33080iTRH201..SG;TRH201..03S..GCC201701-202005

L=1450(*H,L=430),EGYPT SPEC

main90099-33080iTRH201..SG;TRH201..03S..GCC201312-202005

L=1450(*H,L=550),REAR WINDOW WIPER-WITHOUT

main90099-33080iKDH223..TH;TRH223..4FC201312-202005

L=1450(*H,L=630),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH223..TH;TRH223..4FC201312-202005

L=1450(*H,L=430),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH223..TH;TRH223..4FC201312-202005

L=1450(*H,L=550),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH213,TRH213..5F..GL..GEN201312-201906

L=1450(*H,L=630),REAR WINDOW WIPER-WITHOUT

main90099-33080iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1450(*H,L=550),EGYPT SPEC

main90099-33080iKDH213..TH201312-202004

L=1450(*H,L=630)

85373JHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11

main90446-07001iKDH222..GCC;TRH223..STD..GCC201701-202005

L=1800(*H,L=720)

main90446-07001iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1800(*H,L=720),EGYPT SPEC

main90446-07001iKDH222..GCC;TRH223..STD..GCC201701-202005

L=1800(*H,L=720),REAR WINDOW WIPER-WITHOUT

main90446-07001iTRH223..4FC..GEN;KDH223,TRH223..TH201312-201904

L=1800(*H,L=730)

main90446-07001iKDH213..TH;KDH213..5F;KDH212,TRH213..(10S,11S)..(GEN,TH)201312-201906

L=1800(*H,L=590)

main90446-07001iKDH213..TH;KDH213..5F;KDH212,TRH213..(10S,11S)..(GEN,TH)201312-201906

L=1800(*H,L=590),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH213..11S..GEN201512-202004

L=1800(*H,L=550)

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=630)

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=630),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=730),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201..RHD..SP..GEN;GDH201,KDH203,TRH200..RHD201312-202005

L=1800(*H,L=590),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=630),EGYPT SPEC

main90446-07001iKDH201,TRH201..SG;KDH200,TRH201..03S..GCC201701-202005

L=1800(*H,L=630),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH223..TH;TRH223..4FC201908-202005

L=1800(*H,L=550),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH223..TH;TRH223..4FC201908-202005

L=1800(*H,L=720),REAR WINDOW WIPER-WITH(INTERMITTENT)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iTRH223..TH;KDH223..KEN,VN;KDH201..SP..06S;TRH213..GL..(GEN,TH);KDH201..4D..03S..5F..GEN;GDH201,223,KDH203..RHD..(03S,06S,12S,14S);KDH21#,TRH200..(03S,06S,10S,11S)..201312-202411

L=1450(*H,L=90),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iTRH223..ARL,RUS;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH213,220,221,TRH221..02S,06S,13S;KDH201,TRH213..STD..(ARL,GCC,MA,TH);K201312-202411

L=1450(*H,L=90)

main90099-33080iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1450(*H,L=90),REAR WINDOW WIPER-WITHOUT

main90099-33080iKDH222..GCC;TRH223..STD..GCC201701-201902

L=1450(*H,L=90),EGYPT SPEC

22 parts on this diagram · 5 diagrams in section
