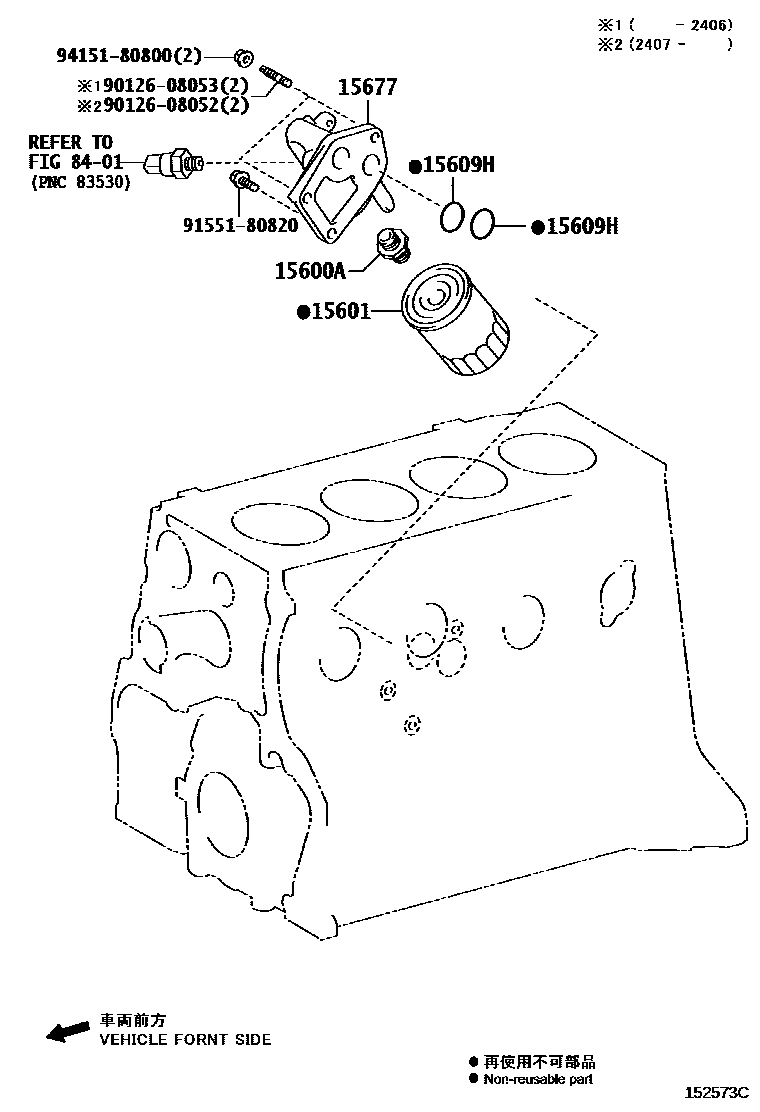

Toyota HIACE — OIL FILTER

0001 1 0002 1EXCEPT EURO 5 REGULATION 0008 1EURO 5 REGULATION 0012 1SINGAPOLE SPEC 0013 1 0014 1 0015 1 0019 1

15600AUNION(FOR OIL FILTER)

main90404-19002i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV,2KDFTV..KDH201,220..02S,05S,06S;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS,VN);1K¥380201312-202312

main90404-19011i5LE..LH200..5D¥320201707-202506

main90404-19015i1GDFTV..GDH201,223¥410201701

main90404-19017i2TRFE..TRH203..MA¥400201504-201611

TYPE B

main90404-19022i2TRFE..TRH213,223..GL..SA¥310201312-202506

main90404-T0002i2TRFE..TRH203..MA201401-201504

main90404-T0002i2TRFE..TRH203..MA201504-201611

TYPE A

15601FILTER SUB-ASSY, OIL

main15600-41010i5LE..LH20#,212,222..4D¥1,470201312-202004

sub90915-40002¥1,470

main90915-20003i2KDFTV..KDH200..LHD..4D;1KDFTV,2KDFTV..KDH200,223..RHD..(GEN,TH)¥1,470201312-202009

sub90915-20005¥1,470

main90915-20005i2KDFTV..KDH200,212,220..SA¥1,470202010-202301

main90915-20005i2TRFE..TRH213,223..GL¥1,470202009-202506

W/O(OIL COOLER)

main90915-40002i5LE..LH20#,222¥1,470202004-202506

main90915-TB001i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90915-TB001i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90915-TB001i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54014i5LE..LH200..5D¥25,500201312-202506

main15609-75070i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)¥8,200201312-202506

main15609-75080i1TRFE..TRH200..4FC;1TRFE..TRH200..03S..6FC¥7,700201312-202507

main15609-75100i2TRFE..TRH201,22#..ARL¥9,100201501-201902

LPG CONVERSION PACKAGE

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-68005i1TRFE..TRH200..5F¥200201312-202507

main96723-24030i1GDFTV..GDH201,223¥130201701

15677BRACKET, OIL FILTER

main15677-11020i1GDFTV..GDH201,223¥6,700201701

8401

9012608052

main90126-08052¥80

9012608053

main90126-08053¥260

9155180820

main91551-80820¥80

9415180800

main94151-80800¥80

10 parts on this diagram · 8 diagrams in section
