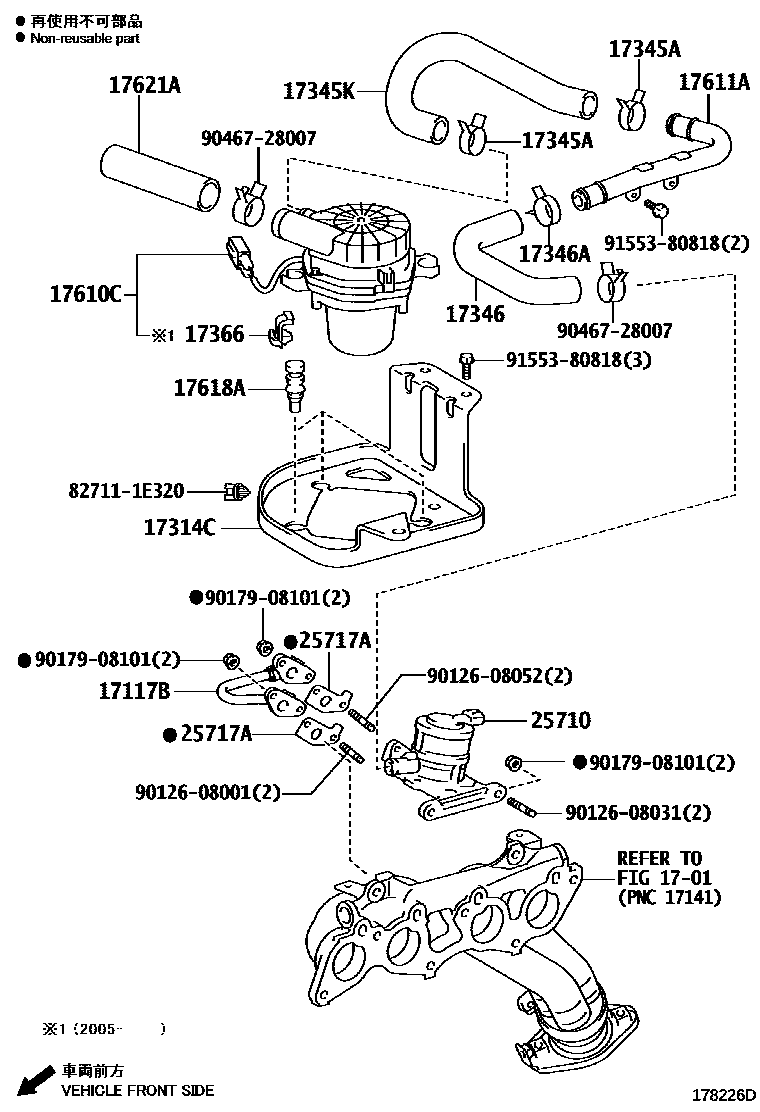

Toyota HIACE — MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

1701

17117BPIPE, INTAKE, NO.4

main17117-75011i2TRFE..TRH223..LHD..STD..GEN¥3,090201312-201902

PAKISTAN SPEC

main17117-75011i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥3,090201312-201902

MEXICO SPEC

main17117-75011i2TRFE..TRH223..5F..STD..GCC¥3,090201708-201902

EGYPT SPEC

main17117-75011i2TRFE..TRH223..LHD..STD..GEN¥3,090201312-202507

main17117-75011i2TRFE..TRH203..4FC¥3,090201908

NIGERIA SPEC

17314CBRACKET, AIR PUMP

main17314-0C030i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)¥8,700201312-202312

main17314-0C030i2TRFE..TRH203..4FC¥8,700201312-201902

PAKISTAN SPEC

main17314-0C030i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥8,700201312-201902

MEXICO SPEC

main17314-0C030i2TRFE..TRH223..5F..STD..GCC¥8,700201712-201902

EGYPT SPEC

main17314-0C030i2TRFE..TRH221..SG;2TRFE..TRH223..GCC¥8,700201908

NIGERIA SPEC

main17314-0W060i1TRFE..TRH200201501-202507

17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)

main96134-52600i2TRFE..TRH223..5F..STD..GCC¥200201712-201902

EGYPT SPEC

main96134-52600i2TRFE..TRH203..4FC¥200201312-201902

PAKISTAN SPEC

main96134-52600i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥200201312-201902

MEXICO SPEC

main96134-52600i2TRFE..TRH223..LHD..STD..GEN¥200201312-202507

main96134-52600i2TRFE..TRH203..4FC¥200201908

NIGERIA SPEC

17345KHOSE, AIR, NO.5

main17345-75060i2TRFE..TRH223..RHD..GEN¥1,940201312-201902

PAKISTAN SPEC

main17345-75060i2TRFE..TRH223..5F..GCC¥1,940201712-201902

EGYPT SPEC

main17345-75060i2TRFE..TRH221..SG;2TRFE..TRH223..GCC¥1,940201908

NIGERIA SPEC

main17345-75060i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥1,940201312-201902

MEXICO SPEC

main17345-75060i2TRFE..TRH223..LHD..STD..GEN¥1,940201312-202507

17346HOSE, NO.6(FOR AIR INJECTION SYSTEM)

main17346-75050i1TRFE..TRH200..6FC¥1,040201312-202507

main17346-75050i2TRFE..TRH203..4FC¥1,040201312-201901

PAKISTAN SPEC

main17346-75060i2TRFE..TRH221..SG;2TRFE..TRH223..GCC¥1,300201911

NIGERIA SPEC

main17346-75060i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥1,300201312-201902

MEXICO SPEC

main17346-75060i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥1,300201312-201902

PAKISTAN SPEC

main17346-75060i2TRFE..TRH223..5F..STD..GCC¥1,300201712-201902

EGYPT SPEC

main17346-75060i2TRFE..TRH223..LHD..STD..GEN¥1,300201312-202312

17346ACLAMP OR CLIP, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6)

main96134-52600i2TRFE..TRH203..4FC¥200201312-201902

PAKISTAN SPEC

main96134-52600i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥200201312-201902

MEXICO SPEC

main96134-52600i2TRFE..TRH223..5F..STD..GCC¥200201712-201902

EGYPT SPEC

main96134-52600i2TRFE..TRH223..LHD..STD..GEN¥200201312-202507

main96134-52600i2TRFE..TRH203..4FC¥200201908

NIGERIA SPEC

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0P010i2TRFE..TRH22#..ARL,RUS¥100201501-201902

17610CPUMP ASSY, AIR

main17610-0C010i2TRFE..TRH203..4FC¥34,100201312-201902

PAKISTAN SPEC

main17610-0C010i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)¥34,100201312-202312

main17610-0C010i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥34,100201312-201902

MEXICO SPEC

main17610-0C010i2TRFE..TRH223..5F..STD..GCC¥34,100201712-201902

EGYPT SPEC

main17610-0C010i2TRFE..TRH203..4FC¥34,100201908

NIGERIA SPEC

main17610-0C050i1TRFE..TRH200¥34,100201501-202507

17611APIPE, AIR PUMP INLET

main17611-75010i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥1,800201312-201902

MEXICO SPEC

main17611-75010i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥1,800201312-201902

PAKISTAN SPEC

main17611-75010i2TRFE..TRH223..5F..STD..GCC¥1,800201712-201902

EGYPT SPEC

main17611-75010i2TRFE..TRH223..LHD..STD..GEN¥1,800201312-202507

main17611-75010i2TRFE..TRH203..4FC¥1,800201908

NIGERIA SPEC

17618AINSULATOR, AIR PUMP

main17618-0C010i2TRFE..TRH223..LHD..STD..GEN¥730201312-201902

PAKISTAN SPEC

main17618-0C010i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥730201312-201902

MEXICO SPEC

main17618-0C010i2TRFE..TRH223..5F..STD..GCC¥730201712-201902

EGYPT SPEC

main17618-0C010i2TRFE..TRH223..LHD..STD..GEN¥730201312-202507

main17618-0C010i2TRFE..TRH203..4FC¥730201908

NIGERIA SPEC

17621AINLET, AIR PUMP

main17621-75010i2TRFE..TRH203..4FC¥620201312-201902

PAKISTAN SPEC

main17621-75010i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥620201312-201902

MEXICO SPEC

main17621-75010i2TRFE..TRH223..5F..STD..GCC¥620201712-201902

EGYPT SPEC

main17621-75010i2TRFE..TRH223..LHD..STD..GEN¥620201312-202507

main17621-75010i2TRFE..TRH203..4FC¥620201908

NIGERIA SPEC

25710VALVE ASSY, AIR SWITCHING

main25710-75015i2TRFE..TRH201,221..GCC¥15,700201312-202507

MARK=25710-75015

main25710-75015i2TRFE..TRH203..4FC¥15,700201312-201902

PAKISTAN SPEC,MARK=25710-75015

main25710-75015i2TRFE..TRH221..SG;2TRFE..TRH223..4FC..STD..GCC¥15,700201312-201902

MEXICO SPEC,MARK=25710-75015

main25710-75015i2TRFE..TRH223..5F..STD..GCC¥15,700201708-201902

EGYPT SPEC,MARK=25710-75015

main25710-75015i2TRFE..TRH213..LHD;2TRFE..TRH201,22#..GCC¥15,700202108

NIGERIA SPEC,MARK=25710-75015

main25710-75025i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..GL..GEN¥17,300201312-202108

MARK=25710-75025

main25710-75025i2TRFE..TRH203..RHD¥17,300201908-202108

PAKISTAN SPEC,MARK=25710-75025

main25710-75025i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..GL..GEN¥17,300201907-202108

NIGERIA SPEC,MARK=25710-75025

25717AGASKET, AIR SWITCHING VALVE

main25717-75010i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GL..GEN¥220201312-201902

MEXICO SPEC

main25717-75010i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GL..GEN¥220201312-201902

PAKISTAN SPEC

main25717-75010i2TRFE..TRH223..5F..STD..GCC¥220201708-201902

EGYPT SPEC

main25717-75010i2TRFE..TRH223..LHD..STD..GEN¥220201312-202507

main25717-75010i2TRFE..TRH223..GL..GEN¥220201908

NIGERIA SPEC

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320¥70

9012608001

main90126-08001¥240

9012608031

main90126-08031¥310

9012608052

main90126-08052¥80

9017908101

main90179-08101¥90

9046728007

main90467-28007¥240

9155380818

main91553-80818¥80

21 parts on this diagram · 2 diagrams in section
