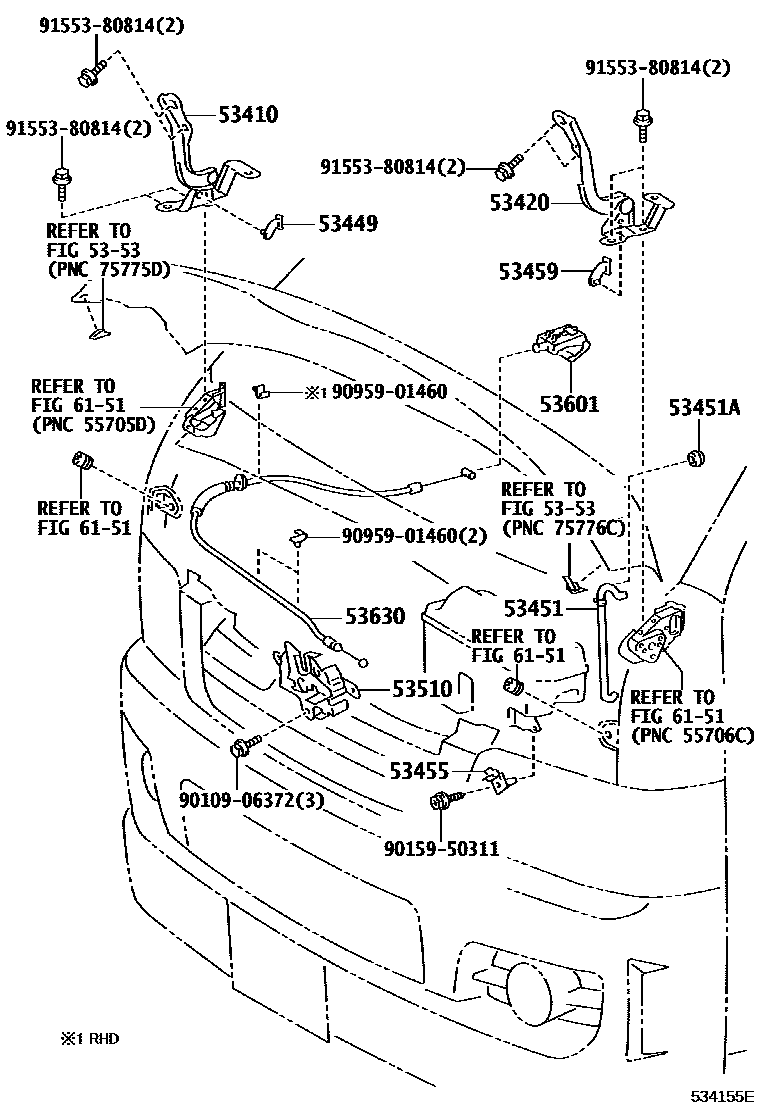

Toyota HIACE — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-26040iGDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#¥2,100201312-201711

sub53410-26041¥1,590

main53410-26041iKDH223..5F..TH¥1,590201711-202507

53420HINGE ASSY, HOOD, LH

main53420-26040iGDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#¥2,100201312-201711

sub53420-26041¥1,590

main53420-26041iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,590201711-202507

53449PLATE, HOOD HINGE ARM STOP, RH

main53449-26010iTRH221..SA¥220201312-202507

53451ROD, HOOD SUPPORT

main53451-26050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥490201312-202507

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥110201312-202507

53455CLAMP, HOOD SUPPORT ROD

main53455-26020iTRH200..03S..6FC¥200201312-202507

53459PLATE, HOOD HINGE ARM STOP, LH

main53459-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥220201312-202507

53510LOCK ASSY, HOOD

main53510-0L010iKDH203..TH;KDH201,202,TRH203..MA201401-202312

main53510-26060iTRH200..03S..6FC¥2,010201312-202507

main53510-26070iTRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH203..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH212,TRH201,213..LHD¥2,010201312-202506

5353

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100iKDH201,TRH213..TH;KDH213,222,223..GL..GEN¥1,410201902-201906

main53601-30100-C0iKDH223..TH;TRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201902-202507

BLACK,TRIM1#

main53601-52010-C0iKDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#201312-201612

BLACK,TRIM1#

sub53601-52010¥2,230

main53601-52010-C1iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201612-201910

BLACK,TRIM1#

sub53601-52010¥2,230

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0L010iKDH200,202,203,TRH203..MA,TH201401-201910

main53630-0L011iKDH200..MA201910-202312

main53630-0L020iKDH223,TRH223..TH201401-201904

main53630-0L040iKDH223..VN201801-201904

main53630-26041iLH200..5D;KDH200..RHD..(GEN,SA)¥1,320201312-201902

main53630-26042iTRH200..03S..6FC¥990201902-202507

main53630-26050iKDH200..LHD..5D;KDH201,202,203,LH20#,TRH201,203..LHD..5F¥1,340201312-201902

main53630-26051iKDH200..LHD..5D;TRH203..LHD..GEN;KDH202,203,TRH201..LHD201902-202506

main53630-26061iTRH223..RHD..(ARL,GEN,SA);KDH223,TRH213..RHD..(11S,14S);KDH21#,220,221,222,LH212,222,TRH221..RHD..(02S,03S,06S,11S,14S,16S)¥1,320201312-201902

main53630-26062iTRH223..STD..SA;KDH222..RHD..16S;KDH223..STD..(GEN,KEN);GDH223,TRH213..4FC,6FC¥990201902-202312

main53630-26071iKDH21#,220,222,223,LH212,222,TRH213,22#..LHD..(GCC,GEN,RUS)¥1,340201312-201902

main53630-26072iTRH221..SP..GEN;TRH223..GL..GEN201902-202506

6151

9010906372

main90109-06372¥60

9015950311

main90159-50311¥70

9095901460

main90959-01460¥220

9155380814

main91553-80814¥80

16 parts on this diagram · 1 diagram in section
