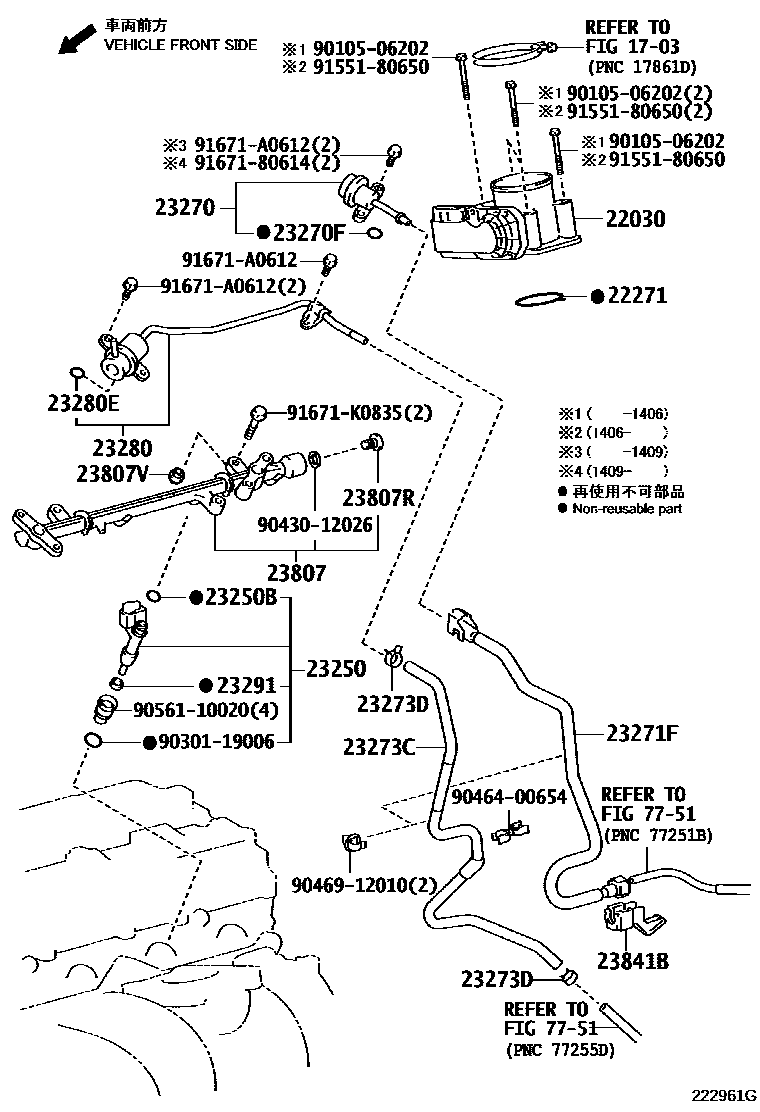

Toyota HIACE — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0007 1

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C020i2TRFE..TRH203..MA201401-201611

main22030-37050i1TRFE..TRH200..03S..6FC¥52,700201501-202507

main22030-75010i1TRFE..TRH200¥58,000201312-201501

main22030-75020i2TRFE..TRH213..RHD..GEN¥52,700201312-202506

main22030-75040i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)¥52,700201501-201902

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)¥460201312-202506

main22271-37010i1TRFE..TRH200..4FC;1TRFE..TRH200..03S..6FC¥340201312-202507

main22271-75070i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)¥340201501-201902

23250INJECTOR ASSY, FUEL

main23209-09045i2TRFE..TRH203..MA201401-201611

sub23209-79155¥20,100

main23209-09055i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..(03S,15S,16S)..GEN201312-201501

main23209-79155i2TRFE..TRH221..SG;2TRFE..TRH201,213,22#..(02S,06S,10S,12S,14S)..5F..(ARL,GEN,RUS)¥20,100201312-201501

MEXICO SPEC,*272

sub23209-79205¥13,900

main23209-79155i2TRFE..TRH221..SG;2TRFE..TRH201,213,22#..(02S,06S,10S,12S,14S)..5F..(ARL,GEN,RUS)¥20,100201312-201501

LPG CONVERSION PACKAGE,*271

sub23209-79205¥13,900

main23209-79155i2TRFE..TRH223..LHD..STD..GEN¥20,100201312-201501

*272

sub23209-79205¥13,900

main23209-79155i2TRFE..TRH223..LHD..STD..GEN¥20,100201312-201501

MOROCCO SPEC,*272

sub23209-79205¥13,900

main23209-79155i2TRFE..TRH223..TH¥20,100201401-201501

*271

sub23209-79205¥13,900

main23209-79186i2TRFE..TRH203..4FC;2TRFE..TRH213,223..RHD..GEN¥12,700201312-202005

*272

main23209-79186i2TRFE..TRH213,223..GL¥12,700202005-202506

main23209-79205i1TRFE..TRH200..4FC¥13,900201312-201904

main23209-79215i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)¥12,600201501-201902

LPG CONVERSION PACKAGE,*271

main23209-79225i1TRFE..TRH200..03S..6FC¥12,600201501-202507

*271

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2TRFE..TRH223..TH¥140201312-202506

main90301-07037i2TRFE..TRH203..MA¥140201506-201611

(J)

main90301-07042i1TRFE..TRH200¥140201501-202507

main90301-T0051i2TRFE..TRH203..MA201506-201611

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75010i1TRFE..TRH200;2TRFE..TRH223..TH¥6,400201312-201502

sub23270-75050¥4,020

main23270-75050i1TRFE..TRH200..03S..6FC¥4,020201409-202507

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..¥140201312-202507

23271FHOSE, FUEL

main23271-75190i1TRFE..TRH200..6FC¥2,060201312-202203

sub23271-V3010¥1,860

main23271-75200i2TRFE..TRH213,22#¥3,070201312-201603

sub23271-75201¥2,120

main23271-75201i2TRFE..TRH221..SG;2TRFE..TRH223..GCC;2TRFE..TRH223..GL..GEN¥2,120201604-202203

sub23271-V3020¥1,930

main23271-V3010i2TRFE..TRH201;2TRFE..TRH203..GEN¥1,860202204-202507

main23271-V3020i2TRFE..TRH213,221..RHD..STD¥1,930202204-202312

23273CHOSE, FUEL, NO.2

main23273-75261i2TRFE..TRH203..5F..GCC¥1,990201312-202506

main23273-75270i2TRFE..TRH221..SG;2TRFE..TRH223..GCC;2TRFE..TRH223..GL..GEN¥2,010201312-202312

main23273-75360i1TRFE..TRH200¥2,790201501-202507

main23273-75370i2TRFE..TRH22#..ARL,RUS¥2,790201501-201902

23273DCLIP(FOR FUEL HOSE NO.2)

main96135-51100i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥130201312-202507

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75040i2TRFE..TRH201..03S;2TRFE..TRH201..06S..GCC;2TRFE..TRH201,22#..RHD..4FC;1TRFE,2TRFE..TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,MA,SA,TH)¥8,000201312-201805

sub23280-75130¥6,000

main23280-75100i1TRFE..TRH200¥6,000201501-202507

main23280-75130i2TRFE..TRH213..RHD..GEN¥6,000201806-202506

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥140201312-202507

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010i2TRFE..TRH203..MA201401-201611

main23291-73010i1TRFE..TRH200..4FC¥250201312-202507

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0C010i2TRFE..TRH203..MA201401-201502

sub23807-0C012

main23807-0C012i2TRFE..TRH203..MA201502-201611

main23807-75050i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH¥7,700201312-201410

sub23807-75052¥8,900

main23807-75052i2TRFE..TRH201..03S;2TRFE..TRH201..06S..GCC;2TRFE..TRH201,22#..RHD..4FC;1TRFE,2TRFE..TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,SA,TH)¥8,900201410-201808

sub23807-75082¥6,600

main23807-75082i2TRFE..TRH213..RHD..GEN¥6,600201809-202506

23807RPLUG, FUEL DELIVARY PIPE

main90341-12030i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)¥120201312-202506

main90341-T0008i2TRFE..TRH203..MA201401-201611

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-75020i1TRFE..TRH200¥240201501-202507

main90561-08036i2TRFE..TRH203..5F..GCC¥80201312-202506

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥220201312-202507

7751

9010506202

main90105-06202¥90

9030119006

main90301-19006¥210

9043012026

main90430-12026¥90

9046400654

main90464-00654¥190

9046912010

main90469-12010¥110

9056110020

main90561-10020¥90

9155180650

main91551-80650¥80

9167180614

main91671-80614¥60

91671A0612

main91671-A0612¥60

91671K0835

main91671-K0835¥90
