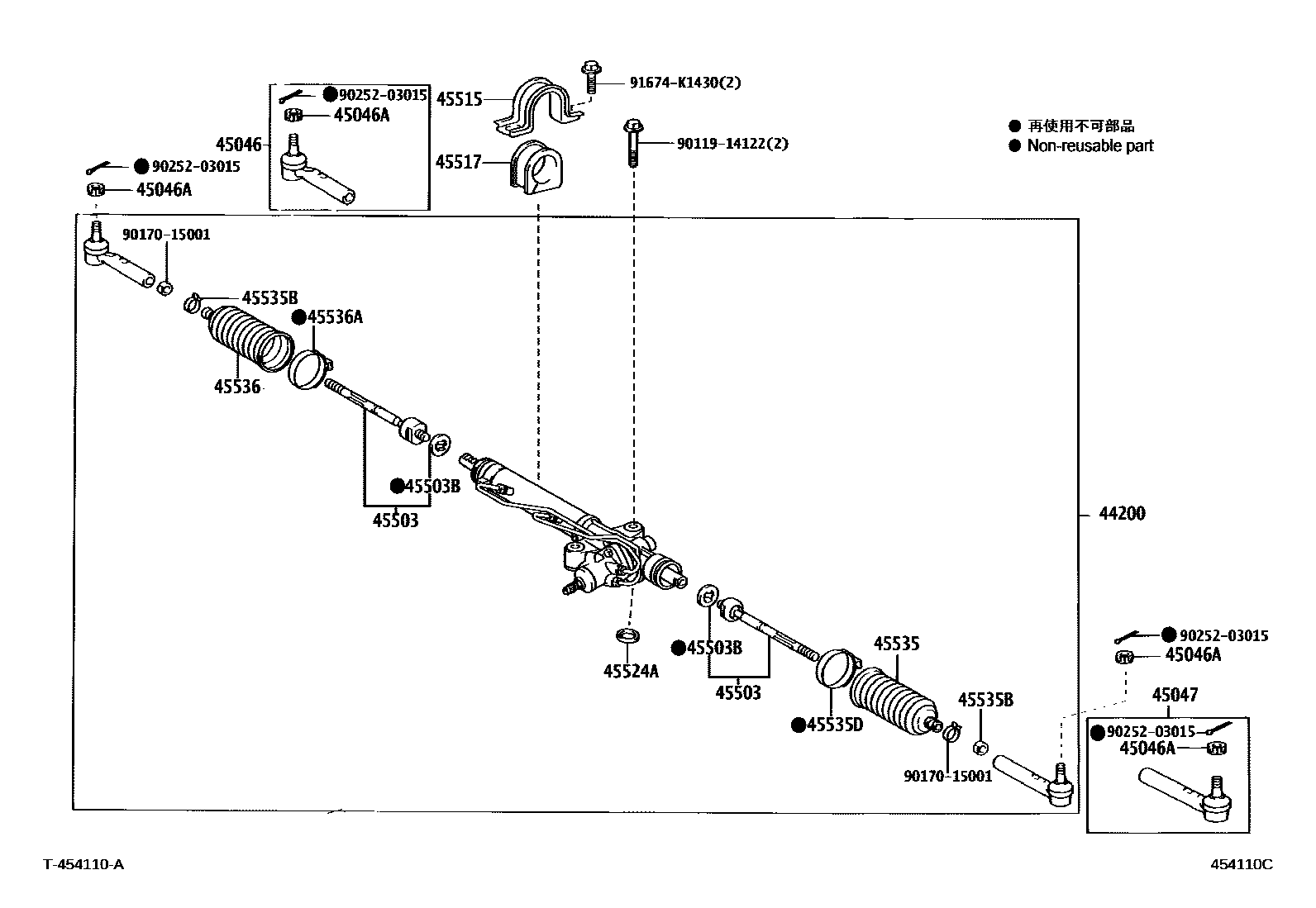

Toyota HIACE — FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44200LINK ASSY, POWER STEERING

main44200-26410iKDH20#,LH20#,TRH20#..RHD¥120,000201312-201412

sub44200-26411¥99,700

main44200-26411iKDH200..MA;LH200..RHD..4D;GDH201,KDH201,202,203,LH202,TRH20#..RHD¥99,700201501-201912

sub44200-26412¥83,100

main44200-26412iTRH200;KDH200..SA¥83,100202001-202204

sub44200-V3010¥75,500

main44200-26530iKDH20#,LH20#,TRH201,203..LHD201312-201412

sub44200-26531¥99,700

main44200-26531iKDH200..LHD..5D;KDH201,202,203,LH20#,TRH201,203..LHD..5F¥99,700201501-201912

sub44200-26532

main44200-26532iKDH200,202,203,LH20#,TRH201,203..LHD202001-202204

sub44200-V3020¥75,500

main44200-26540iKDH21#,22#,LH212,222,TRH213,22#..RHD¥120,000201312-201412

sub44200-26541¥99,700

main44200-26541iTRH221..SA¥99,700201501-201912

sub44200-26542¥83,100

main44200-26542iKDH212,220,TRH213,223..03S,10S,14S¥83,100202001-202205

sub44200-V3030¥75,500

main44200-26550iKDH212,220,222,223,LH212,222,TRH213,22#..LHD¥120,000201312-201412

sub44200-26551¥99,700

main44200-26551iKDH222..GL..GCC¥99,700201501-201912

sub44200-26552¥83,100

main44200-26552iKDH222,LH222,TRH213,22#..LHD¥83,100202001-202204

sub44200-V3040¥75,500

main44200-V3010iKDH201..4D..5F;GDH201,KDH200,202,TRH203..RHD..GEN¥75,500202205-202507

main44200-V3020iTRH203..LHD..GEN;KDH200,202,203,TRH201..LHD¥75,500202205-202506

main44200-V3030iKDH212..GEN;KDH223..ARL¥75,500202205-202312

main44200-V3040iLH222¥75,500202205-202506

45046END SUB-ASSY, TIE ROD, RH

main45046-29456iKDH223..4FC..ARL;KDH201,203,212..RHD..(02S,03S,16S)..GEN¥2,440201312-202507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14009iTRH200..6FC¥60201312-202507

45047END SUB-ASSY, TIE ROD, LH

main45046-29456iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥2,440201312-202507

45503END SUB-ASSY, STEERING RACK

main45503-29836iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥4,940201312-202507

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14013iKDH222..KEN¥120201312-202507

OD=43

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-26110iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥810201312-202507

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-26060iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥640201312-202507

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥350201312-202507

45535BOOT, STEERING RACK, NO.1

main45535-26060iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥520201312-202507

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥180201312-202507

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥240201312-202507

45536BOOT, STEERING RACK, NO.2

main45535-26060iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥520201312-202507

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥240201312-202507

9011914122

main90119-14122¥360

9017015001

main90170-15001¥130

9025203015

main90252-03015¥90

91674K1430

main91674-K1430¥240

18 parts on this diagram · 3 diagrams in section
