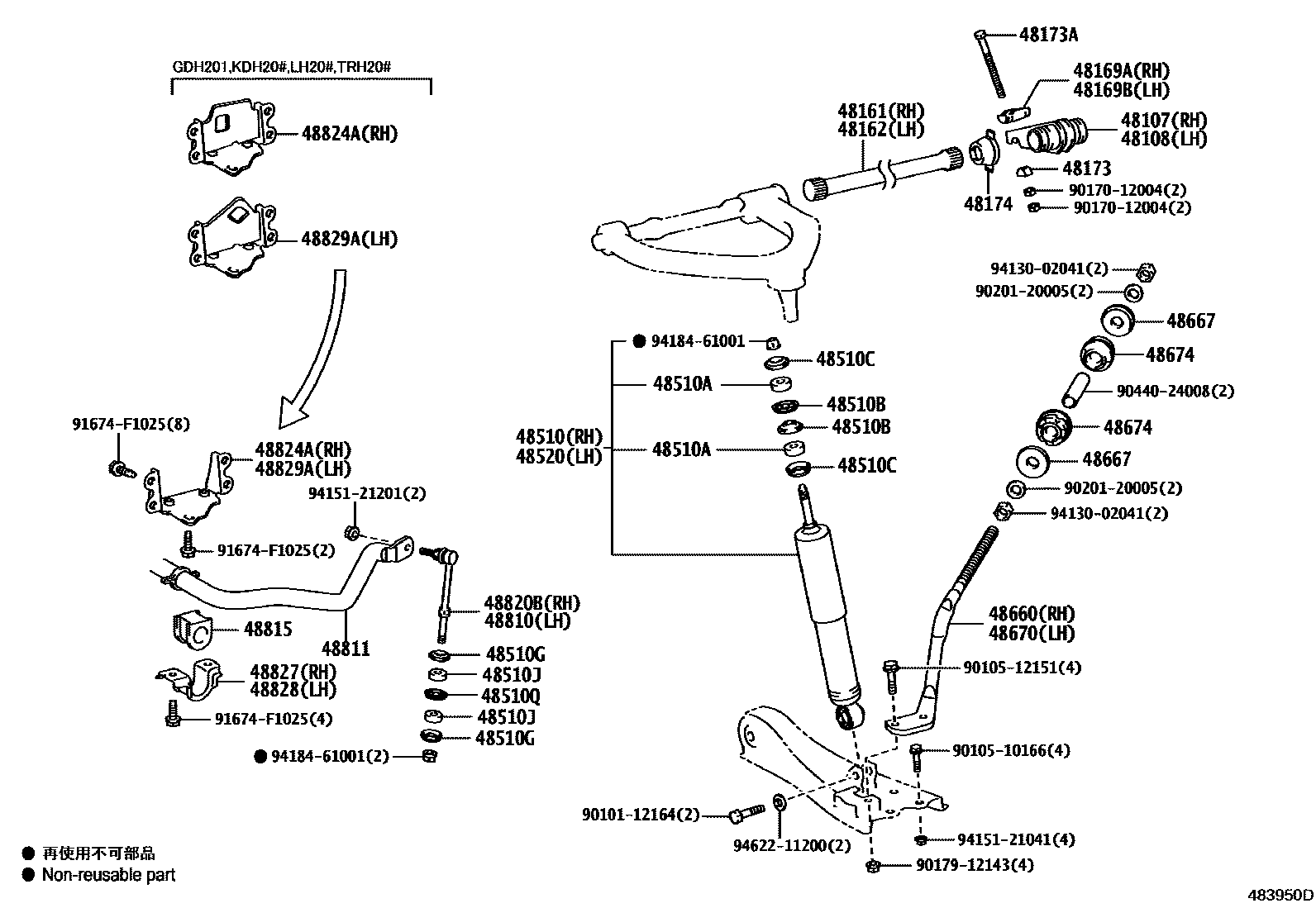

Toyota HIACE — FRONT SPRING & SHOCK ABSORBER

48107ARM SUB-ASSY, ANCHOR, RH

main48107-26080iKDH222..KEN¥3,770201312-202507

48108ARM SUB-ASSY, ANCHOR, LH

main48108-26080iTRH213..RHD..GEN¥3,770201312-202507

48161SPRING, TORSION BAR, RH

main48161-26500iKDH212,TRH213..SA¥16,600201312-202312

main48161-26510iTRH203..4FC¥16,800201312-202506

main48161-26520iLH202,TRH200..5F¥17,100201312-202506

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48161-26520iTRH200..03S..6FC¥17,100201312-202507

main48161-26530iTRH221..SG;TRH223..GCC¥17,300201312-202506

main48161-26540iKDH220,221..ARL,GEN;KDH220,222,TRH223..(06S,16S)..SA¥17,500201312-202107

48162SPRING, TORSION BAR, LH

main48162-26500iKDH212..SA;TRH213..RHD..5F¥16,600201312-202312

main48162-26510iTRH203..4FC¥16,800201312-202506

main48162-26520iKDH222..KEN¥17,100201312-202507

main48162-26520iKDH222..GL..SA¥17,100201312-202506

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48162-26530iTRH221..SG;TRH223..GCC¥17,300201312-202506

main48162-26540iKDH220,221..ARL,GEN;KDH220,222,TRH223..(06S,16S)..SA¥17,500201312-202107

48169ASWIVEL, ANCHOR ARM, RH

main48169-26060iKDH200..MA¥1,060201312-202507

48169BSWIVEL, ANCHOR ARM, LH

main48169-26060iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,060201312-202507

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iKDH222..KEN¥440201312-202507

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12165iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥370201312-202507

48174COVER, TORSION BAR DUST

main48174-34010iTRH200..03S..6FC¥320201312-202507

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80101iKDH202,203,21#,LH202,212,TRH203,213¥8,600201312-201701

MARK 48511-26630

sub48511-80165¥5,300

main48511-80102iKDH220,221,TRH22#..02S,03S,06S,10S¥8,600201312-201701

MARK 48511-26640

sub48511-80166¥5,300

main48511-80107iKDH222..STD..GCC;KDH222,LH222..GEN;TRH223..5F..GL..GEN;TRH223..STD..(GCC,GEN)¥8,600201312-201701

MARK 48511-26650,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

sub48511-80169¥5,300

main48511-80107iKDH222..STD..GCC;KDH222,LH222..GEN;TRH223..5F..GL..GEN;TRH223..STD..(GCC,GEN)¥8,600201312-201701

MARK 48511-26650

sub48511-80169¥5,300

main48511-80126iKDH222,TRH223..STD..SA201402

MARK 48511-26740

main48511-80128iKDH222,223,LH222,TRH223..16S..(GCC,GEN,TH)201312-201701

MARK 48511-26760

sub48511-80174¥4,570

main48511-80165iTRH213..RHD..GEN¥5,300201701-202506

MARK 48511-26630

main48511-80166iTRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S¥5,300201701-202312

MARK 48511-26640

main48511-80169iKDH222..KEN¥5,300201701-202507

MARK 48511-26650

main48511-80169iKDH223..TH;TRH223..GEN¥5,300201701-202506

MARK 48511-26650,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48511-80174iKDH223..5F..TH¥4,570201701-202506

MARK 48511-26760

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01031iKDH200..MA¥200201312-202507

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥320201312-202507

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥170201312-202507

48510GRETAINER, FRONT SHOCK ABSORBER

main90948-02193iTRH223..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)¥200201312-202507

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main48817-26020iTRH221..SA¥260201312-202507

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02005iTRH223..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)¥140201312-202507

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80101iKDH202,203,21#,LH202,212,TRH203,213¥8,600201312-201701

MARK 48511-26630

sub48511-80165¥5,300

main48511-80102iKDH220,221,TRH22#..02S,03S,06S,10S¥8,600201312-201701

MARK 48511-26640

sub48511-80166¥5,300

main48511-80107iKDH200,201,222,223,LH200,TRH200,201,223..02S,03S,05S,06S,12S,13S,14S¥8,600201312-201701

MARK 48511-26650

sub48511-80169¥5,300

main48511-80107iKDH200,201,222,223,LH200,TRH200,201,223..02S,03S,05S,06S,12S,13S,14S¥8,600201312-201701

MARK 48511-26650,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

sub48511-80169¥5,300

main48511-80126iKDH222,TRH223..STD..SA201402

MARK 48511-26740

main48511-80128iKDH222,223,LH222,TRH223..16S..(GCC,GEN,TH)201312-201701

MARK 48511-26760

sub48511-80174¥4,570

main48511-80165iKDH212..SA;TRH203..4FC;TRH213..RHD..5F¥5,300201701-202506

MARK 48511-26630

main48511-80166iKDH220..03S..SA;TRH221..03S..(GEN,SA)¥5,300201701-202312

MARK 48511-26640

main48511-80169iKDH223..4FC..ARL;KDH201..RHD..03S..GEN¥5,300201701-202507

MARK 48511-26650

main48511-80169iKDH222,TRH223..GL..SA¥5,300201701-202506

MARK 48511-26650,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48511-80174iTRH223..LHD..STD..GEN¥4,570201701-202506

MARK 48511-26760

48660BAR ASSY, STRUT, RH

main48661-26050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥3,230201312-202507

48667RETAINER, STRUT BAR

main48667-26010iTRH200..6FC¥470201312-202507

48670BAR ASSY, STRUT, LH

main48661-26050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥3,230201312-202507

48674CUSHION, STRUT BAR

main48674-26040iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥800201312-202507

48810LINK ASSY, FRONT STABILIZER, LH

main48820-26051iKDH200..SA¥4,420201312-202507

48811BAR, STABILIZER, FRONT

main48811-26390iLH200..5D¥8,000201312-202507

main48811-26410iTRH221..SA¥8,900201312-202312

main48811-26460iKDH222..KEN201312-202506

main48811-26470iKDH222,TRH223..STD..SA201402

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26370iLH20#..4D;LH222..LHD;TRH200..5F;TRH203..5F..GCC¥590201312-202507

main48815-26380iKDH212..SA;TRH213..RHD..5F¥630201312-202312

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-26051iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥4,420201312-202507

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26250iTRH200..6FC¥2,200201312-202507

main48824-26260iKDH213..TH¥2,870201312-202506

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-26230iLH200..5D¥1,020201312-202507

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-26230iTRH200..03S..6FC¥1,020201312-202507

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-26170iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)¥2,200201312-202507

main48829-26180iKDH212..16S..GEN;KDH223..4FC..ARL¥2,890201312-202506

9010112164

main90101-12164¥310

9010510166

main90105-10166¥200

9010512151

main90105-12151¥240

9017012004

main90170-12004¥230

9017912143

main90179-12143¥140

9020120005

main90201-20005¥170

9044024008

main90440-24008¥450

91674F1025

main91674-F1025¥120

9413002041

main94130-02041¥190

9415121041

main94151-21041¥100

9415121201

main94151-21201¥100

9418461001

main94184-61001¥80

9462211200

main94622-11200¥200

42 parts on this diagram · 1 diagram in section
