Toyota HIACE — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-26022iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥2,240201312-202507

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-26012iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥2,240201312-202507

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-26012iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥2,240201312-202507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-26022iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥2,240201312-202507

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12080-B3iKDH222..RHD..GL..GEN201312-202506

DK.GRAY,TRIM1#

sub69260-12080¥1,610

main69260-12080-B3iKDH222..RHD..GL..GEN201312-201902

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#

sub69260-12080¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90524-15006iKDH222..RHD..GL..GEN¥80201312-201902

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main90524-15006iKDH200,220..SA¥80201312-202506

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-26050iKDH220..03S..SA;KDH223..4FC..ARL;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC¥4,250201312-202506

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main69801-26050iKDH223..5F..TH¥4,250201312-202507

main69810-26080iLH200..5D¥4,250201312-202506

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-26050iKDH220..03S..SA;KDH223..4FC..ARL;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC¥4,250201312-202506

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main69802-26050iKDH222..KEN¥4,250201312-202507

main69820-26060iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..STD..(GEN,SA)¥4,250201312-202506

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iTRH221..GEN;KDH222,TRH223..STD..GCC¥15,900201312-201902

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main85710-35180iKDH222..GL..GCC¥15,900201909

main85710-58010iKDH213..TH¥20,900201312-202507

main85710-58010iKDH212,TRH213,223..GL..SA¥20,900201312-202506

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140iKDH223..TH¥15,900201312-202506

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main85720-35140iTRH200..03S..6FC¥15,900201312-202507

main85720-58010iKDH222..GL..GCC;TRH223..5F..GL..GEN¥20,900201312-201902

POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main85720-58010iKDH222..GL..GCC¥20,900201909

5876826010

main58768-26010¥450

9010506260

main90105-06260¥60

9010508320

main90105-08320¥90

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9016850040

main90168-50040¥70

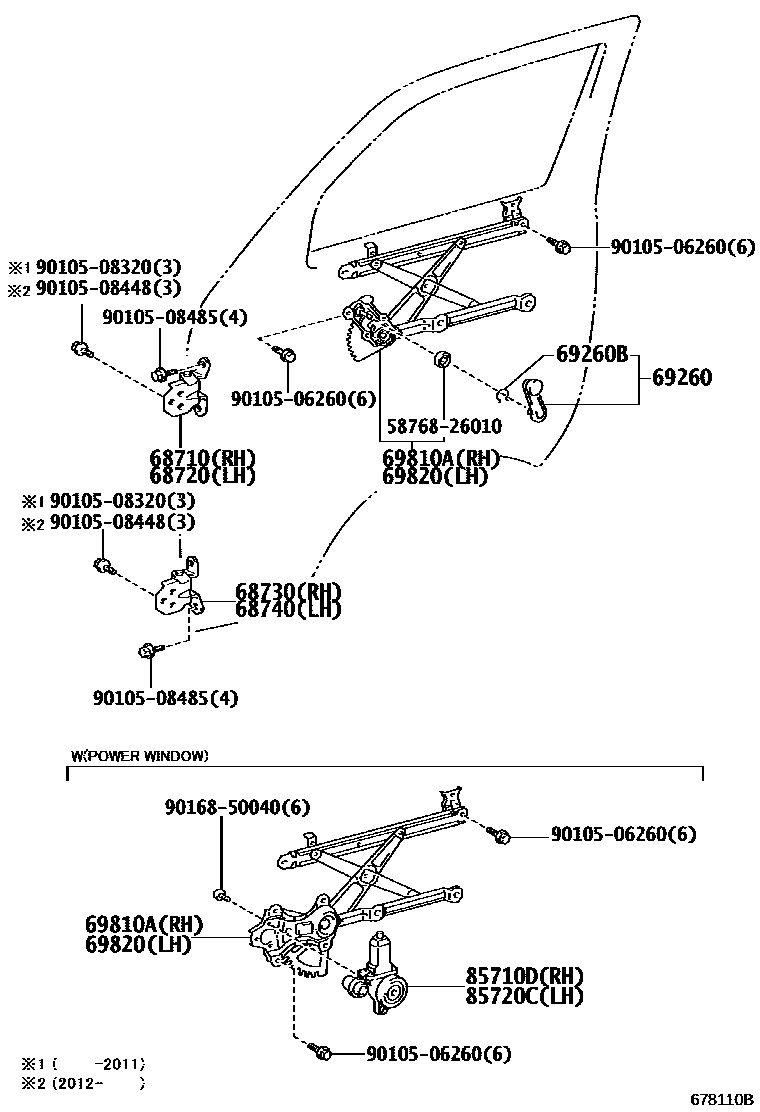

16 parts on this diagram · 1 diagram in section
