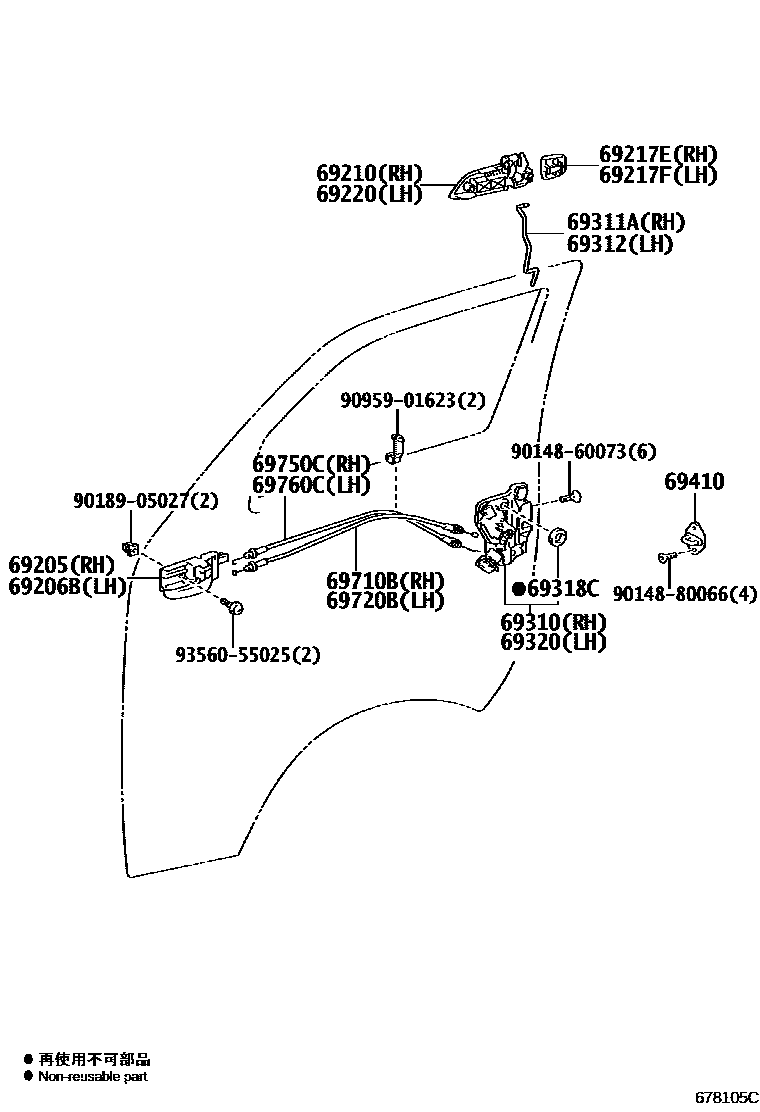

Toyota HIACE — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12200-B1iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-202507

DK.GRAY,TRIM1#

sub69205-12200¥3,040

sub69205-0D070

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12200-B1iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA201312-202507

DK.GRAY,TRIM1#

sub69206-12200¥3,040

sub69206-0D070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-26040iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..STD..(GEN,SA)¥4,100201312-202507

NO PAINT REQ.

main69210-26050iKDH212,TRH213..SA¥4,100201312-202107

PLATED

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-26010iKDH200..MA¥450201312-202507

BLACK

main69217-26020iKDH212,TRH213..SA¥740201312-202401

*CR

main69217-26040iKDH223..VN201801-201904

BLACK

main69217-26050iKDH222..GL..GCC201606

*CR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-26010iKDH201,203,212..RHD..(02S,03S,16S)..GEN¥450201312-202507

BLACK

main69218-26020iTRH223..GL..GEN¥740201312-201902

*CR

main69218-26040iKDH223..4FC..ARL¥710201606-202301

BLACK

main69218-26050iTRH213..TH¥1,330201606-202107

*CR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-26040iTRH221..SA¥4,100201312-202507

NO PAINT REQ.

main69220-26050iKDH212,TRH213..SA¥4,100201312-202107

PLATED

69310LOCK ASSY, FRONT DOOR, RH

main69030-26140iKDH223..TH¥10,800201312-202506

POWER DOOR LOCK-WITH

main69030-26140iKDH223..5F..TH¥10,800201312-202507

main69030-26151iTRH223..GL..(GCC,RUS);KDH21#,222,223,TRH213..LHD..GL..(GEN,RUS)¥10,800201312-202401

main69030-26151iTRH221..GEN;KDH222,TRH223..STD..GCC¥10,800201312-201902

POWER DOOR LOCK-WITH

main69030-26160iKDH222..GL..GCC201606

main69310-26050iKDH222..RHD..STD..GEN;KDH201,TRH201..MA,SA,TH;KDH202,220,223,LH212,222,TRH203,221..RHD..(06S,10S,15S,16S)..(GEN,MA,SA)¥4,780201312-202506

main69310-26060iTRH203..4FC;KDH200..LHD..4D¥4,780201312-202506

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-26010iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA¥430201312-202507

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥430201312-202507

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥120201312-202507

69320LOCK ASSY, FRONT DOOR, LH

main69040-26131iKDH222..GL..GCC¥10,800201909

main69040-26131iKDH222..GL..GCC;TRH223..5F..GL..GEN¥10,800201312-201902

POWER DOOR LOCK-WITH

main69040-26131iTRH223..GL..GEN¥10,800201908

POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-W(WIRELESS DOOR LOCK) & W/O(SMART ENTRY)

main69040-26140iKDH222..RHD..STD..GEN;KDH201,TRH201..MA,SA,TH;KDH202,220,223,LH212,222,TRH203,221..RHD..(06S,10S,15S,16S)..(GEN,MA,SA)¥10,500201312-202506

POWER DOOR LOCK-WITH

main69040-26140iKDH222..KEN¥10,500201312-202507

main69040-26150iKDH223..5F..TH¥9,800201606-202301

main69320-26050iTRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN¥4,780201312-202506

main69320-26060iTRH221..SA¥4,780201312-202506

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0K070iKDH222,TRH223..STD..SA¥1,050202003

main69410-20110iKDH213..TH¥1,050201312-202507

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥410201312-202507

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥410201312-202507

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-26050iKDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)¥1,060201312-202507

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-26050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,060201312-202507

9014860073

main90148-60073¥60

9014880066

main90148-80066¥60

9018905027

main90189-05027¥70

9095901623

main90959-01623¥110

9356055025

main93560-55025¥110

21 parts on this diagram · 1 diagram in section
