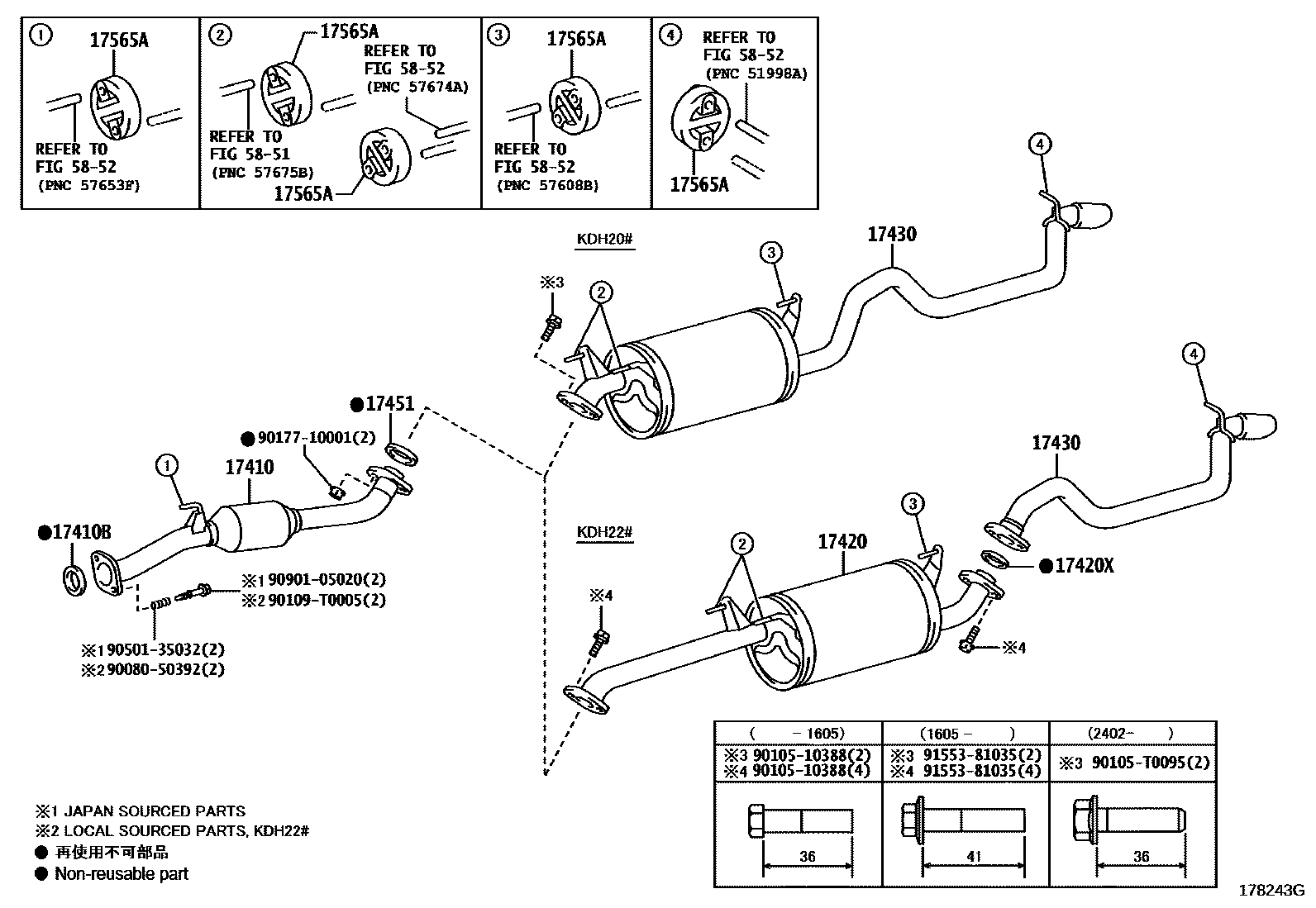

Toyota HIACE — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
main17410-30290i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)¥86,800201312-201906
TYPE A:REFER ILLUST.
NIGERIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3,TYPE A:REFER ILLUST.
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
CENTRAL AMERICA(4COUNTRY) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
BOLIVIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO4 W/O(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.
VIETNAM SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO4 W/O(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.
MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
17410BGASKET, EXHAUST PIPE
(L)
main17451-67020i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,410201312-202312
(J)
17420PIPE ASSY, EXHAUST, CENTER
main17420-30081i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202506
PERU SPEC
main17420-75420i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)¥29,200201312-202312
17420XGASKET, EXHAUST PIPE, CENTER
main90917-06073i2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1KDFTV..KDH223..4FC..TH;2TRFE..TRH223..LHD..STD..GEN;2KDFTV..KDH222..16S..(GEN,SA);2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..¥450201312-202506
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
main17451-74040i1KDFTV..KDH221;1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH223..5F..ARL¥1,340201312-202507
(L)
(J)
17565ASUPPORT, EXHAUST PIPE, NO.4
MADE IN THAILAND
MADE IN JAPAN
AZERBAIJAN SPEC,MADE IN JAPAN
main17565-28010i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2TRFE..TRH223..RHD..GEN;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA);2KDFTV,2TRFE..KDH222,TRH223..STD¥670201312-201902
SINGAPORE SPEC
5851
5852
9008050392
main90080-50392
9010510388
90105T0095
90109T0005
9017710001
9050135032
9090105020
9155381035
17 parts on this diagram · 8 diagrams in section
