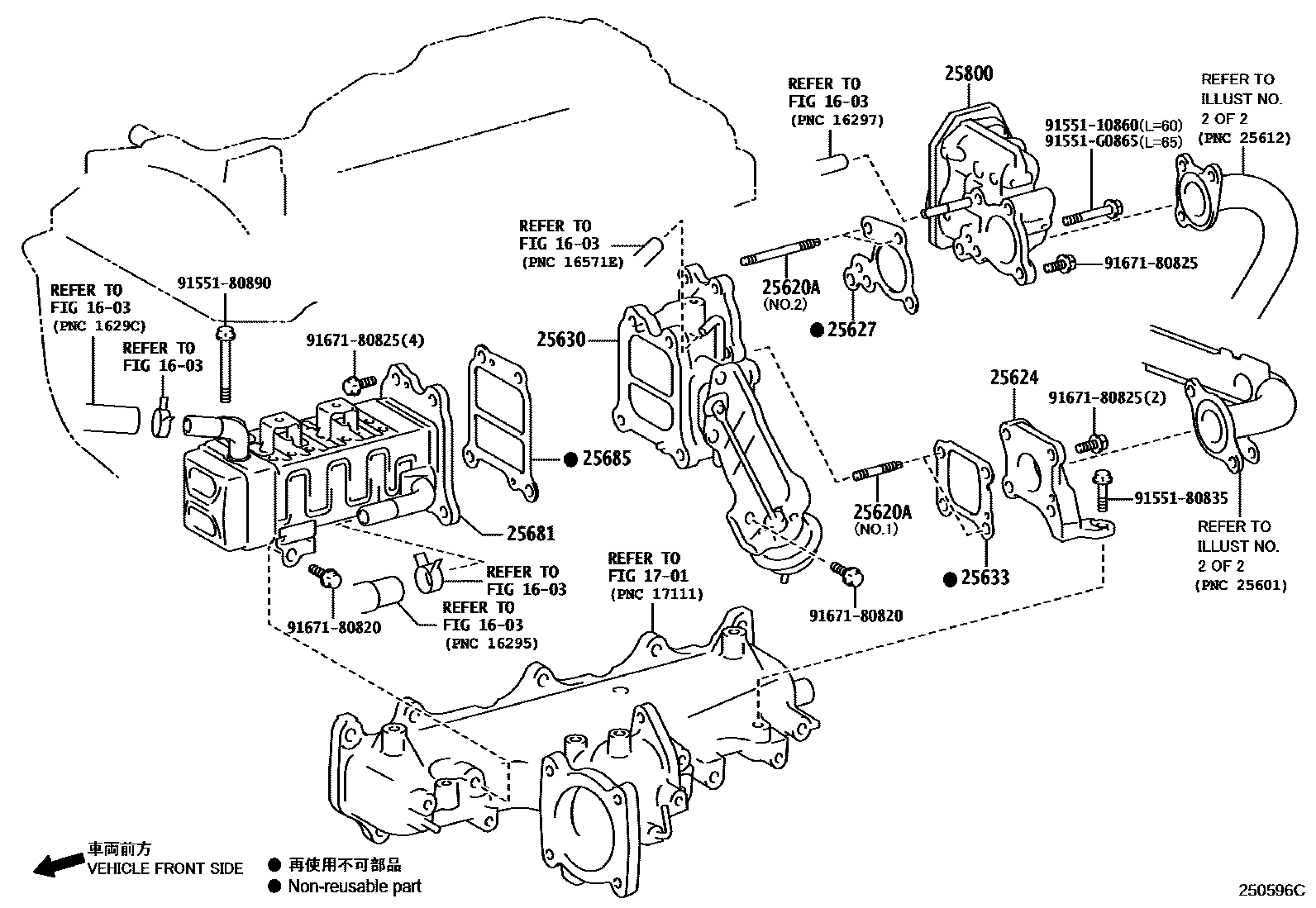

Toyota HIACE — EXHAUST GAS RECIRCULATION SYSTEM

0001 1EGR VALVE 0002 1EGR PIPE 0003 1EURO 4 REGULATION 0010 1EURO 5 REGULATION 0014 1SINGAPOLE SPEC 0015 1

1603

1701

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV..GDH201,223¥80201701

NO.1

main90126-08064i1GDFTV..GDH201,223¥120201701

NO.2

25624ADAPTER, EGR VALVE

main25611-30040i1KDFTV..KDH223..RUS¥5,900201312-202301

NO.1:REFER ILLUST.

main25612-30020i1KDFTV..KDH201..ARL¥3,610201312-202301

NO.2:REFER ILLUST.

main25624-11010i1GDFTV..GDH201,223¥2,240201701

25627GASKET, EGR VALVE

main25627-11050i1GDFTV..GDH201,223¥270201701

main25627-30010i2KDFTV..KDH200,202..MA¥240201401-202312

main25627-30060i2KDFTV..KDH222..GL..SA¥270201712-202401

main25627-30060i2KDFTV..KDH202..12S;2KDFTV..KDH200..LHD..5D..GEN¥270201312-201902

PERU SPEC

main25627-30060i2KDFTV..KDH202..12S;2KDFTV..KDH200..LHD..5D..GEN¥270201312-201902

PAKISTAN SPEC

main25627-30060i2KDFTV..KDH220,222..(03S,14S)..SA¥270201312-201902

NEPAL SPEC

main25627-30070i1KDFTV..KDH223..RUS¥270201312-202301

25630VALVE ASSY, EGR, NO.2

main25630-11020i1GDFTV..GDH201¥35,100201701-201901

sub25630-11021¥35,100

main25630-11022i1GDFTV..GDH201,223¥31,900202302

main25630-30030i1KDFTV..KDH203..12S..GEN¥13,400201312-202301

main25630-30040i1KDFTV..KDH213¥12,100201312-201906

25633GASKET, EGR VALVE

main25633-11010i1GDFTV..GDH201,223¥410201701

main25633-26020i1KDFTV..KDH201..LHD..03S¥270201312-202301

25681COOLER, EGR, NO.1

main25681-0W010i1GDFTV..GDH201,223¥33,500201701

25685GASKET, EGR COOLER, NO.1

main25685-11010i1GDFTV..GDH201,223¥410201701

main25685-30020i1KDFTV..KDH203..15S;1KDFTV..KDH223..4FC..TH;1KDFTV..KDH223..GEN,KEN,VN;1KDFTV..KDH201..4D..5F..(GEN,MA,TH);1KDFTV..KDH203,213..COM..(11S,12S,13S)..GL¥270201312-201906

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0L030i2KDFTV..KDH200,202..MA201401-202312

main25800-11010i1GDFTV..GDH201,223¥20,200201701

main25800-30080i2KDFTV..KDH222..RHD..STD..GEN¥20,800201312-201902

NEPAL SPEC

main25800-30080i2KDFTV..KDH222..RHD..STD..GEN¥20,800201312-201902

PAKISTAN SPEC

main25800-30080i2KDFTV..KDH222..GCC¥20,800201712-202401

main25800-30080i2KDFTV..KDH200..RHD..4D..GEN¥20,800201312-201902

PERU SPEC

main25800-30150i1KDFTV..KDH223..RUS¥25,100201312-201906

main25800-30200i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..(02S,03S,14S)..STD¥19,800201312-202301

9155110860

main91551-10860¥130

9155180835

main91551-80835¥80

9155180890

main91551-80890¥120

91551G0865

main91551-G0865¥100

9167180820

main91671-80820¥80

9167180825

main91671-80825¥80

16 parts on this diagram · 6 diagrams in section
