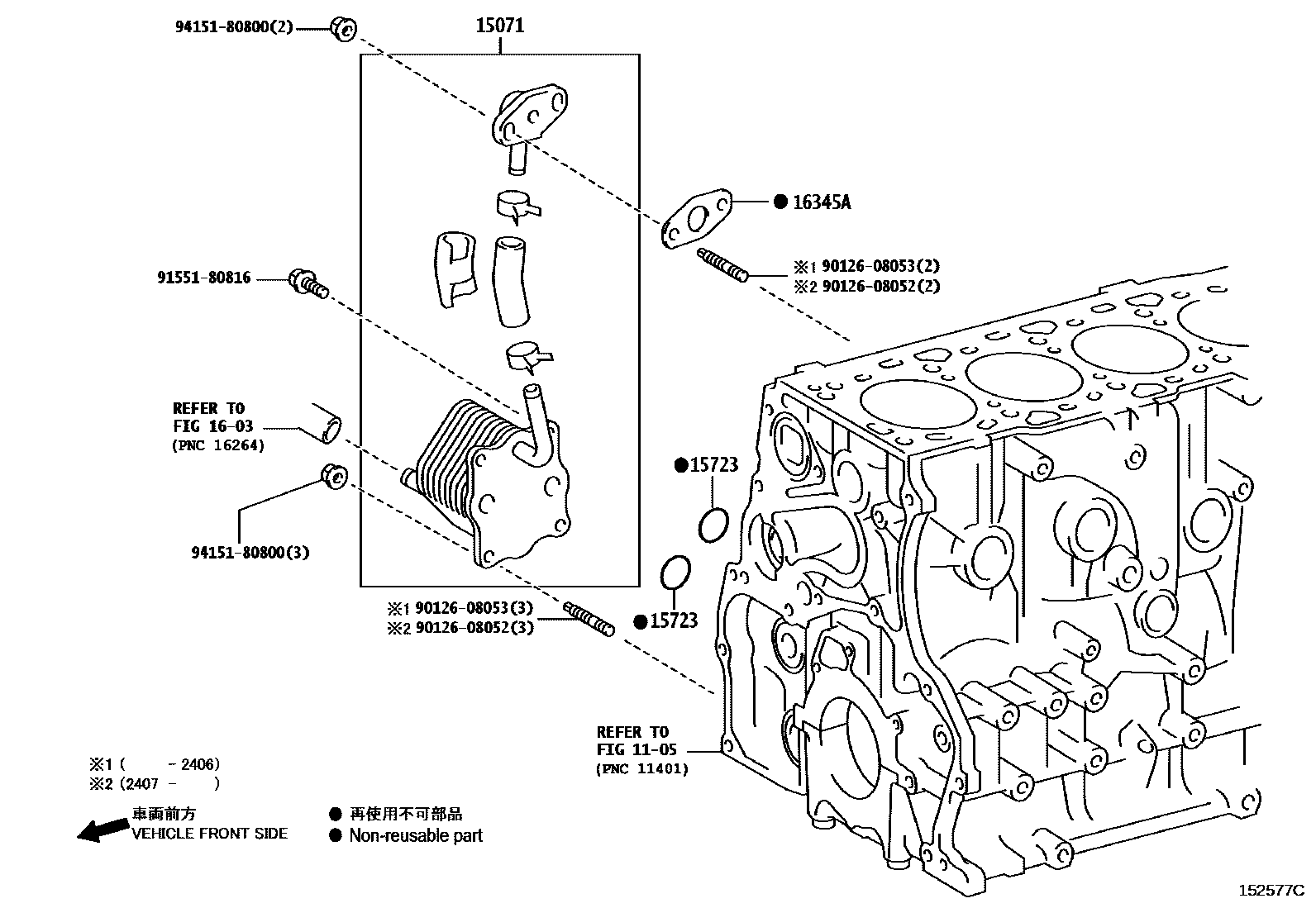

Toyota HIACE — ENGINE OIL COOLER

0001 1 0002 1 0003 1

1105

15071COOLER SET, ENGINE OIL

main15071-08010i1GDFTV..GDH201,223¥39,100202302

main15071-11010i1GDFTV..GDH201¥42,300201701-201901

sub15071-08010¥39,100

15723RING, O

main90301-22007i1GDFTV..GDH201,223¥190201701

1603

16345AGASKET, WATER OUTLET PIPE

main16345-11010i1GDFTV..GDH201,223¥270201701

9012608052

main90126-08052¥80

9012608053

main90126-08053¥260

9155180816

main91551-80816¥80

9415180800

main94151-80800¥80

9 parts on this diagram · 3 diagrams in section
