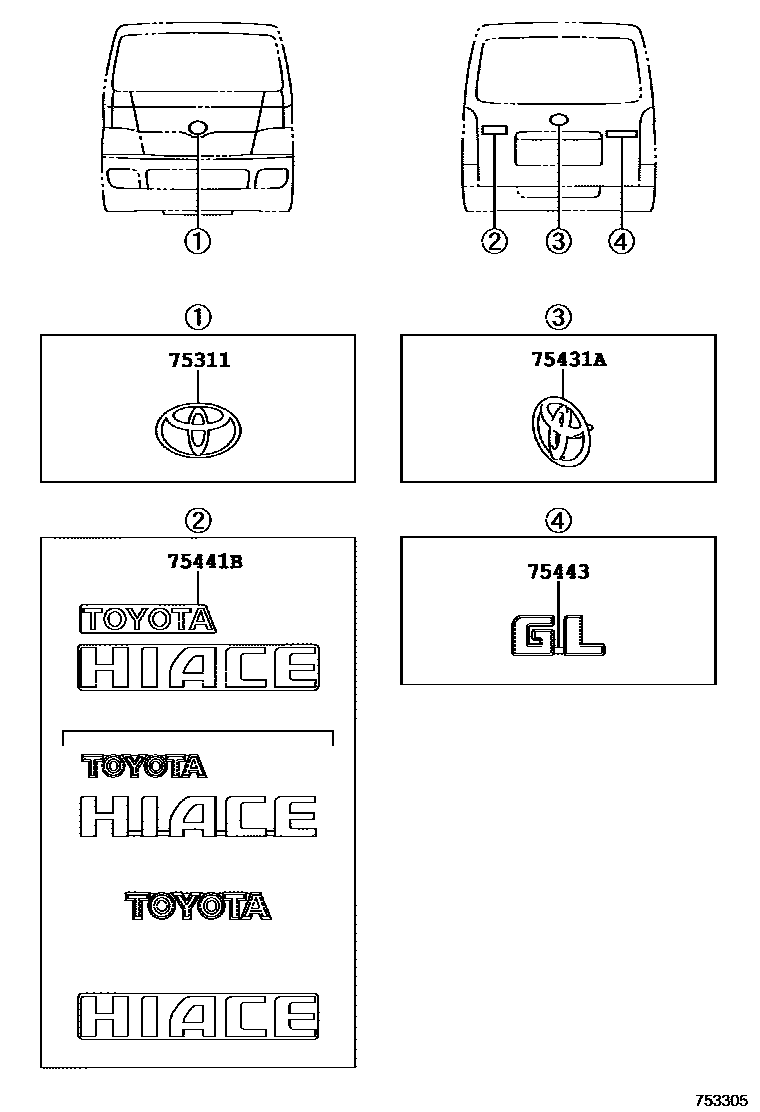

Toyota HIACE — EMBLEM & NAME PLATE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02086iKDH201,203..RHD..(02S,03S)..GEN¥1,940201312-202507

main90975-02176iKDH213..TH¥2,820201312-202506

main90975-02182iKDH223,TRH223..RUS201312-201902

75431AEMBLEM, BACK DOOR, NO.1

main90975-02064iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)¥1,940201312-202507

main90975-02086iKDH212,220,TRH213,223..03S,10S,14S¥1,940201312-202506

main90975-02129iKDH223,TRH223..RUS¥2,330201312-201902

75441BPLATE, BACK DOOR NAME

main75441-26241iKDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN)¥1,190201501-202312

HIACE

main75441-26261iKDH222..GL..SA¥1,750202005-202107

HIACE

main75441-26281iTRH213..RHD..GEN¥1,660201312-202507

TOYOTA HIACE

main75441-26291iTRH223..GL..GEN¥3,010201312-201902

TOYOTA HIACE

main75441-26301iKDH223,TRH223..TH¥2,000201401-201904

TOYOTA

main75441-26370iKDH223,TRH223..RUS¥3,990201312-201902

TOYOTA HIACE

75443PLATE, BACK DOOR NAME, NO.3

main75443-26071iTRH223..GL..GEN¥1,590201312-202107

GL

main75443-26090iKDH223,TRH223..RUS¥2,100201312-201902

GL

4 parts on this diagram · 1 diagram in section
