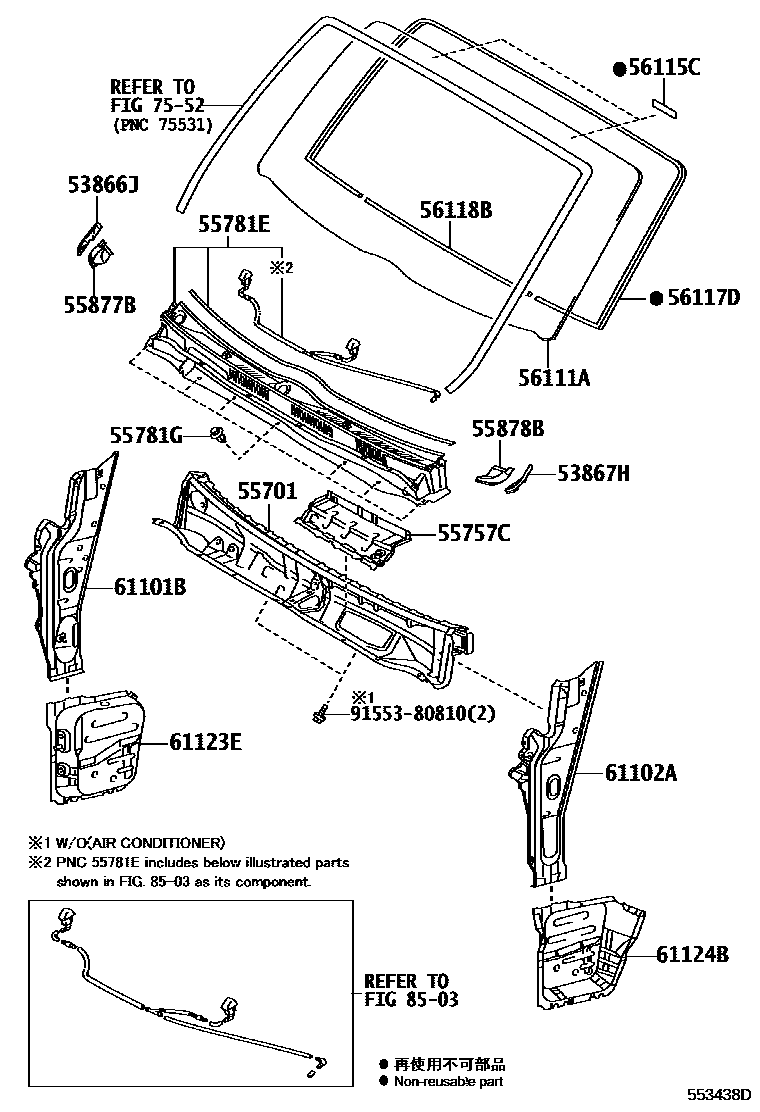

Toyota HIACE — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-26011iKDH222..KEN¥430201312-202507

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-26011iKDH222..KEN¥430201312-202507

55701PANEL SUB-ASSY, COWL

main55700-0L010iKDH223,TRH223..TH201404-201504

sub55700-26470¥19,200

main55700-0L050iKDH222,TRH223..STD..SA201903

main55700-26440iLH200..5D;KDH200..RHD..(GEN,SA)¥17,400201312-202507

main55700-26451iKDH200..LHD..5D;TRH203..LHD..GEN;KDH201,202,203,TRH201..LHD201312-202506

main55700-26470iKDH213..TH¥19,200201312-202312

main55700-26481iTRH221..SG;KDH222,TRH223..STD..GCC¥17,400201312-202506

main55700-26490iKDH222,TRH223..STD..SA201312-202312

55757CPLATE, HEATER AIR DUCT SUB

main55757-26040iKDH200..RHD..GEN¥2,230201312-202507

main55757-26050iTRH203..4FC;KDH200..LHD..4D¥2,230201312-202506

main55757-26060iKDH222..KEN¥1,830201312-202312

main55757-26070iTRH221..SP..GEN;TRH223..GL..GEN¥1,830201312-202506

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-26080iKDH200..SA¥12,000201312-202507

sub55708-26090¥8,200

main55708-26110iTRH203..4FC;KDH200..LHD..4D¥8,200201312-202506

main55708-26120iKDH212..16S..GEN;KDH223..4FC..ARL¥13,300201312-202312

sub55708-26130¥9,100

main55708-26150iTRH221..SP..GEN;TRH223..GL..GEN¥9,100201312-202506

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-06168iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)¥70201312-202507

55877BCOVER, COWL VENT, RH

main55877-26030iKDH200..MA¥590201312-202507

main55877-26040iKDH222..KEN¥530201312-202506

55878BCOVER, COWL VENT, LH

main55878-26030iKDH200..SA¥590201312-202507

main55878-26040iKDH212..16S..GEN;KDH223..4FC..ARL¥530201312-202506

56111AGLASS, WINDSHIELD

main56101-0L020iKDH222,TRH223..STD..SA201402-201508

*TL,T=4.76,GREEN

sub56101-0L021

main56101-0L021iKDH222,TRH223..STD..SA201509-201801

sub56101-0L022

main56101-0L022iKDH222,TRH223..STD..SA201802

main56101-0L030iKDH223,TRH223..TH201401-201801

*TL,T=4.76,GREEN

main56101-0L070iKDH223,TRH223..TH,VN201801-201904

main56101-26011iKDH201..02S,03S,05S;KDH201,TRH203..SRF..SG;GDH201,KDH200,202,203,LH20#,TRH200,201..SRF..(5F,6FC)..(ARL,GCC,GEN,MA,SA)¥0201312-201801

*LAM,T=4.56,GREEN

main56101-26022iKDH223..RUS¥0201312-201712

*TL,T=4.76,GREEN

main56101-26060iKDH223..RUS¥80,900201612-201712

*LAM,T=4.76,GREEN

main56101-26290iKDH203..TH¥70,200201712-202312

sub56101-26291¥53,100

main56101-26291iTRH200¥53,100201904-202507

main56101-26300iKDH223..5F..TH¥78,200201712-201903

FIJI SPEC

sub56101-26301¥59,200

main56101-26300iKDH212..SA;TRH213..RHD..5F¥78,200201712-201902

sub56101-26301¥59,200

main56101-26301iTRH213..RHD..GEN¥59,200201904-202506

56115CSTOPPER, WINDSHIELD GLASS

main56115-26060iTRH221..SA¥330201312-202507

main56116-35050iKDH203..TH;KDH201,202,TRH203..MA¥120201401-202312

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-26060iLH222..LHD¥880201312-202507

*D,L=3129

main56117-26060iLH20#..4D;TRH200..5F;TRH203..5F..GCC¥880201312-202506

L=3308

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-26020iKDH223..TH;TRH223..4FC;TRH223..GL..GEN;TRH221..SP..GEN;TRH223..RHD..GEN¥410201312-202507

*D,L=759

main56118-26020iKDH212..SA;TRH213..RHD..5F¥410201312-202506

L=945

61101BPANEL SUB-ASSY, COWL SIDE, RH

main61101-26040iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)¥3,770201312-202507

61102APANEL SUB-ASSY, COWL SIDE, LH

main61102-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥3,770201312-202507

61123EPANEL, COWL SIDE, LOWER RH

main61123-26010iTRH213..RHD..GEN¥4,460201312-202506

main61123-26020iKDH222..KEN¥4,460201312-202507

61124BPANEL, COWL SIDE, LWR LH

main61124-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥4,460201312-202507

7552

8503

9155380810

main91553-80810¥80

19 parts on this diagram · 2 diagrams in section
