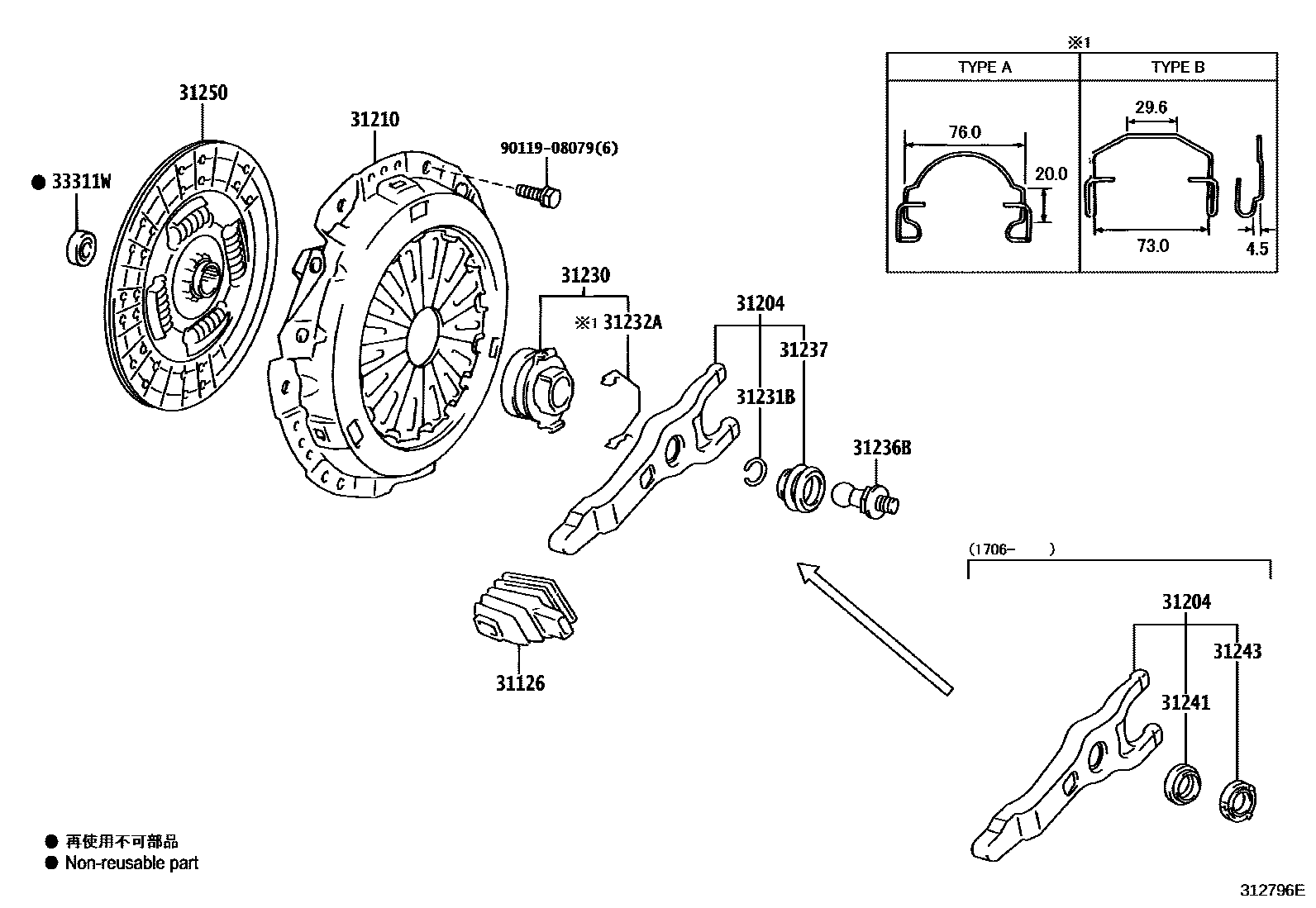

Toyota HIACE — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K060iLH200..5D201908-202506

main31126-0K060iLH200..5D201312-201901

main31126-0K060iLH20#,212,222..4D201312-202506

main31126-26020iTRH200..5F¥530202302-202506

main31126-36080iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥630201312-201902

main31126-36080iTRH213..RHD..5F¥630201312-201901

main31126-36080iTRH221..SG;TRH223..5F..GCC¥630201911

main31126-36080iTRH213,223..GL..SA¥630201911-202107

main31126-36080iTRH221..SA¥630201904-202312

main31126-36080iTRH213..RHD..GEN¥630201908-202312

main31126-36080iTRH203..5F..GCC¥630201312-202506

main31126-36080iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥630201312

main31126-36080iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥630201908

main31126-60081iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥770201312-201902

main31126-60081iKDH223..5F..TH¥770201312-201904

main31126-60081iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥770201312-201901

main31126-60081iKDH200,212,220..SA¥770201911-202107

main31126-60081iKDH222..KEN¥770201312-202212

main31126-60081iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥770201312-202301

main31126-60081iKDH200..MA¥770201312-202312

main31126-60081iKDH212..LHD..5F;KDH200,201..LHD..5D;KDH220,221,223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,202,203,213..4D..(03S,10S,12S,15S)..5F;KDH201,220,222..(02S,05S,06S,16S)..5F..(A¥770201312

main31126-60081iKDH223..TH;KDH200..LHD..4D;KDH200..RHD..GEN¥770201908

main31126-60081iKDH222..GL..GCC¥770201909

main31126-60081iKDH222..GL..SA;KDH222..STD..GCC¥770201911

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K030iLH20#,212,222¥2,470201312-201508

sub31204-20071¥1,420

main31204-20071iLH200..5D¥1,420201508-201901

main31204-20071iLH200..5D¥1,420201908-202506

main31204-20071iTRH200..5F;LH20#,212,222..4D¥1,420201508-202506

main31204-35031iTRH221..SA¥1,440201904-202312

main31204-35031iTRH213..RHD..5F¥1,440201312-201901

main31204-35031iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥1,440201312-201902

main31204-35031iTRH213,223..GL..SA¥1,440201911-202107

main31204-35031iTRH213..RHD..GEN¥1,440201908-202312

main31204-35031iTRH203..5F..GCC¥1,440201312-202506

main31204-35031iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥1,440201312

main31204-35031iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥1,440201908

main31204-35031iTRH221..SG;TRH223..5F..GCC¥1,440201911

main31204-35070iKDH20#,21#,22#..5F¥4,590201312-201705

sub31204-35071¥3,460

main31204-35071iKDH223..TH;KDH200..LHD..4D;KDH200..RHD..GEN¥3,460201908

main31204-35071iKDH222..GL..GCC¥3,460201909

main31204-35071iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥3,460201706-201901

main31204-35071iKDH200..MA¥3,460201706-202312

main31204-35071iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥3,460201706-201902

main31204-35071iKDH200..LHD..5D;KDH201,220..(02S,05S,06S)..5F;KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH221,222..5F..STD..(ARL,GEN,SA);KDH201,212,220..LHD..(03S,13S,16S);KDH201,202,203,2¥3,460201706

main31204-35071iKDH223..5F..TH¥3,460201706-201904

main31204-35071iKDH222..GL..SA;KDH222..STD..GCC¥3,460201911

main31204-35071iKDH200,212,220..SA¥3,460201911-202107

main31204-35071iKDH222..KEN¥3,460201706-202212

main31204-35071iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥3,460201706-202301

31210COVER ASSY, CLUTCH

main31210-0K410iKDH222..SA201312

main31210-26131iKDH222..STD..GCC¥16,600201911

main31210-26131iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥16,600201312-201901

main31210-26131iKDH222..GCC;KDH220..03S..SA¥16,600201312-201902

main31210-26131iKDH200,212,220..SA¥16,600201911-202107

main31210-26131iKDH222..KEN¥16,600201312-202212

main31210-26131iKDH212..16S..GEN¥16,600201312-202301

main31210-26131iKDH200..MA¥16,600201312-202312

main31210-26131iKDH212..LHD..5F;KDH222..STD..GEN;KDH200,220..LHD..5D;KDH202,220..06S,10S,12S,15S¥16,600201312

main31210-26131iKDH200..LHD..4D;KDH200..RHD..GEN¥16,600201908

main31210-26131iKDH222..GL..GCC¥16,600201909

main31210-26164iLH20#,212,222..4D¥13,300201312-202506

main31210-26164iLH200..5D¥13,300201312-201901

main31210-26164iLH200..5D¥13,300201908-202506

main31210-26172iTRH213..RHD..GEN¥13,300201908-202312

main31210-26172iTRH203..5F..GCC¥13,300201312-202506

main31210-26172iTRH213..RHD..5F¥13,300201312-201901

main31210-26172iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥13,300201312

main31210-26172iTRH213,223..GL..SA¥13,300201911-202107

main31210-26172iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥13,300201908

main31210-26172iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥13,300201312-201902

main31210-26172iTRH221..SG;TRH223..5F..GCC¥13,300201911

main31210-26172iTRH221..SA¥13,300201904-202312

main31210-35281iTRH200..5F¥13,300202302-202506

main31210-36350iKDH223..5F..TH¥17,700201312-201904

main31210-36350iKDH201..LHD..03S;KDH201..(02S,05S,06S)..5F;KDH221,223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,203,213..4D..(03S,10S,12S,15S)..5F¥17,700201312

main31210-36350iKDH223..TH¥17,700201908

main31210-36350iKDH201,203..RHD..(02S,03S)..5F..GEN¥17,700201312-202301

31230BEARING ASSY, CLUTCH RELEASE

main31230-35061iLH200..5D¥3,300201312-201901

main31230-35061iLH20#,212,222..4D¥3,300201312-202506

main31230-35061iLH200..5D¥3,300201908-202506

main31230-35071iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥3,300201908

main31230-35071iTRH213..RHD..5F¥3,300201312-201901

main31230-35071iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥3,300201312-201902

main31230-35071iTRH213,223..GL..SA¥3,300201911-202107

main31230-35071iTRH221..SA¥3,300201904-202312

main31230-35071iTRH213..RHD..GEN¥3,300201908-202312

main31230-35071iTRH203..5F..GCC¥3,300201312-202506

main31230-35071iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥3,300201312

main31230-35071iTRH221..SG;TRH223..5F..GCC¥3,300201911

main31230-35091iTRH200..5F¥3,300202302-202506

main31230-60170iKDH200..MA¥1,880201312-202312

main31230-60170iKDH200,212,220..SA¥1,880201911-202107

main31230-60170iKDH222..KEN¥1,880201312-202212

main31230-60170iKDH212..16S..GEN¥1,880201312-202301

main31230-60170iKDH200..LHD..4D;KDH200..RHD..GEN¥1,880201908

main31230-60170iKDH222..GL..GCC¥1,880201909

main31230-60170iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥1,880201312-201902

main31230-60170iKDH222..GL..SA;KDH222..STD..GCC¥1,880201911

main31230-60170iKDH212..LHD..5F;KDH200,220..LHD..5D;KDH222..STD..(GEN,SA);KDH202,220..06S,10S,12S,15S¥1,880201312

main31230-60170iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,880201312-201901

main31230-60221iKDH223..5F..TH¥5,800201312-201904

main31230-60221iKDH201..LHD..03S;KDH201..(02S,05S,06S)..5F;KDH221,223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,203,213..4D..(03S,10S,12S,15S)..5F¥5,800201312

main31230-60221iKDH201,203..RHD..(02S,03S)..5F..GEN¥5,800201312-202301

main31230-60221iKDH223..TH¥5,800201908

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90521-22003iKDH202..MA¥100201312-201611

main90521-22003iKDH212..5F..GL..GEN¥100201312-201511

main90521-22003iKDH201..SP..06S..5F¥100201312-201612

main90521-22003iKDH223..RUS¥100201501-201701

main90521-22003iKDH201,212..(03S,13S)..5F..STD..GEN;KDH202,203,21#..(SMRF,SRF)..(02S,10S,12S,15S,16S)¥100201312-201706

main90521-22003iKDH201..SG..5F;KDH201..5F..ARL;KDH221,223..RHD..5F..(ARL,GEN)¥100201606-201706

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLH20#,212,222¥190201312-201508

TYPE A:REFER ILLUST.

main31232-35020iTRH213..RHD..GEN¥190201908-202312

TYPE A:REFER ILLUST.

main31232-35020iTRH213..RHD..5F¥190201312-201901

TYPE A:REFER ILLUST.

main31232-35020iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥190201312

TYPE A:REFER ILLUST.

main31232-35020iTRH200..5F;TRH203..5F..GCC¥190201312-202506

TYPE A:REFER ILLUST.

main31232-35020iTRH221..SA¥190201904-202312

TYPE A:REFER ILLUST.

main31232-35020iTRH213,223..GL..SA¥190201911-202107

TYPE A:REFER ILLUST.

main31232-35020iTRH221..SG;TRH223..5F..GCC¥190201911

TYPE A:REFER ILLUST.

main31232-35020iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥190201908

TYPE A:REFER ILLUST.

main31232-35020iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥190201312-201902

TYPE A:REFER ILLUST.

main31232-35030iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥190201312

TYPE B:REFER ILLUST.

main31232-35030iLH20#,212,222¥190201312-201508

TYPE B:REFER ILLUST.

main31232-35030iTRH213..RHD..5F¥190201312-201901

TYPE B:REFER ILLUST.

main31232-35030iLH200..5D¥190201508-201901

main31232-35030iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥190201312-201902

TYPE B:REFER ILLUST.

main31232-35030iTRH213,223..GL..SA¥190201911-202107

TYPE B:REFER ILLUST.

main31232-35030iTRH221..SA¥190201904-202312

TYPE B:REFER ILLUST.

main31232-35030iTRH213..RHD..GEN¥190201908-202312

TYPE B:REFER ILLUST.

main31232-35030iTRH203..5F..GCC¥190201312-202506

TYPE B:REFER ILLUST.

main31232-35030iLH20#,212,222..4D¥190201508-202506

main31232-35030iLH200..5D¥190201908-202506

main31232-35030iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥190201908

TYPE B:REFER ILLUST.

main31232-35030iTRH221..SG;TRH223..5F..GCC¥190201911

TYPE B:REFER ILLUST.

main31232-35040iTRH200..5F¥230202302-202506

TYPE B:REFER ILLUST.

main31232-36030iKDH200..LHD..4D;KDH200..RHD..GEN¥110201908

TYPE A:REFER ILLUST.

main31232-36030iKDH212..16S..GEN¥110201312-202301

TYPE A:REFER ILLUST.

main31232-36030iKDH222..GL..GCC¥110201909

TYPE A:REFER ILLUST.

main31232-36030iKDH200,212,220..SA¥110201911-202107

TYPE A:REFER ILLUST.

main31232-36030iKDH222..GL..SA;KDH222..STD..GCC¥110201911

TYPE A:REFER ILLUST.

main31232-36030iKDH200..MA¥110201312-202312

TYPE A:REFER ILLUST.

main31232-36030iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥110201312-201902

TYPE A:REFER ILLUST.

main31232-36030iKDH212..LHD..5F;KDH200,220..LHD..5D;KDH222..STD..(GEN,SA);KDH202,220..06S,10S,12S,15S¥110201312

TYPE A:REFER ILLUST.

main31232-36030iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥110201312-201901

TYPE A:REFER ILLUST.

main31232-36030iKDH222..KEN¥110201312-202212

TYPE A:REFER ILLUST.

main31232-60030iKDH223..TH¥200201908

TYPE B:REFER ILLUST.

main31232-60030iKDH201..LHD..03S;KDH201..(02S,05S,06S)..5F;KDH221,223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,203,213..4D..(03S,10S,12S,15S)..5F¥200201312

TYPE B:REFER ILLUST.

main31232-60030iKDH223..5F..TH¥200201312-201904

TYPE B:REFER ILLUST.

main31232-60030iKDH201,203..RHD..(02S,03S)..5F..GEN¥200201312-202301

TYPE B:REFER ILLUST.

main31232-71010iKDH200,212,220..SA¥140201911-202107

TYPE B:REFER ILLUST.

main31232-71010iKDH200..MA¥140201312-202312

TYPE B:REFER ILLUST.

main31232-71010iKDH212..16S..GEN¥140201312-202301

TYPE B:REFER ILLUST.

main31232-71010iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥140201312-201902

TYPE B:REFER ILLUST.

main31232-71010iKDH212..LHD..5F;KDH200,220..LHD..5D;KDH222..STD..(GEN,SA);KDH202,220..06S,10S,12S,15S¥140201312

TYPE B:REFER ILLUST.

main31232-71010iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥140201312-201901

TYPE B:REFER ILLUST.

main31232-71010iKDH222..KEN¥140201312-202212

TYPE B:REFER ILLUST.

main31232-71010iKDH200..LHD..4D;KDH200..RHD..GEN¥140201908

TYPE B:REFER ILLUST.

main31232-71010iKDH222..GL..GCC¥140201909

TYPE B:REFER ILLUST.

main31232-71010iKDH222..GL..SA;KDH222..STD..GCC¥140201911

TYPE B:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-26010iLH200..5D¥460201312-201901

main31236-26010iTRH200..5F;LH20#,212,222..4D¥460201312-202506

main31236-26010iLH200..5D¥460201908-202506

main31236-35030iTRH213..RHD..GEN¥330201908-202312

main31236-35030iTRH213..RHD..5F¥330201312-201901

main31236-35030iTRH203..5F..GCC¥330201312-202506

main31236-35030iTRH221..SG;TRH223..5F..GCC¥330201911

main31236-35030iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥330201312

main31236-35030iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥330201312-201902

main31236-35030iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥330201908

main31236-35030iTRH213,223..GL..SA¥330201911-202107

main31236-35030iTRH221..SA¥330201904-202312

main31236-35050iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥810201703-201901

main31236-35050iKDH222..GL..GCC¥810201909

main31236-35050iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥810201703-201902

main31236-35050iKDH223..5F..TH¥810201703-201904

main31236-35050iKDH200,212,220..SA¥810201911-202107

main31236-35050iKDH222..KEN¥810201703-202212

main31236-35050iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥810201703-202301

main31236-35050iKDH200..MA¥810201703-202312

main31236-35050iKDH200..LHD..5D;KDH201,220..(02S,05S,06S)..5F;KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH221,222..5F..STD..(ARL,GEN,SA);KDH201,212,220..LHD..(03S,13S,16S);KDH201,202,203,2¥810201703

main31236-35050iKDH223..TH;KDH200..LHD..4D;KDH200..RHD..GEN¥810201908

main31236-35050iKDH222..GL..SA;KDH222..STD..GCC¥810201911

main31236-71011iKDH20#,21#,22#..5F¥850201312-201703

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-60010iKDH203,213..(02S,10S,12S)..GEN¥160201312-201706

31241SEAL, CLUTCH RELEASE FORK DUST

main31241-71010iKDH222..KEN¥40201706-202212

main31241-71010iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥40201706-202301

main31241-71010iKDH200..MA¥40201706-202312

main31241-71010iKDH200..LHD..5D;KDH201,220..(02S,05S,06S)..5F;KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH221,222..5F..STD..(ARL,GEN,SA);KDH201,212,220..LHD..(03S,13S,16S);KDH201,202,203,2¥40201706

main31241-71010iKDH223..TH;KDH200..LHD..4D;KDH200..RHD..GEN¥40201908

main31241-71010iKDH222..GL..GCC¥40201909

main31241-71010iKDH222..GL..SA;KDH222..STD..GCC¥40201911

main31241-71010iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥40201706-201901

main31241-71010iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥40201706-201902

main31241-71010iKDH223..5F..TH¥40201706-201904

main31241-71010iKDH200,212,220..SA¥40201911-202107

31243COLLAR, CLUTCH RELEASE FORK

main31243-0K010iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥80201706-201901

main31243-0K010iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥80201706-201902

main31243-0K010iKDH200,212,220..SA¥80201911-202107

main31243-0K010iKDH222..KEN¥80201706-202212

main31243-0K010iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥80201706-202301

main31243-0K010iKDH200..MA¥80201706-202312

main31243-0K010iKDH200..LHD..5D;KDH201..RHD..(02S,05S,06S)..5F;KDH221,222..5F..STD..(ARL,GEN,SA);KDH201,212,220..LHD..(03S,13S,16S);KDH202,203,213,220..06S,10S,12S,15S;KDH201,223..¥80201706

main31243-0K010iKDH223..TH;KDH200..LHD..4D;KDH200..RHD..GEN¥80201908

main31243-0K010iKDH222..GL..GCC¥80201909

main31243-0K010iKDH222..GL..SA;KDH222..STD..GCC¥80201911

main90521-22003iKDH200,220,222..5F¥100201312-201706

31250DISC ASSY, CLUTCH

main31250-0K411iKDH222..SA201312

main31250-26200iTRH200..5F¥12,200202302-202506

main31250-26221iLH20#,212,222¥6,100201312-201708

sub31250-26222¥6,100

main31250-26222iLH200..5D¥6,100201709-201901

main31250-26222iLH20#,212,222..4D¥6,100201709-202506

main31250-26222iLH200..5D¥6,100201908-202506

main31250-26231iTRH201,203,213,22#..5F¥15,500201312-201710

sub31250-26232¥15,500

main31250-26232iTRH201..5F;TRH221..GCC;TRH223..5F..GL..GCC;TRH223..STD..(SA,TH);TRH213,223..LHD..STD..GEN;TRH203,221..(02S,06S,15S)..5F..(ARL,GEN,SA)¥15,500201711

main31250-26232iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥15,500201908

main31250-26232iTRH221..SG;TRH223..5F..GCC¥15,500201911

main31250-26232iTRH213..RHD..5F¥15,500201711-201901

main31250-26232iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥15,500201711-201902

main31250-26232iTRH213,223..GL..SA¥15,500201911-202107

main31250-26232iTRH221..SA¥15,500201904-202312

main31250-26232iTRH213..RHD..GEN¥15,500201908-202312

main31250-26232iTRH203..5F..GCC¥15,500201711-202506

main31250-26252iKDH223..TH¥16,300201908-201910

sub31250-26253¥16,300

main31250-26252iKDH223..5F..TH¥16,300201312-201904

sub31250-26253¥16,300

main31250-26252iKDH201,203,213,221..5F;KDH223..5F..(ARL,GEN,RUS,VN)¥16,300201312-201910

sub31250-26253¥16,300

main31250-26253iKDH201,203..(02S,03S)..5F¥16,300201911-202301

main31250-26253iKDH201..4D..5F;KDH201,203,223..SG..(03S,06S,15S,16S)..5F¥16,300201911

main31250-26260iKDH222..GCC;KDH220..03S..SA¥15,700201312-201902

sub31250-26261¥15,700

main31250-26260iKDH220..06S;KDH200..GCC,MA;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH202,212,220..5F..(GCC,GEN,MA)¥15,700201312-201910

sub31250-26261¥15,700

main31250-26260iKDH200..LHD..4D;KDH200..RHD..GEN¥15,700201908-201910

sub31250-26261¥15,700

main31250-26260iKDH222..GL..GCC¥15,700201909-201910

sub31250-26261¥15,700

main31250-26260iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥15,700201312-201901

sub31250-26261¥15,700

main31250-26261iKDH222..KEN¥15,700201911-202212

main31250-26261iKDH200,212,220..SA¥15,700201911-202107

main31250-26261iKDH212..GEN¥15,700201911-202301

main31250-26261iKDH200..MA¥15,700201911-202312

main31250-26261iKDH200,202,222..GCC,GEN¥15,700201911

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKDH20#,21#,22#,LH20#,212,222..5F¥520201312-201808

NACHI

sub90363-12024¥520

main90363-12018iTRH213..RHD..GEN¥1,050201908-202312

NSK

main90363-12018iTRH213..RHD..5F¥1,050201312-201901

NSK

main90363-12018iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥1,050201312-201902

NSK

main90363-12018iTRH213,223..GL..SA¥1,050201911-202107

NSK

main90363-12018iTRH221..SA¥1,050201904-202312

NSK

main90363-12018iTRH200..5F;TRH203..5F..GCC¥1,050201312-202506

NSK

main90363-12018iTRH201..5F;TRH221..GCC;TRH213..LHD..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);TRH203,221..(02S,06S,10S,15S)..5F..(ARL,GEN,MA,S¥1,050201312

NSK

main90363-12018iTRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥1,050201908

NSK

main90363-12018iTRH221..SG;TRH223..5F..GCC¥1,050201911

NSK

main90363-12024iKDH200,212,220..SA¥520201911-202107

NACHI

main90363-12024iKDH222..KEN¥520201808-202212

NACHI

main90363-12024iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥520201808-202301

NACHI

main90363-12024iKDH200..MA¥520201808-202312

NACHI

main90363-12024iKDH222..GL..SA;KDH222..STD..GCC¥520201911

NACHI

main90363-12024iKDH223..TH;KDH200..LHD..4D;KDH200..RHD..GEN¥520201908

NACHI

main90363-12024iLH20#..4D;LH222..LHD¥520201808-202506

NACHI

main90363-12024iLH200..5D¥520201908-202506

NACHI

main90363-12024iKDH200..LHD..5D;KDH221,LH222..RHD..5F;KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,212,220..LHD..(03S,13S,16S);KDH201,220,222..(02S,05S,06S,16S)..5F..(ARL,GEN,SA);KDH201¥520201808

NACHI

main90363-12024iLH200..5D;KDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥520201808-201901

NACHI

main90363-12024iKDH222..GL..GCC¥520201909

NACHI

main90363-12024iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥520201808-201902

NACHI

main90363-12024iKDH223..5F..TH¥520201808-201904

NACHI

main90363-T0006iKDH223..5F..TH¥1,050201312-201904

NSK

main90363-T0006iKDH200,212,220..SA¥1,050201911-202107

NSK

main90363-T0006iKDH222..KEN¥1,050201312-202212

NSK

main90363-T0006iLH200..5D¥1,050201908-202506

NSK

main90363-T0006iKDH201,203,212..RHD..(02S,03S,16S)..5F..GEN¥1,050201312-202301

NSK

main90363-T0006iKDH222..GL..GCC¥1,050201909

NSK

main90363-T0006iKDH200..MA¥1,050201312-202312

NSK

main90363-T0006iKDH212..LHD..5F;KDH221,LH222..RHD..5F;KDH200,201,220..LHD..5D;KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,220,222..(02S,05S,06S,16S)..5F..(ARL,GEN,SA);KDH201,202,203,21¥1,050201312

NSK

main90363-T0006iLH200..5D;KDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,050201312-201901

NSK

main90363-T0006iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC¥1,050201312-201902

NSK

main90363-T0006iKDH223..TH;KDH200..LHD..4D;KDH200..RHD..GEN¥1,050201908

NSK

main90363-T0006iLH20#..4D;LH222..LHD¥1,050201312-202506

NSK

main90363-T0006iKDH222..GL..SA;KDH222..STD..GCC¥1,050201911

NSK

9011908079

main90119-08079¥120

13 parts on this diagram · 3 diagrams in section
