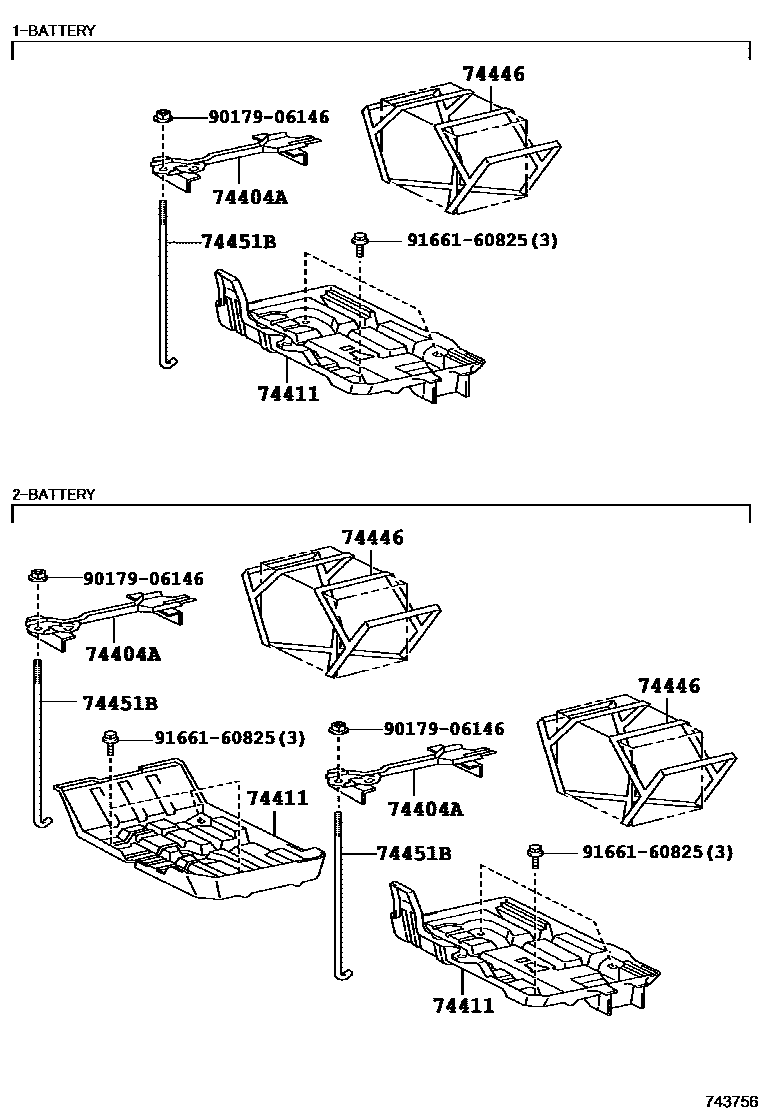

Toyota HIACE — BATTERY CARRIER

0001 1 0005 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-26080iKDH223..RUS¥1,360201312-201501

BATTERY-85D26R X 2(55AH X 2)

main74404-26080iKDH223..RUS¥1,360201312-201501

3ROOM REFRIGERATOR VAN

main74404-26080iKDH223..RUS¥1,360201312-201501

BATTERY-80D26R X 2(55AH X 2)

main74404-26080iKDH223..5F..TH;TRH200,201,22#..RHD..4FC;KDH20#,213,TRH203,213,223..MA,TH¥1,360201312-201502

main74404-26080iKDH223..RUS¥1,360201501-201902

RH

main74404-26080iKDH223..RUS¥1,360201501-201902

BATTERY-80D26R X 2(55AH X 2),RH

main74404-26090iTRH223..STD..SA201402-201503

main74404-26100iKDH222..STD..SA201402-201503

main74404-26110iLH200..5D¥1,350201501-202301

BATTERY-80D26R X 2(55AH X 2),LH

main74404-26110iLH200..5D¥1,350201501-202506

BATTERY-85D26R X 2(55AH X 2),LH

main74404-26110iKDH222..GL..GCC¥1,350201501-202507

main74404-26110iKDH223..RUS¥1,350201501-201902

LH

main74404-26120iTRH223..STD..SA201503

main74404-26130iKDH222..STD..SA201503

74411CARRIER, BATTERY

main74411-26120iKDH222..STD..GCC;KDH220,222..(03S,14S)..SA¥1,830201312-202312

BATTERY-80D26R X 2(55AH X 2),LH

main74411-26120iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,830201312-202506

BATTERY-85D26R X 2(55AH X 2),LH

main74411-26120iKDH223..RUS¥1,830201312-201902

LH

main74411-26120iKDH223..5F..TH¥1,830201312-202507

main74411-26131iKDH223..RUS¥1,630201312-201902

RH

main74411-26131iKDH222..STD..GCC;KDH220,222..(03S,14S)..SA¥1,630201312-201902

BATTERY-80D26R X 2(55AH X 2),RH

main74411-26140iKDH222..STD..SA201402

main74411-26150iTRH223..STD..SA201402

74446BAND, BATTERY

main74446-26010iLH200..5D¥410201312-202312

BATTERY-80D26R X 2(55AH X 2)

main74446-26010iLH200..5D¥410201312-202506

BATTERY-85D26R X 2(55AH X 2)

main74446-26010iKDH223..5F..TH¥410201312-202507

74451BBOLT, BATTERY CLAMP

main74451-16010iKDH223..4FC..TH¥140201312-202507

main74451-16010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥140201312-202312

BATTERY-80D26R X 2(55AH X 2)

main74451-16010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥140201312-202506

BATTERY-85D26R X 2(55AH X 2)

9017906146

main90179-06146¥100

9166160825

main91661-60825¥150

6 parts on this diagram · 2 diagrams in section
