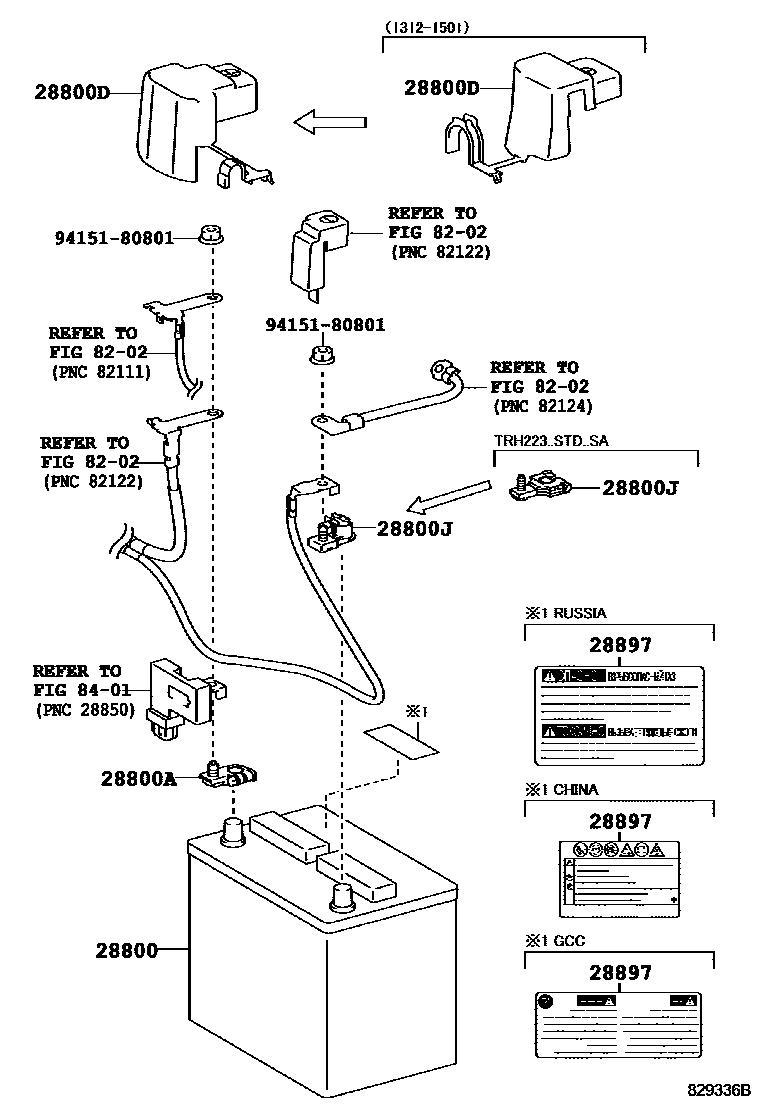

Toyota HIACE — BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-0C160i2TRFE..TRH223..STD..SA201402-202211

LN2

sub28800-0C161

main28800-0C161i2TRFE..TRH223..STD..SA202212

main28800-0L290i2KDFTV,2TRFE..KDH200,202,TRH203..MA201401-202312

80D26R,BATTERY-80D26R X 2(55AH X 2)

main28800-0L290i2KDFTV..KDH200..MA201401-202312

80D26R

main28800-0L330i2KDFTV..KDH222..STD..SA201402-202211

LN3

sub28800-0L331

main28800-0L331i2KDFTV..KDH222..STD..SA202212

main28800-0L420i1KDFTV..KDH223..16S201401-201904

105D31R

main28800-0L450i2TRFE..TRH223..TH201401-201610

55D23R

sub28800-0L451

main28800-0L451i2TRFE..TRH223..TH201611-201904

55D23R

main28800-15012i2TRFE..TRH221..SA¥0201312-202305

55D23R

sub28800-15013

sub28800-15020

main28800-15013i2TRFE..TRH213,221..RHD..STD202306-202403

55D23R

sub28800-15014

main28800-15014i1TRFE..TRH200..03S..6FC202404-202507

55D23R

sub28800-75050

main28800-54231i2TRFE..TRH213,223..GL..SA¥0201312-202207

80D26R,BATTERY-80D26R X 2(55AH X 2)

sub28800-67131¥0

main28800-54231i2KDFTV..KDH200,212,220..SA¥0201312-202207

80D26R

sub28800-67131¥0

main28800-54231i2KDFTV..KDH200,212,220..SA¥0201312-202207

80D26R,BATTERY-80D26R(55AH)

sub28800-67131¥0

main28800-54473i2KDFTV..KDH212..GEN202208-202506

80D26R

sub28800-54474

main28800-54473i2KDFTV..KDH212..GEN202208-202506

80D26R,BATTERY-80D26R X 2(55AH X 2)

sub28800-54474

main28800-54473i2KDFTV..KDH222..03S,14S;2KDFTV..KDH200,202,222..GCC,GEN202208-202506

80D26R,BATTERY-80D26R(55AH)

sub28800-54474

main28800-67123i1KDFTV..KDH203..12S..GEN201312-202208

105D31R

sub28800-67124

main28800-67124i1KDFTV..KDH201..4D..5F;1KDFTV,5LE..KDH203,223,LH20#,222..03S,12S,15S,16S202209-202305

105D31R

sub28800-67125

main28800-67125i1KDFTV..KDH201..4D..5F..GEN;1KDFTV,5LE..KDH203,223,LH20#,222..03S,12S,15S,16S202306-202403

105D31R

sub28800-44070

main28800-67126i1KDFTV..KDH201,203,223..4D..(03S,15S,16S)..5F..(GEN,KEN,TH)202404-202506

105D31R

main28800-67131i1KDFTV..KDH203..12S..GEN¥0201312-202305

85D26R,BATTERY-85D26R X 2(55AH X 2)

sub28800-67132

main28800-67131i1KDFTV..KDH203..12S..GEN¥0201312-202305

85D26R

sub28800-67132

main28800-67132i1GDFTV..GDH201,223202306-202404

85D26R

main28800-67133i1GDFTV..GDH201,223202405

85D26R

sub28800-35010

28800ATERMINAL, BATTERY POSITIVE

main90982-05064i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2TRFE..TRH223..RHD..GEN;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA);2KDFTV,2TRFE..KDH222,TRH223..STD¥850201312-202507

main90982-05066i2KDFTV,2TRFE..KDH222,TRH223..STD..SA201402

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-26150i2KDFTV..KDH222..KEN¥570201312-202506

main82821-26160i2TRFE..TRH221..SA¥790201312-202506

main82821-26330i2TRFE..TRH223..STD..SA201402

main82821-26340i2KDFTV..KDH222..STD..SA201402

main82821-26360i1TRFE..TRH200¥1,010201501-202507

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i2KDFTV,2TRFE..KDH222,TRH223..STD..SA¥390201402

main90982-06056i2TRFE..TRH201;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2KDFTV..KDH200..LHD..5D;2TRFE..TRH223..ARL,RUS,TH;2TRFE..TRH213,221..GCC,TH;2TRFE..TRH223..5F..GL..GCC;¥850201312-202507

28897PLATE, BATTERY CAUTION

main28897-31040i2TRFE..TRH223..RUS¥180201312-201902

main28897-38030i2TRFE..TRH203..4FC201701-202506

main28897-38030i2KDFTV..KDH222..GL..GCC201701-201902

CAUCASUS(4 COUNTRIES) SPEC&COLD AREA SPEC

main28897-38030i2KDFTV..KDH222..GL..GCC201701-201902

BATTERY-80D26R X 2(55AH X 2)

main28897-50030i2TRFE..TRH213,223..(10S,13S)..GEN¥300201312-201902

VENEZUERA SPEC

sub28897-38060¥140

8202

8401

9415180801

main94151-80801¥80

8 parts on this diagram · 2 diagrams in section
