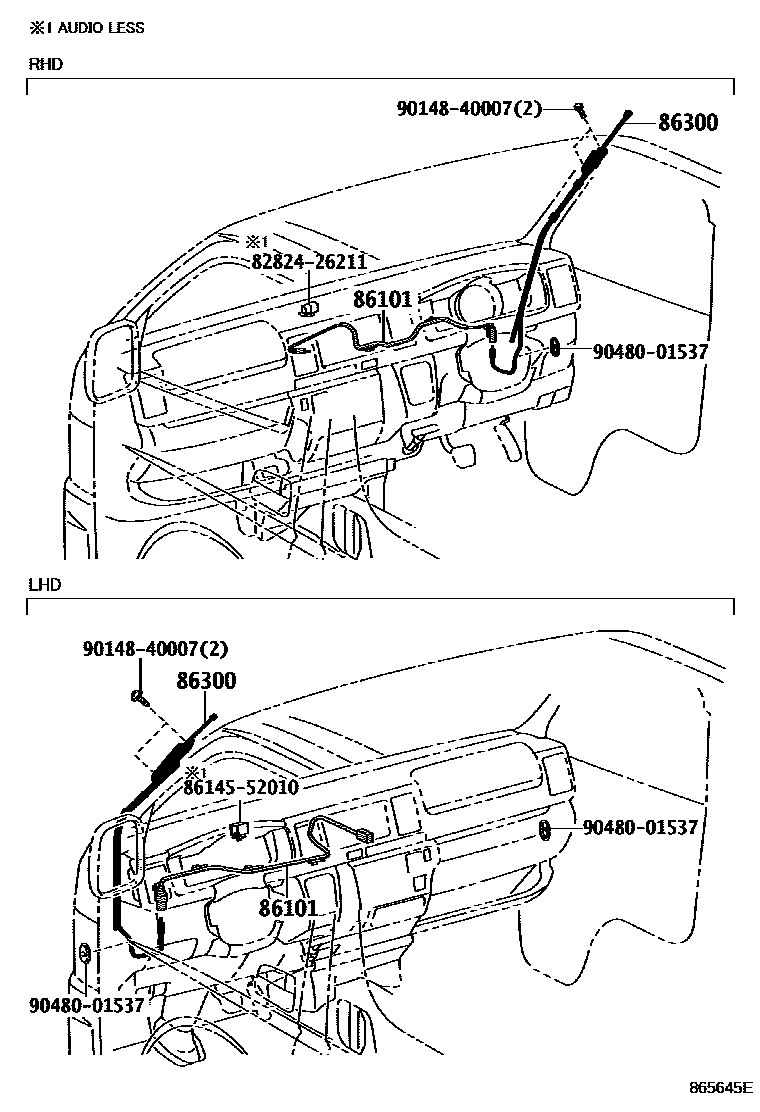

Toyota HIACE — ANTENNA

0001 1PILLAR ANTENNA 0002 1GLASS ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0L030iKDH202,TRH203..MA201401-201610

main86101-0L030iKDH201..MA;KDH223..4FC..TH;KDH203,TRH223..TH201401

main86101-0L030iKDH200..MA201401-202312

main86101-0L030iKDH223..5F..TH201401-201904

main86101-26300iKDH200,212,TRH213..SA¥2,650201312-201901

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26300iKDH200,212,TRH213..SA¥2,650201312-201901

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26300iKDH200,212,TRH213..SA¥2,650201312-201901

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86101-26300iKDH200,212,TRH213..SA¥2,650201312-201901

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86101-26300iLH200..5D;KDH200,TRH213..RHD..GEN¥2,650201312-201901

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86101-26300iLH200..5D;KDH200,TRH213..RHD..GEN¥2,650201312-201901

AUDIO(FOR OVERSEAS MARKET)-AM/FM 2SPEAKER

main86101-26300iKDH220,222,TRH22#..(03S,14S)..SA¥2,650201312-201902

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86101-26300iKDH220,222,TRH22#..(03S,14S)..SA¥2,650201312-201902

AUDIO(FOR OVERSEAS MARKET)-AM/FM 2SPEAKER

main86101-26300iKDH220,222,TRH22#..(03S,14S)..SA¥2,650201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26300iKDH220,222,TRH22#..(03S,14S)..SA¥2,650201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26300iKDH220,222,TRH22#..(03S,14S)..SA¥2,650201312-201902

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86101-26300iTRH200..6FC¥2,650201312-202107

main86101-26300iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA¥2,650201911-202107

main86101-26300iKDH222..KEN¥2,650202007-202212

main86101-26300iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥2,650201312-202301

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86101-26300iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥2,650201312-202301

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26300iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥2,650201312-202301

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26300iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥2,650201312-202301

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86101-26300iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥2,650201312-202301

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86101-26300iTRH221..SA¥2,650201904-202312

main86101-26300iTRH200..5F¥2,650201312-202506

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86101-26300iTRH200..5F¥2,650201312-202506

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26300iTRH200..5F¥2,650201312-202506

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26300iTRH200..5F¥2,650201312-202506

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86101-26300iTRH200..5F¥2,650201312-202506

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86101-26300iTRH200..03S..6FC¥2,650201312-202507

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86101-26300iTRH200..03S..6FC¥2,650201312-202507

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86101-26300iTRH200..03S..6FC¥2,650201312-202507

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86101-26300iKDH222..RHD..GL..GEN;KDH201..4D..03S..5F..(GEN,TH);GDH201,223,KDH221,TRH201..RHD;KDH223..RHD..5F..(ARL,GEN,KEN);KDH222,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);KDH2¥2,650201312

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26300iKDH222..RHD..GL..GEN;KDH201..4D..03S..5F..(GEN,TH);GDH201,223,KDH221,TRH201..RHD;KDH223..RHD..5F..(ARL,GEN,KEN);KDH222,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);KDH2¥2,650201312

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26300iKDH223..TH¥2,650201908

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26300iKDH223..TH¥2,650201908

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26300iKDH222..GL..SA¥2,650201911

main86101-26300iKDH222..KEN¥2,650202212

main86101-26310iTRH221..SP..GEN¥2,650201312-201902

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86101-26310iTRH213..GCC;KDH222,223,TRH203,223..LHD..STD..GEN;KDH202,212,LH212..LHD..(13S,15S,16S)..STD¥2,650201312

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26310iKDH222..GL..GCC;TRH223..5F..GL..GEN¥2,650201312-201902

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86101-26310iTRH221..GEN¥2,650201312-201902

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86101-26310iKDH222,TRH223..STD..GCC¥2,650201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26310iKDH222,TRH223..STD..GCC¥2,650201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26310iKDH223..RUS,VN;TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH212,222..LHD..4D..GL..GEN;KDH203,213,223,TRH213..(10S,13S,14S,15S)..GEN¥2,650201312

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26310iTRH223..GL..GEN¥2,650201908

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86101-26310iTRH223..GL..GEN¥2,650201908

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86101-26310iKDH222..GL..GCC¥2,650201909

main86101-26320iKDH213¥3,440201911-202004

main86101-26320iKDH213..TH¥3,440201312-201906

main86101-26320iTRH213..TH¥3,440201312-202004

main86101-26330iKDH21#..11S..GEN201312-201906

86300ANTENNA ASSY, W/HOLDER

main86300-0L010iKDH223..4FC..TH;KDH203,TRH223..TH;KDH201,202,223,TRH203..MA,VN201401

main86300-0L010iKDH200..MA201401-202312

main86300-0L010iKDH223..5F..TH201401-201904

main86300-26130iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..GEN¥3,090201312-201901

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86300-26130iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..GEN¥3,090201312-201901

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86300-26130iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..GEN¥3,090201312-201901

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..GEN¥3,090201312-201901

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86300-26130iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..GEN¥3,090201312-201901

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86300-26130iKDH222..5F..GL;KDH220,TRH221..03S..SA;TRH223..5F..GL..(GEN,SA)¥3,090201312-201902

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86300-26130iKDH222..5F..GL;KDH220,TRH221..03S..SA;TRH223..5F..GL..(GEN,SA)¥3,090201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86300-26130iKDH222..5F..GL;KDH220,TRH221..03S..SA;TRH223..5F..GL..(GEN,SA)¥3,090201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iKDH222..5F..GL;KDH220,TRH221..03S..SA;TRH223..5F..GL..(GEN,SA)¥3,090201312-201902

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86300-26130iKDH222..5F..GL;KDH220,TRH221..03S..SA;TRH223..5F..GL..(GEN,SA)¥3,090201312-201902

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86300-26130iTRH200..6FC¥3,090201312-202107

main86300-26130iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA¥3,090201911-202107

main86300-26130iKDH222..KEN¥3,090202007-202212

main86300-26130iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥3,090201312-202301

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86300-26130iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥3,090201312-202301

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86300-26130iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥3,090201312-202301

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥3,090201312-202301

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86300-26130iKDH223..4FC..ARL;KDH201,203..RHD..(02S,03S)..GEN¥3,090201312-202301

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86300-26130iLH222..RHD;KDH200..LHD..5D..GEN;KDH202,222,LH212,TRH203..STD..GEN;KDH201,203,212,220,223,TRH201,213,223..LHD..(02S,03S,12S,13S,16S)..STD..GEN¥3,090201312-202507

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main86300-26130iTRH213..LHD..STD..GEN¥3,090201312-202507

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86300-26130iTRH213..LHD..STD..GEN¥3,090201312-202507

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iTRH213..LHD..STD..GEN¥3,090201312-202507

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86300-26130iTRH223..4FC..GL;KDH221,TRH201..RHD;TRH223..5F..GL..(GCC,RUS);KDH201..4D..03S..5F..(GEN,TH);KDH223..RHD..5F..(ARL,GEN,KEN);KDH212,222,223..4D..GL..(GEN,RUS);KDH222,T¥3,090201312

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86300-26130iTRH223..4FC..GL;KDH221,TRH201..RHD;TRH223..5F..GL..(GCC,RUS);KDH201..4D..03S..5F..(GEN,TH);KDH223..RHD..5F..(ARL,GEN,KEN);KDH212,222,223..4D..GL..(GEN,RUS);KDH222,T¥3,090201312

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iKDH223..TH;TRH223..GL..GEN¥3,090201908

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86300-26130iKDH223..TH;TRH223..GL..GEN¥3,090201908

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iKDH222..GL..GCC¥3,090201909

main86300-26130iKDH222..GL..SA¥3,090201911

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86300-26130iKDH222..GL..SA¥3,090201911

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iKDH222..KEN¥3,090202212

main86300-26130iTRH221..SA¥3,090201904-202312

main86300-26130iTRH200..5F¥3,090201312-202506

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main86300-26130iTRH200..5F¥3,090201312-202506

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 2SPEAKER

main86300-26130iTRH200..5F¥3,090201312-202506

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

main86300-26130iTRH200..5F¥3,090201312-202506

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main86300-26130iTRH200..5F¥3,090201312-202506

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

8282426211CONNECTOR, WIRING HARNESS

main82824-26211¥550

8614552010CONNECTOR, ANTENNA MALE

main86145-52010¥170

9014840007

main90148-40007¥80

9048001537

main90480-01537¥210

6 parts on this diagram · 2 diagrams in section
