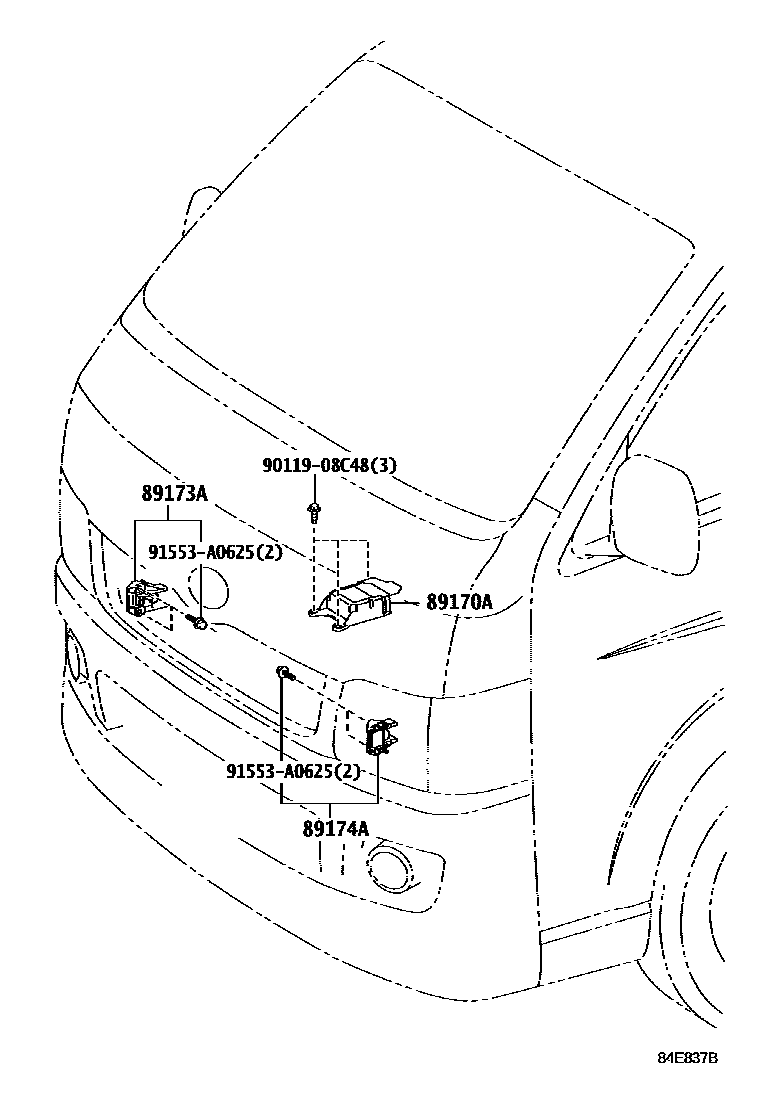

Toyota HIACE — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-26300iTRH201..LHD;KDH200,202,203,LH20#,TRH203..(03S,12S,15S)..(GCC,GEN)¥65,700201312-201501
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89170-26310iTRH201..03S;TRH201..06S..GCC;KDH201..RHD..SP..GEN;KDH200,202,203,LH20#,TRH200,203..GCC,GEN,SA¥65,700201312-201501
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89170-26330iKDH223;TRH223..4FC..GEN;KDH21#,221,TRH213..02S,03S,10S,11S;KDH222,TRH22#..(02S,12S,14S,16S)..(ARL,RUS,SA,TH)¥65,700201312-201501
MEXICO SPEC&SRS AIR BAG-WITHOUT
main89170-26330iKDH223;TRH223..4FC..GEN;KDH21#,221,TRH213..02S,03S,10S,11S;KDH222,TRH22#..(02S,12S,14S,16S)..(ARL,RUS,SA,TH)¥65,700201312-201501
VENEZUERA SPEC&REAR SEAT BELT-2 POINT TYPE(FOR 12 PERSONS)&SRS AIR BAG-WITHOUT
main89170-26330iKDH223;TRH223..4FC..GEN;KDH21#,221,TRH213..02S,03S,10S,11S;KDH222,TRH22#..(02S,12S,14S,16S)..(ARL,RUS,SA,TH)¥65,700201312-201501
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
EGYPT SPEC&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
EGYPT SPEC&AMBURANCE BASE&REAR SEAT BELT-WITHOUT&SRS AIR BAG-WITH(DRIVER SEAT SIDEONLY)
SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&SRS AIR BAG-WITHOUT
main89170-26390iKDH201..SG;KDH201..ARL;TRH201..RHD..(ARL,GEN);GDH201,KDH202,TRH200,203..03S,10S¥45,500201501-202401
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11PERSONS)&SRS AIR BAG-WITHOUT
CAUCASUS(4 COUNTRIES) SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&AMBURANCE BASE&REAR SEAT BELT-WITHOUT&SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&SRS AIR BAG-WITHOUT
EGYPT SPEC&FRONT SEAT BELT-PRETENSIONER:W/O(*DRP) & CENTER SEAT&SRS AIR BAG-WITHOUT
EGYPT SPEC&SRS AIR BAG-WITHOUT
NIGERIA SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&SRS AIR BAG-WITHOUT
FRONT SEAT BELT-PRETENSIONER:W/O(*DRP) & CENTER SEAT&SRS AIR BAG-WITHOUT
CAUCASUS(4 COUNTRIES) SPEC&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&FRONT SEAT BELT-PRETENSIONER:W/O(*DRP) & CENTER SEAT&SRS AIR BAG-WITHOUT
EGYPT SPEC&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&AMBURANCE BASE&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13PERSONS)&SRS AIR BAG-WITHOUT
NIGERIA SPEC&AMBURANCE BASE&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIR BAG-WITHOUT
NIGERIA SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
AMBURANCE BASE&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIRBAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
VIETNAM SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
ARGENTINA SPEC&SRS AIR BAG-WITHOUT
VENEZUERA SPEC&REAR SEAT BELT-2 POINT TYPE(FOR 12 PERSONS)&SRS AIR BAG-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
PERU SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIR BAG-WITHOUT
PERU SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
PERU SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&SRS AIR BAG-WITHOUT
VIETNAM SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIR BAG-WITHOUT
VIETNAM SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
CAUCASUS(4 COUNTRIES) SPEC&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
CAUCASUS(4 COUNTRIES) SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&FRONT SEAT BELT-PRETENSIONER:W/O(*DRP) & CENTER SEAT&SRS AIR BAG-WITHOUT
FRONT SEAT BELT-PRETENSIONER:W/O(*DRP) & CENTER SEAT&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11PERSONS)&SRS AIR BAG-WITHOUT
AMBURANCE BASE&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIRBAG-WITHOUT
EGYPT SPEC&AMBURANCE BASE&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&FRONT SEAT BELT-PRETENSIONER:W/O(*DRP) & CENTER SEAT&SRS AIR BAG-WITHOUT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11 PERSONS)&SRS AIR BAG-WITHOUT
AMBURANCE BASE&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-WITHOUT&SRS AIRBAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-2 POINT TYPE(FOR 11PERSONS)&SRS AIR BAG-WITHOUT
EGYPT SPEC&ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT&REAR SEAT BELT-3 POINT TYPE(FOR 13PERSONS)&SRS AIR BAG-WITHOUT
89173ASENSOR, AIRBAG, FRONT RH
main89173-29245iKDH223;TRH223..4FC..GEN;KDH201,203,221,TRH200,201..RHD;KDH201,212,TRH213..(02S,10S,11S)..(GEN,SA,TH);KDH200,202,213,220,222,TRH203,22#..ARL,MA,RUS,SA,TH¥13,200201312-201501
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
main89173-29245iKDH223;TRH223..4FC..GEN;KDH201,203,221,TRH200,201..RHD;KDH201,212,TRH213..(02S,10S,11S)..(GEN,SA,TH);KDH200,202,213,220,222,TRH203,22#..ARL,MA,RUS,SA,TH¥13,200201312-201501
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89173-29245iKDH223;TRH223..4FC..GEN;KDH201,203,221,TRH200,201..RHD;KDH201,212,TRH213..(02S,10S,11S)..(GEN,SA,TH);KDH200,202,213,220,222,TRH203,22#..ARL,MA,RUS,SA,TH¥13,200201312-201501
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SRS AIR BAG-WITHOUT
89174ASENSOR, AIRBAG, FRONT LH
main89173-29245iLH212,TRH201..LHD;TRH223..16S..(GCC,GEN);KDH200,202,203,212,220,222,LH20#,222,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN)¥13,200201312-201501
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
main89173-29245iLH212,TRH201..LHD;TRH223..16S..(GCC,GEN);KDH200,202,203,212,220,222,LH20#,222,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN)¥13,200201312-201501
SRS AIR BAG-WITHOUT
main89173-29245iLH212,TRH201..LHD;TRH223..16S..(GCC,GEN);KDH200,202,203,212,220,222,LH20#,222,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN)¥13,200201312-201501
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SRS AIR BAG-WITHOUT
9011908C48
91553A0625
5 parts on this diagram · 1 diagram in section
