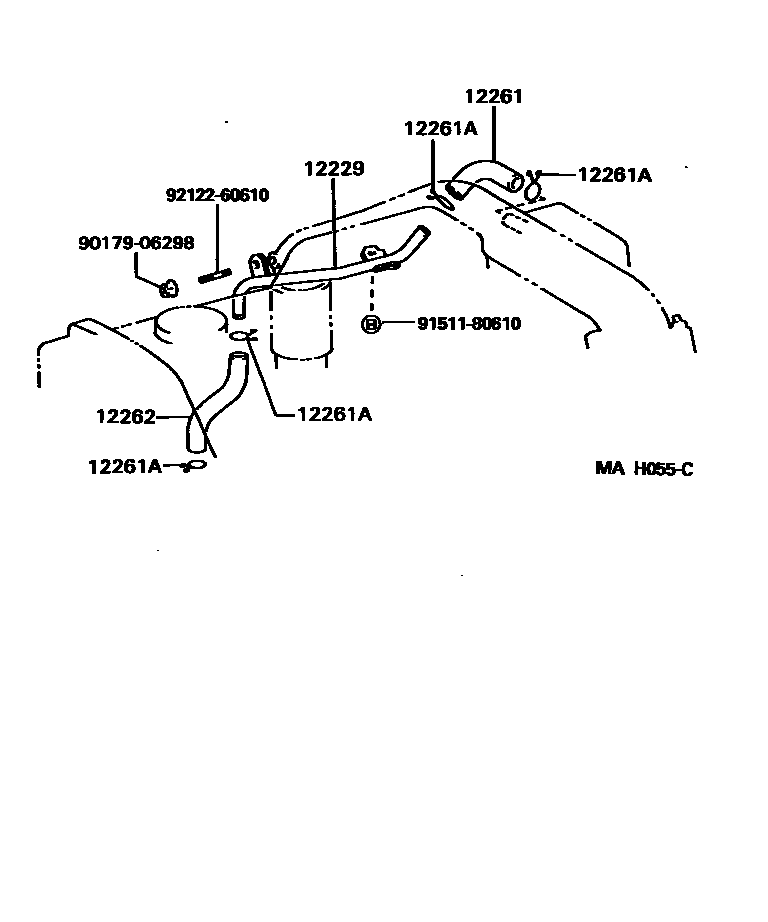

Toyota HIACE/REGIUSACE — VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12229PIPE, VENTILATION

main12229-67010i1KZTE..KZH10#,11#,12#,13#¥1,800199308-199605

sub12229-67011¥1,800

main12229-67011i1KZTE..KZH10#,11#,12#,13#¥1,800199605-199907

main12229-67040i1KZTE..KZH10#,11#,120,13#¥2,010199907-200408

main12229-75040i1TRFE..TRH102,112,12#¥1,550200308-200501

12261HOSE, VENTILATION

main12261-54130i5L..LH16#,17#,18#¥600198908-200408

main12261-54140i2LT..LH100,120¥750198908-199010

main12261-54170i2LTE..LH100,120¥980199010-199308

main12261-67010i1KZTE..KZH10#,11#,12#,13#¥750199308-200408

main12261-75010i1RZ#,2RZE..RZH10#,11#,12#,133¥740198908-199509

sub12262-75060¥750

main12261-75100i1TRFE..TRH102,112,12#¥540200308-200501

main12262-75060i1RZE,2RZE..RZH10#,11#,12#,18#¥750199509-200308

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i1TRFE..TRH102,112,12#¥70198908-200501

main90467-18003i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥120198908-200408

main90467-22010i1KZTE..KZH10#,11#,12#,13#¥130199308-200408

12262HOSE, VENTILATION, NO.2

main12262-54020i2LT#..LH100,120¥870198908-199308

main12262-67010i1KZTE..KZH10#,11#,12#,13#¥940199308-199907

main12262-67040i1KZTE..KZH10#,11#,120,13#¥850199907-200408

main12262-75010i1RZE,2RZE..RZH10#,11#,12#,18#¥750198908-200308

main12262-75040i1RZ..RZH102,112,12#¥880198908-199308

main12262-75200i1TRFE..TRH102,112,12#¥940200308-200501

9017906298

main90179-06298¥90

9151180610

main91511-80610¥60

9212260610

main92122-60610¥130

7 parts on this diagram · 6 diagrams in section
