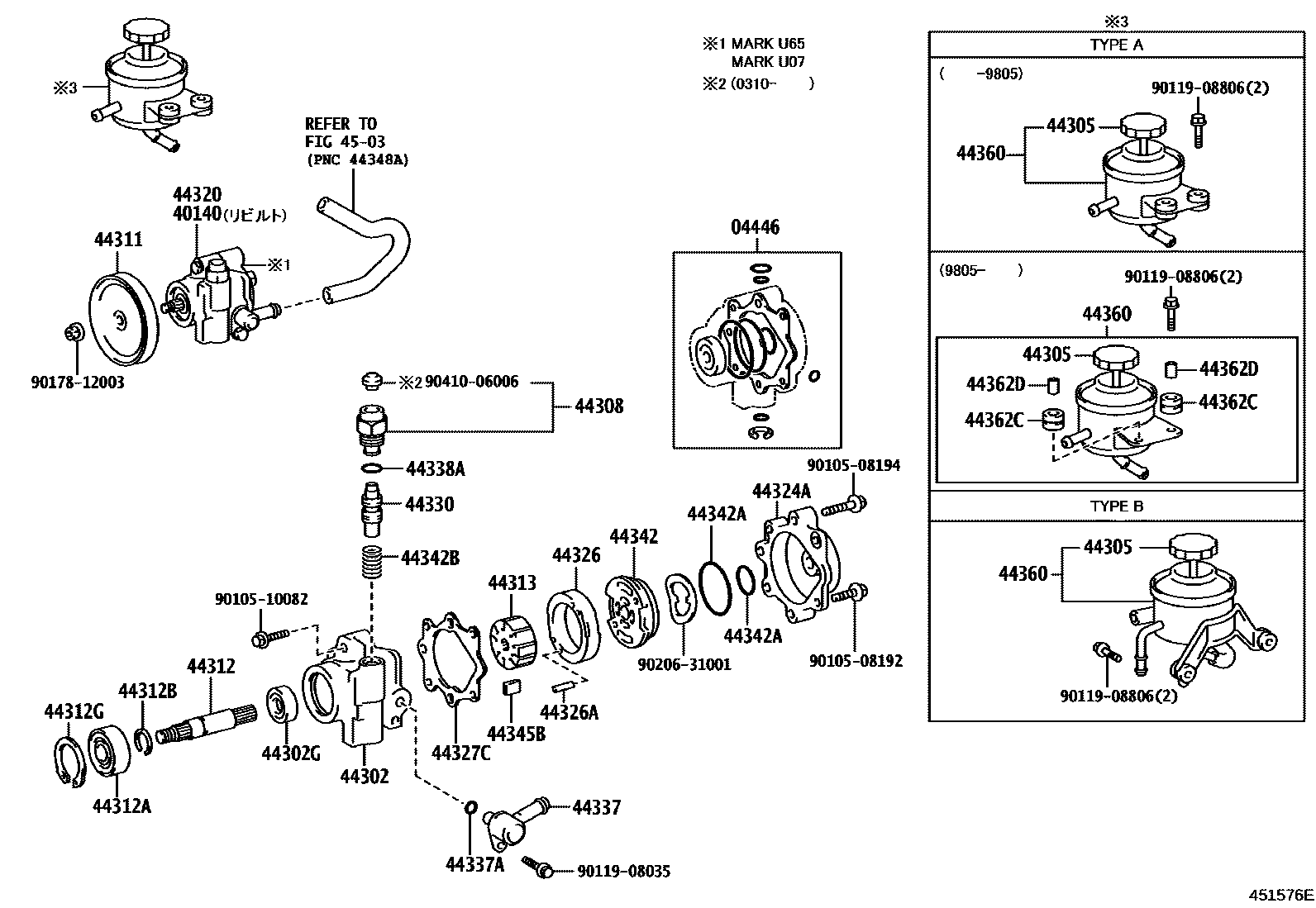

Toyota HIACE/REGIUSACE — VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26020iLH10#,11#,12#,140,RZH10#,11#,12#¥1,810198908-199402

sub04446-30120¥2,530

main04446-26040iKZH10#,11#,12#¥2,650199308-199508

sub04446-26050¥1,810

main04446-26040iKZH10#,11#,12#,13#¥2,650199608-199609

sub04446-26050¥1,810

main04446-26050iKZH10#,11#,120,13#¥1,810199907-200408

main04446-26050iKZH10#,11#,12#,13#¥1,810199609-199907

main04446-30120iLH168,178,186,188,RZH10#,11#,12#,18#¥2,530199907-200401

main04446-30120iLH109,119,129,168,178,186,188,RZH10#,11#,12#,133¥2,530199805-199907

main04446-30120iLH10#,11#,12#,RZH10#,11#,124,133¥2,530199402-199805

main04446-32050iTRH102,112,12#¥970200308-200501

main04446-34010iLH162,172,182,184¥2,320199907-200208

sub04446-53030¥1,360

main04446-34010iLH103,113,123,125,162,172,182,184¥2,320199805-199907

sub04446-53030¥1,360

main04446-43010iLH168,178,186,188¥1,480200401-200408

main04446-53030iLH162,172,182,184¥1,360200208-200408

main04446-60091iKZH10#,11#,12#,13#¥2,280199508-199608

40140PUMP ASSY,VANE REBUILT

main40140-26063iRZH101,111,133¥57,400199608-199907

TOYODA KOKI

sub44320-26063¥81,900

main40140-26063iRZH101,111¥57,400199907-200208

TOYODA KOKI

sub44320-26063¥81,900

main40140-26063iLH109,117,119,129,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥57,400198908-199408

TOYODA KOKI

sub44320-26063¥81,900

main40140-26063iLH109,119,129,RZH10#,11#,124,133¥57,400199408-199608

TOYODA KOKI

sub44320-26063¥81,900

main40140-26073iLH100,102,103,110,113,115,120,123,125,140..03S,05S,06S,08S,09S,10S,15S¥57,300198908-199608

TOYODA KOKI

sub44320-26073¥81,300

main40140-26074iLH103,113,123,125¥57,300199608-199808

TOYODA KOKI

sub44320-26074¥81,600

main40140-26103iRZH101..SCL¥63,100199308-199408

TOYODA KOKI

sub44320-26103¥81,300

main40140-26103iLH107¥63,100198908-199308

TOYODA KOKI

sub44320-26103¥81,300

main40140-26115iLH100,RZH100,101..SCL..(EFI,TDE)¥63,100198908-199308

TOYODA KOKI

sub44320-26115¥81,300

main40140-26200iRZH102,112,12#,18#¥57,300199907-200308

TOYODA KOKI

sub44320-26200¥81,600

main40140-26200iLH109,119,129,168,178,186,188,RZH102,112,12#¥57,300199608-199907

TOYODA KOKI

sub44320-26200¥81,600

main40140-26200iLH168,178,186,188¥57,300199907-200202

�s�n�x�n�c�`�@�j�n�j�h

sub44320-26200¥81,600

main40140-26270iLH162,172,182,184¥57,400200208-200408

�s�n�x�n�c�`�@�j�n�j�h

sub44320-26270¥81,700

main40140-26270iLH162,172,182,184¥57,400199808-199907

TOYODA KOKI

sub44320-26270¥81,700

main40140-26270iLH162,172,182,184¥57,400199907-200208

TOYODA KOKI

sub44320-26270¥81,700

main40140-26270iLH162,172..5F..CD¥57,400200012-200408

�s�n�x�n�c�`�@�j�n�t�j�h

sub44320-26270¥81,700

main40140-26270iLH162,172..V1..5D..5F¥57,400200108-200408

�s�n�x�n�c�`�@�j�n�t�j�h

sub44320-26270¥81,700

main40140-26280iLH168,178,186,188¥57,400200202-200408

�s�n�x�n�c�`�@�j�n�j�h

sub44320-26280¥81,700

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-26010iLH10#,11#,12#,140,RZH10#,11#,12#¥17,300198908-199105

sub44302-26011¥19,700

main44302-26011iLH10#,11#,12#,140,RZH10#,11#,12#¥19,700199105-199308

main44302-26012iLH168,178,186,188¥19,900199907-200202

main44302-26012iLH10#,11#,12#,168,178,186,188,RZH10#,11#,12#,133¥19,900199308-199907

main44302-26012iRZH10#,11#,12#,18#¥19,900199907-200308

main44302-26020iKZH10#,11#,12#,13#¥16,900199308-199907

main44302-26020iKZH10#,11#,120,13#¥16,900199907-200408

main44302-26030iLH162,172,182,184¥19,900199907-200408

main44302-26030iLH162,172,182,184¥19,900199808-199907

main44302-26050iLH168,178,186,188¥19,900200202-200408

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-15012iTRH102,112,12#¥160200310-200501

main90311-17007iLH10#,11#,12#,140,168,178,186,188,RZH10#,11#,12#,133¥190198908-199907

main90311-17007iLH168,178,186,188¥190199907-200202

main90311-17007iRZH10#,11#,12#,18#¥190199907-200308

main90311-18015iLH162,172,182,184¥210199907-200408

main90311-18015iLH168,178,186,188¥210200202-200408

main90311-18015iLH162,172,182,184¥210199808-199907

main90316-17004iKZH10#,11#,12#,13#¥500199308-199907

main90316-17004iKZH10#,11#,120,13#¥500199907-200408

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥1,940199907-200501

sub44305-22060¥1,940

main44305-22040iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥1,940199307-199907

sub44305-22060¥1,940

main44305-27010iLH10#,11#,12#,140,RZH10#,11#,12#¥2,010198908-199307

sub44305-22040¥1,940

44308UNION SUB-ASSY, PRESSURE PORT

main44308-14080iLH100,RZH100,101..SCL¥4,270199104-199105

main44308-14081iLH100,RZH100,101..SCL¥4,240199105-199308

main44308-26040iLH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥1,700198908-199105

main44308-26041iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥1,690199408-199907

main44308-26041iRZH101,111¥1,690199907-200208

main44308-26041iLH16#,17#,18#¥1,690199907-200408

main44308-26041iRZH102,112,12#,18#¥1,690199907-200308

main44308-26041iLH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥1,690199105-199408

main44308-26050iLH100,RZH100,101..SCL¥1,700198908-199104

sub44308-14080¥4,270

main44308-26060iLH107;RZH100,101..SCMM¥1,700198908-199010

��(���������� ���- �������)

main44308-26060iLH107..SCL¥1,700199010-199105

��(���������� ���- �������)

main44308-26061iRZH101..SCL¥1,690199308-199408

main44308-26061iLH107¥1,690199105-199308

main44308-26080iKZH10#,11#,12#..08S,09S,10S¥1,430199308-199408

main44308-26080iKZH10#,11#,12#,13#¥1,430199408-199907

main44308-26080iKZH10#,11#,120,13#¥1,430199907-200408

main44308-26090iKZH10#..SCL¥1,690199308-199408

44311PULLEY, VANE PUMP

main44311-26010iRZH102,112,12#,18#¥7,100199907-200308

main44311-26010iRZH10#,11#,12#,133¥7,100198908-199907

main44311-26010iRZH101,111¥7,100199907-200208

main44311-26020iLH100,102,110,113,115,120,123,125,140¥7,200198908-199308

main44311-26030iLH107,109,117,119,129¥6,800198908-199105

sub44311-26031¥6,700

main44311-26031iLH107,109,117,119,129¥6,700199105-199308

main44311-26031iLH10#,11#,12#,168,178,186,188¥6,700199308-199907

main44311-26031iLH168,178,186,188¥6,700199907-200202

main44311-26050iLH162,172,182,184¥5,500199808-199907

main44311-26050iLH162,172,182,184¥5,500199907-200408

main44311-26070iLH162,172..5F..CD¥4,760200008-200408

������

main44311-26070iLH162,172..V1..5D..5F¥4,760200108-200408

������

main44311-26080iLH168,178,186,188¥7,100200202-200408

44312SHAFT, VANE PUMP

main44312-26010iLH168,178,186,188¥1,720199907-200202

�O�a���P�V�D�O�O�X�|�P�V�D�O�P�S

main44312-26010iLH107,109,117,119,129,RZH10#,11#,12#¥1,720198908-199101

�O�a���P�V�D�O�O�X�|�P�V�D�O�P�S

main44312-26010iRZH100,101..08S,09S;LH107,109,117,119,129,RZH102,11#,12#¥1,720199101-199308

�O�a���P�V�D�O�O�X�|�P�V�D�O�P�S

main44312-26010iLH10#,11#,12#,RZH10#,112,124¥1,720199308-199508

�O�a���P�V�D�O�O�X�|�P�V�D�O�P�S

main44312-26010iLH10#,11#,12#,168,178,186,188,RZH10#,11#,12#,133¥1,720199608-199907

�O�a���P�V�D�O�O�X�|�P�V�D�O�P�S

main44312-26010iRZH10#,11#,12#,18#¥1,720199907-200308

�O�a���P�V�D�O�O�X�|�P�V�D�O�P�S

main44312-26020iLH168,178,186,188¥1,720199907-200202

�O�a���P�V�D�O�O�S�|�P�V�D�O�O�X

main44312-26020iLH10#,11#,12#,140,168,178,186,188,RZH10#,11#,12#,133¥1,720198908-199907

�O�a���P�V�D�O�O�S�|�P�V�D�O�O�X

main44312-26020iRZH10#,11#,12#,18#¥1,720199907-200308

�O�a���P�V�D�O�O�S�|�P�V�D�O�O�X

main44312-32020iLH162,172,182,184¥1,300199808-199907

�O�a���P�W�D�O�O�P�|�P�W�D�O�O�U

main44312-32020iLH162,172,182,184¥1,300199907-200408

main44312-32020iLH168,178,186,188¥1,300200202-200408

main44312-60020iKZH10#,11#,120,13#¥770199907-200408

main44312-60020iKZH10#,11#,12#,13#¥770199308-199907

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17008iLH10#,11#,12#,140,168,178,186,188,RZH10#,11#,12#,133¥1,240198908-199907

sub90363-17013¥1,240

main90363-17013iRZH101,111¥1,240199907-200208

main90363-17013iLH168,178,186,188¥1,240199907-200202

main90363-17013iRZH102,112,12#,18#¥1,240199907-200308

main90363-17016iKZH10#,11#,120,13#¥1,240199907-200408

main90363-17016iKZH10#,11#,12#,13#¥1,240199308-199907

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iLH162,172,182,184¥140199907-200501

main90520-10003iTRH102,112,12#¥140200310-200501

main90520-10003iLH162,172,182,184¥140199808-199907

main90520-10003iLH168,178,186,188¥140200202-200501

main90520-15001iLH10#,11#,12#,140,168,178,186,188,RZH10#,11#,12#,133¥240198908-199907

main90520-15005iKZH10#,11#,120,13#,RZH10#,11#,12#,18#¥80199907-200408

main90520-15005iLH168,178,186,188¥80199907-200202

main90520-15005iKZH10#,11#,12#,13#¥80199308-199907

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90520-38016iKZH10#,11#,120,13#¥50199907-200408

main90520-38016iKZH10#,11#,12#,13#¥50199308-199907

main90521-44002iLH168,178,186,188¥580199907-200202

main90521-44002iRZH10#,11#,12#,18#¥580199907-200308

main90521-44002iLH10#,11#,12#,140,168,178,186,188,RZH10#,11#,12#,133¥580198908-199907

44313ROTOR, VANE PUMP

main44313-26060iKZH10#,11#,120,13#,LH162,172,182,184,RZH10#,11#,12#,18#¥7,700199907-200408

�}�[�N����

main44313-26060iLH168,178,186,188¥7,700200202-200408

�}�[�N����

main44313-26060iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥7,700198908-199907

�}�[�N����

main44313-26070iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥7,700198908-199907

�}�[�N�@�P

main44313-26070iLH168,178,186,188¥7,700200202-200408

�}�[�N�@�P

main44313-26070iKZH10#,11#,120,13#,LH162,172,182,184,RZH10#,11#,12#,18#¥7,700199907-200408

�}�[�N�@�P

main44313-26080iKZH10#,11#,120,13#,LH162,172,182,184,RZH10#,11#,12#,18#¥7,700199907-200408

�}�[�N�@�Q

main44313-26080iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥7,700198908-199907

�}�[�N�@�Q

main44313-26080iLH168,178,186,188¥7,700200202-200408

�}�[�N�@�Q

main44313-26090iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥7,700198908-199907

�}�[�N�@�R

main44313-26090iLH168,178,186,188¥7,700200202-200408

�}�[�N�@�R

main44313-26090iKZH10#,11#,120,13#,LH162,172,182,184,RZH10#,11#,12#,18#¥7,700199907-200408

�}�[�N�@�R

main44313-26100iKZH10#,11#,120,13#,LH162,172,182,184,RZH10#,11#,12#,18#¥7,700199907-200408

�}�[�N�@�S

main44313-26100iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥7,700198908-199907

�}�[�N�@�S

main44313-26100iLH168,178,186,188¥7,700200202-200408

�}�[�N�@�S

main44313-32060iTRH102,112,12#¥5,900200310-200501

�}�[�N����

main44313-32070iTRH102,112,12#¥5,900200310-200501

�}�[�N�@�P

main44313-32080iTRH102,112,12#¥5,900200310-200501

�}�[�N�@�Q

main44313-32090iTRH102,112,12#¥5,900200310-200501

�}�[�N�@�R

main44313-32100iTRH102,112,12#¥5,900200310-200501

�}�[�N�@�S

44320PUMP ASSY, VANE

main44310-25140iTRH102,112,12#¥87,400200308-200501

main44310-26200iKZH10#,11#,12#¥94,600199408-199508

main44310-26200iKZH10#,11#,12#..08S,09S,10S¥94,600199308-199408

main44310-26210iKZH10#..SCL¥94,200199308-199408

main44310-26250iKZH10#,11#,120,13#¥81,700199907-200408

main44310-26250iKZH10#,11#,12#,13#¥81,700199508-199907

main44320-26060iLH109,119,129,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥82,100198908-199007

sub44320-26061¥82,100

main44320-26061iLH109,117,119,129,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥82,100199007-199101

sub44320-26062¥82,100

main44320-26062iLH109,117,119,129,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥82,100199101-199105

sub44320-26063¥81,900

main44320-26063iLH109,117,119,129,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥81,900199105-199408

main44320-26063iLH109,119,129,RZH10#,11#,124,133¥81,900199408-199608

main44320-26063iRZH101,111¥81,900199907-200208

main44320-26063iRZH101,111,133¥81,900199608-199907

main44320-26070iLH100,102,110,113,115,120,123,125..CD,CTM,DX,GL,SCM,SCMM,SGL¥82,100198908-199007

sub44320-26071¥82,100

main44320-26071iLH100,102,110,113,115,120,123,125,140..03S,05S,06S,08S,09S,10S,15S¥82,100199007-199101

sub44320-26072¥82,100

main44320-26072iLH100,102,110,113,115,120,123,125,140..03S,05S,06S,08S,09S,10S,15S¥82,100199101-199105

sub44320-26073¥81,300

main44320-26073iLH100,102,103,110,113,115,120,123,125,140..03S,05S,06S,08S,09S,10S,15S¥81,300199105-199608

main44320-26074iLH103,113,123,125¥81,600199608-199808

main44320-26100iLH107;RZH100,101..SCMM¥82,100198908-199007

��(���������� ���- �������)

sub44320-26101¥82,100

main44320-26101iLH107;RZH100,101..SCMM¥82,100199007-199010

��(���������� ���- �������)

sub44320-26102¥82,100

main44320-26101iLH107..SCL¥82,100199010-199101

��(���������� ���- �������)

sub44320-26102¥82,100

main44320-26102iLH107¥82,100199101-199105

sub44320-26103¥81,300

main44320-26103iRZH101..SCL¥81,300199308-199408

main44320-26103iLH107¥81,300199105-199308

main44320-26110iLH100,RZH100,101..SCL¥82,100198908-199007

sub44320-26111¥82,100

main44320-26111iLH100,RZH100,101..SCL¥82,100199007-199101

sub44320-26112¥81,300

main44320-26112iLH100,RZH100,101..SCL¥81,300199101-199104

sub44320-26H01¥82,100

sub44320-26H02¥82,100

sub44320-26H03¥82,100

main44320-26114iLH100,RZH100,101..SCL¥82,100199104-199105

sub44320-26115¥81,300

main44320-26115iLH100,RZH100,101..SCL¥81,300199105-199308

main44320-26200iLH168,178,186,188¥81,600199907-200202

MARK U65

main44320-26200iRZH102,112,12#,18#¥81,600199907-200308

MARK U65

main44320-26200iLH109,119,129,168,178,186,188,RZH102,112,12#¥81,600199608-199907

MARK U65

main44320-26270iLH162,172,182,184¥81,700199808-199907

main44320-26270iLH162,172,182,184¥81,700199907-200408

main44320-26280iLH168,178,186,188¥81,700200202-200408

MARK U07

44324AHOUSING, PUMP, REAR

main44324-26030iRZH100,101..08S,09S;LH107,109,117,119,129,RZH102,11#,12#¥4,160199101-199112

main44324-26030iLH107,109,117,119,129,RZH10#,11#,12#¥4,160198908-199101

main44324-26031iRZH102,112,12#,18#¥4,180199907-200308

main44324-26031iRZH101,111¥4,180199907-200208

main44324-26031iRZH100,101..08S,09S;LH107,109,117,119,129,RZH102,11#,12#¥4,180199112-199308

main44324-26031iLH168,178,186,188¥4,180199907-200408

main44324-26031iLH109,119,129,168,178,186,188,RZH10#,11#,12#,133¥4,180199308-199907

main44324-26040iLH100,102,110,113,115,120,123,125,140¥3,990198908-199101

main44324-26040iRZH100,101..SCL;LH100,102,110,113,115,120,123,125,140¥3,990199101-199112

main44324-28030iLH103,113,123,125,162,172,182,184¥2,510199308-199907

main44324-28030iRZH100,101..SCL;LH100,102,110,113,115,120,123,125,140¥2,510199112-199308

main44324-28030iLH162,172,182,184¥2,510199907-200408

main44324-60040iKZH10#,11#,12#,13#¥4,370199308-199907

main44324-60040iKZH10#,11#,120,13#¥4,370199907-200408

44326RING, CAM(FOR VANE PUMP)

main44325-12270iKZH10#,11#,120,13#¥4,350199907-200111

�}�[�N����

main44325-12270iKZH10#,11#,12#,13#¥4,350199308-199907

�}�[�N����

main44325-12280iKZH10#,11#,120,13#¥4,350199907-200111

�}�[�N�@�P

main44325-12280iKZH10#,11#,12#,13#¥4,350199308-199907

�}�[�N�@�P

main44325-12290iKZH10#,11#,120,13#¥4,350199907-200111

�}�[�N�@�Q

main44325-12290iKZH10#,11#,12#,13#¥4,350199308-199907

�}�[�N�@�Q

main44325-12300iKZH10#,11#,12#,13#¥4,350199308-199907

�}�[�N�@�R

main44325-12300iKZH10#,11#,120,13#¥4,350199907-200111

�}�[�N�@�R

main44325-12310iKZH10#,11#,12#,13#¥4,350199308-199907

�}�[�N�@�S

main44325-12310iKZH10#,11#,120,13#¥4,350199907-200111

�}�[�N�@�S

main44325-26010iLH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥6,700198908-199007

�}�[�N����

main44325-26020iLH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥6,700198908-199007

�}�[�N�@�P

main44325-26030iLH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥6,700198908-199007

�}�[�N�@�Q

main44325-26040iLH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥6,700198908-199007

�}�[�N�@�R

main44325-26050iLH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL¥6,700198908-199007

�}�[�N�@�S

main44325-26060iLH100,RZH100,101..SCL¥6,400198908-199007

�}�[�N����

main44325-26070iLH100,RZH100,101..SCL¥6,400198908-199007

�}�[�N�@�P

main44325-26080iLH100,RZH100,101..SCL¥6,400198908-199007

�}�[�N�@�Q

main44325-26090iLH100,RZH100,101..SCL¥6,400198908-199007

�}�[�N�@�R

main44325-26100iLH100,RZH100,101..SCL¥6,400198908-199007

�}�[�N�@�S

main44325-28010iTRH102,112,12#¥3,470200310-200501

�}�[�N�@�O

main44325-28020iTRH102,112,12#¥3,470200310-200501

�}�[�N�@�P

main44325-28030iTRH102,112,12#¥3,470200310-200501

�}�[�N�@�Q

main44325-28040iTRH102,112,12#¥3,470200310-200501

�}�[�N�@�R

main44325-28050iTRH102,112,12#¥3,470200310-200501

�}�[�N�@�S

main44325-32060iLH100,RZH100,101..SCL¥8,200199007-199112

�}�[�N����

main44325-32070iLH100,RZH100,101..SCL¥8,200199007-199112

�}�[�N�@�P

main44325-32080iLH100,RZH100,101..SCL¥8,200199007-199112

�}�[�N�@�Q

main44325-32090iLH100,RZH100,101..SCL¥8,200199007-199112

�}�[�N�@�R

main44325-32100iLH100,RZH100,101..SCL¥8,200199007-199112

�}�[�N�@�S

main44325-32110iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,500199007-199112

�}�[�N����

main44325-32120iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,500199007-199112

�}�[�N�@�P

main44325-32130iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,500199007-199112

�}�[�N�@�Q

main44325-32140iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,500199007-199112

�}�[�N�@�R

main44325-32150iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,200199007-199112

�}�[�N�@�S

main44325-32200iLH100,RZH100,101..SCL¥6,700199112-199308

�}�[�N����

main44325-32210iLH100,RZH100,101..SCL¥6,700199112-199308

�}�[�N�@�P

main44325-32220iLH100,RZH100,101..SCL¥6,700199112-199308

�}�[�N�@�Q

main44325-32230iLH100,RZH100,101..SCL¥6,700199112-199308

�}�[�N�@�R

main44325-32240iLH100,RZH100,101..SCL¥6,700199112-199308

�}�[�N�@�S

main44325-32270iLH162,172,182,184,RZH10#,11#,12#,18#¥6,700199907-200408

�}�[�N����

main44325-32270iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥6,700199308-199907

�}�[�N����

main44325-32270iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥6,700199112-199308

�}�[�N����

main44325-32270iLH168,178,186,188¥6,700200202-200408

�}�[�N����

main44325-32280iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥6,700199112-199308

�}�[�N�@�P

main44325-32280iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥6,700199308-199907

�}�[�N�@�P

main44325-32280iLH168,178,186,188¥6,700200202-200408

�}�[�N�@�P

main44325-32280iLH162,172,182,184,RZH10#,11#,12#,18#¥6,700199907-200408

�}�[�N�@�P

main44325-32290iLH162,172,182,184,RZH10#,11#,12#,18#¥6,700199907-200408

�}�[�N�@�Q

main44325-32290iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥6,700199112-199308

�}�[�N�@�Q

main44325-32290iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥6,700199308-199907

�}�[�N�@�Q

main44325-32290iLH168,178,186,188¥6,700200202-200408

�}�[�N�@�Q

main44325-32300iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥6,700199112-199308

�}�[�N�@�R

main44325-32300iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥6,700199308-199907

�}�[�N�@�R

main44325-32300iLH168,178,186,188¥6,700200202-200408

�}�[�N�@�R

main44325-32300iLH162,172,182,184,RZH10#,11#,12#,18#¥6,700199907-200408

�}�[�N�@�R

main44325-32310iLH162,172,182,184,RZH10#,11#,12#,18#¥6,700199907-200408

�}�[�N�@�S

main44325-32310iLH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥6,700199112-199308

�}�[�N�@�S

main44325-32310iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥6,700199308-199907

�}�[�N�@�S

main44325-32310iLH168,178,186,188¥6,700200202-200408

�}�[�N�@�S

main44325-35060iKZH10#,11#,120,13#¥4,540200111-200408

�}�[�N����

main44325-35070iKZH10#,11#,120,13#¥4,540200111-200408

�}�[�N�@�P

main44325-35080iKZH10#,11#,120,13#¥4,540200111-200408

�}�[�N�@�Q

main44325-35090iKZH10#,11#,120,13#¥4,540200111-200408

�}�[�N�@�R

main44325-35100iKZH10#,11#,120,13#¥4,540200111-200408

�}�[�N�@�S

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iKZH10#,11#,120,13#¥150199907-200408

�������Q�W�C�O�a���S�D�O

main90250-04047iKZH10#,11#,12#,13#¥150199308-199907

�������Q�W�C�O�a���S�D�O

main90250-04049iKZH10#,11#,120,13#¥190199907-200408

�������S�R�C�O�a���S�D�O

main90250-04049iKZH10#,11#,12#,13#¥190199308-199907

�������S�R�C�O�a���S�D�O

main90250-04071iRZH101,111¥110199907-200208

�������Q�R�D�R�C�O�a���S�D�O

main90250-04071iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥110198908-199907

�������Q�R�D�R�C�O�a���S�D�O

main90250-04071iRZH102,112,12#,18#¥110199907-200308

�������Q�R�D�R�C�O�a���S�D�O

main90250-04071iLH16#,17#,18#¥110199907-200408

�������Q�R�D�R�C�O�a���S�D�O

44327CGASKET, VANE PUMP HOUSING

main44327-26010iRZH101,111¥460199907-200208

main44327-26010iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥460198908-199907

main44327-26010iRZH102,112,12#,18#¥460199907-200308

main44327-26010iLH16#,17#,18#¥460199907-200408

44330VALVE ASSY, FLOW CONTROL

main44330-26010iLH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,600198908-199105

�}�[�N�@�`

sub44330-26011¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26011iRZH101,111¥8,700199907-200208

�}�[�N�@�`

main44330-26011iRZH101,111,133¥8,700199608-199907

�}�[�N�@�`

main44330-26011iLH10#,11#,12#,RZH10#,11#,124,133¥8,700199408-199608

�}�[�N�@�`

main44330-26011iLH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,700199105-199408

�}�[�N�@�`

main44330-26020iLH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,600198908-199105

�}�[�N�@�a

sub44330-26021¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26021iLH10#,11#,12#,RZH10#,11#,124,133¥8,700199408-199608

�}�[�N�@�a

main44330-26021iRZH101,111,133¥8,700199608-199907

�}�[�N�@�a

main44330-26021iLH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,700199105-199408

�}�[�N�@�a

main44330-26021iRZH101,111¥8,700199907-200208

�}�[�N�@�a

main44330-26030iLH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,600198908-199105

�}�[�N�@�b

sub44330-26031¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26031iLH10#,11#,12#,RZH10#,11#,124,133¥8,700199408-199608

�}�[�N�@�b

main44330-26031iRZH101,111¥8,700199907-200208

�}�[�N�@�b

main44330-26031iRZH101,111,133¥8,700199608-199907

�}�[�N�@�b

main44330-26031iLH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,700199105-199408

�}�[�N�@�b

main44330-26040iLH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,600198908-199105

�}�[�N�@�c

sub44330-26041¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26041iLH10#,11#,12#,RZH10#,11#,124,133¥8,700199408-199608

�}�[�N�@�c

main44330-26041iLH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,700199105-199408

�}�[�N�@�c

main44330-26041iRZH101,111¥8,700199907-200208

�}�[�N�@�c

main44330-26041iRZH101,111,133¥8,700199608-199907

�}�[�N�@�c

main44330-26050iLH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,600198908-199105

�}�[�N�@�d

sub44330-26051¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26051iLH10#,11#,12#,RZH10#,11#,124,133¥8,700199408-199608

�}�[�N�@�d

main44330-26051iRZH101,111,133¥8,700199608-199907

�}�[�N�@�d

main44330-26051iLH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,700199105-199408

�}�[�N�@�d

main44330-26051iRZH101,111¥8,700199907-200208

�}�[�N�@�d

main44330-26060iLH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,600198908-199105

�}�[�N�@�e

sub44330-26061¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26061iLH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S¥8,700199105-199408

�}�[�N�@�e

main44330-26061iRZH101,111¥8,700199907-200208

�}�[�N�@�e

main44330-26061iRZH101,111,133¥8,700199608-199907

�}�[�N�@�e

main44330-26061iLH10#,11#,12#,RZH10#,11#,124,133¥8,700199408-199608

�}�[�N�@�e

main44330-26070iLH100,107,RZH101..SCL..(DSL,EFI,TDE)¥8,600198908-199105

�}�[�N�@�`

sub44330-26071¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26070iLH107..08S;RZH100..SCL¥8,600199010-199105

�}�[�N�@�`,��(���������� ���- �������)

sub44330-26071¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26070iLH107;LH100..SCL;RZH100..MRF;RZH101..SCMM¥8,600198908-199010

�}�[�N�@�`,��(���������� ���- �������)

sub44330-26071¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26071iLH10#,11#,12#,16#,17#,18#,RZH102,112,12#¥8,500199608-199907

�}�[�N�@�`

main44330-26071iLH162,172,182,184,RZH102,112,12#,18#¥8,500199907-200408

�}�[�N�@�`

main44330-26071iLH100,RZH100,101..SCL¥8,500199302-199308

�}�[�N�@�`

main44330-26071iLH107;LH100,RZH100,101..SCL¥8,500199105-199302

�}�[�N�@�`

main44330-26071iLH168,178,186,188¥8,500200202-200408

�}�[�N�@�`

main44330-26080iLH107..08S;RZH100..SCL¥8,600199010-199105

�}�[�N�@�a,��(���������� ���- �������)

sub44330-26081¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26080iLH107;LH100..SCL;RZH100..MRF;RZH101..SCMM¥8,600198908-199010

�}�[�N�@�a,��(���������� ���- �������)

sub44330-26081¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26080iLH100,107,RZH101..SCL..(DSL,EFI,TDE)¥8,600198908-199105

�}�[�N�@�a

sub44330-26081¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26081iLH10#,11#,12#,16#,17#,18#,RZH102,112,12#¥8,500199608-199907

�}�[�N�@�a

main44330-26081iLH162,172,182,184,RZH102,112,12#,18#¥8,500199907-200408

�}�[�N�@�a

main44330-26081iLH107;LH100,RZH100,101..SCL¥8,500199105-199302

�}�[�N�@�a

main44330-26081iLH100,RZH100,101..SCL¥8,500199302-199308

�}�[�N�@�a

main44330-26081iLH168,178,186,188¥8,500200202-200408

�}�[�N�@�a

main44330-26090iLH107..08S;RZH100..SCL¥8,600199010-199105

�}�[�N�@�b,��(���������� ���- �������)

sub44330-26091¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26090iLH107;LH100..SCL;RZH100..MRF;RZH101..SCMM¥8,600198908-199010

�}�[�N�@�b,��(���������� ���- �������)

sub44330-26091¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26090iLH100,107,RZH101..SCL..(DSL,EFI,TDE)¥8,600198908-199105

�}�[�N�@�b

sub44330-26091¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26091iLH10#,11#,12#,16#,17#,18#,RZH102,112,12#¥8,500199608-199907

�}�[�N�@�b

main44330-26091iLH100,RZH100,101..SCL¥8,500199302-199308

�}�[�N�@�b

main44330-26091iLH162,172,182,184,RZH102,112,12#,18#¥8,500199907-200408

�}�[�N�@�b

main44330-26091iLH107;LH100,RZH100,101..SCL¥8,500199105-199302

�}�[�N�@�b

main44330-26091iLH168,178,186,188¥8,500200202-200408

�}�[�N�@�b

main44330-26100iLH107;LH100..SCL;RZH100..MRF;RZH101..SCMM¥8,600198908-199010

�}�[�N�@�c,��(���������� ���- �������)

sub44330-26101¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26100iLH100,107,RZH101..SCL..(DSL,EFI,TDE)¥8,600198908-199105

�}�[�N�@�c

sub44330-26101¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26100iLH107..08S;RZH100..SCL¥8,600199010-199105

�}�[�N�@�c,��(���������� ���- �������)

sub44330-26101¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26101iLH100,RZH100,101..SCL¥8,500199302-199308

�}�[�N�@�c

main44330-26101iLH107;LH100,RZH100,101..SCL¥8,500199105-199302

�}�[�N�@�c

main44330-26101iLH10#,11#,12#,16#,17#,18#,RZH102,112,12#¥8,500199608-199907

�}�[�N�@�c

main44330-26101iLH162,172,182,184,RZH102,112,12#,18#¥8,500199907-200408

�}�[�N�@�c

main44330-26101iLH168,178,186,188¥8,500200202-200408

�}�[�N�@�c

main44330-26110iLH107;LH100..SCL;RZH100..MRF;RZH101..SCMM¥8,600198908-199010

�}�[�N�@�d,��(���������� ���- �������)

sub44330-26111¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26110iLH107..08S;RZH100..SCL¥8,600199010-199105

�}�[�N�@�d,��(���������� ���- �������)

sub44330-26111¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26110iLH100,107,RZH101..SCL..(DSL,EFI,TDE)¥8,600198908-199105

�}�[�N�@�d

sub44330-26111¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26111iLH162,172,182,184,RZH102,112,12#,18#¥8,500199907-200408

�}�[�N�@�d

main44330-26111iLH168,178,186,188¥8,500200202-200408

�}�[�N�@�d

main44330-26111iLH10#,11#,12#,16#,17#,18#,RZH102,112,12#¥8,500199608-199907

�}�[�N�@�d

main44330-26111iLH100,RZH100,101..SCL¥8,500199302-199308

�}�[�N�@�d

main44330-26111iLH107;LH100,RZH100,101..SCL¥8,500199105-199302

�}�[�N�@�d

main44330-26120iLH107..08S;RZH100..SCL¥8,600199010-199105

�}�[�N�@�e,��(���������� ���- �������)

sub44330-26121¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26120iLH107;LH100..SCL;RZH100..MRF;RZH101..SCMM¥8,600198908-199010

�}�[�N�@�e,��(���������� ���- �������)

sub44330-26121¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26120iLH100,107,RZH101..SCL..(DSL,EFI,TDE)¥8,600198908-199105

�}�[�N�@�e

sub44330-26121¥8,500

sub44308-14081¥4,240

sub44308-26061¥1,690

sub44308-32150¥1,690

sub90501-13034¥160

main44330-26121iLH10#,11#,12#,16#,17#,18#,RZH102,112,12#¥8,500199608-199907

�}�[�N�@�e

main44330-26121iLH100,RZH100,101..SCL¥8,500199302-199308

�}�[�N�@�e

main44330-26121iLH107;LH100,RZH100,101..SCL¥8,500199105-199302

�}�[�N�@�e

main44330-26121iLH162,172,182,184,RZH102,112,12#,18#¥8,500199907-200408

�}�[�N�@�e

main44330-26121iLH168,178,186,188¥8,500200202-200408

�}�[�N�@�e

main44330-26190iKZH10#,11#,12#¥5,900199308-199508

�}�[�N�@�`

main44330-26200iKZH10#,11#,12#¥5,900199308-199508

�}�[�N�@�a

main44330-26210iKZH10#,11#,12#¥5,900199308-199508

�}�[�N�@�b

main44330-26220iKZH10#,11#,12#¥5,900199308-199508

�}�[�N�@�c

main44330-26230iKZH10#,11#,12#¥5,900199308-199508

�}�[�N�@�d

main44330-26240iKZH10#,11#,12#¥5,900199308-199508

�}�[�N�@�e

main44330-32790iLH107¥8,600199302-199308

�}�[�N�@�`

sub44330-26071¥8,500

main44330-32790iRZH101..SCL¥8,600199308-199408

�}�[�N�@�`

sub44330-26071¥8,500

main44330-32800iRZH101..SCL¥8,600199308-199408

�}�[�N�@�a

sub44330-26081¥8,500

main44330-32800iLH107¥8,600199302-199308

�}�[�N�@�a

sub44330-26081¥8,500

main44330-32810iLH107¥8,600199302-199308

�}�[�N�@�b

sub44330-26091¥8,500

main44330-32810iRZH101..SCL¥8,600199308-199408

�}�[�N�@�b

sub44330-26091¥8,500

main44330-32820iRZH101..SCL¥8,600199308-199408

�}�[�N�@�c

sub44330-26101¥8,500

main44330-32820iLH107¥8,600199302-199308

�}�[�N�@�c

sub44330-26101¥8,500

main44330-32830iLH107¥8,600199302-199308

�}�[�N�@�d

sub44330-26111¥8,500

main44330-32830iRZH101..SCL¥8,600199308-199408

�}�[�N�@�d

sub44330-26111¥8,500

main44330-32840iLH107¥8,600199302-199308

�}�[�N�@�e

sub44330-26121¥8,500

main44330-32840iRZH101..SCL¥8,600199308-199408

�}�[�N�@�e

sub44330-26121¥8,500

main44330-35310iTRH102,112,12#¥5,300200310-200501

�}�[�N�@�`

main44330-35320iTRH102,112,12#¥5,300200310-200501

�}�[�N�@�a

main44330-35330iTRH102,112,12#¥5,300200310-200501

�}�[�N�@�b

main44330-35340iTRH102,112,12#¥5,300200310-200501

�}�[�N�@�c

main44330-35350iTRH102,112,12#¥5,300200310-200501

�}�[�N�@�d

main44330-35360iTRH102,112,12#¥5,300200310-200501

�}�[�N�@�e

main44330-60070iKZH10#,11#,120,13#¥8,500199907-200408

�}�[�N�@�`

main44330-60070iKZH10#,11#,12#,13#¥8,500199508-199907

�}�[�N�@�`

main44330-60080iKZH10#,11#,12#,13#¥8,500199508-199907

�}�[�N�@�a

main44330-60080iKZH10#,11#,120,13#¥8,500199907-200408

�}�[�N�@�a

main44330-60090iKZH10#,11#,120,13#¥8,500199907-200408

�}�[�N�@�b

main44330-60090iKZH10#,11#,12#,13#¥8,500199508-199907

�}�[�N�@�b

main44330-60100iKZH10#,11#,12#,13#¥8,500199508-199907

�}�[�N�@�c

main44330-60100iKZH10#,11#,120,13#¥8,500199907-200408

�}�[�N�@�c

main44330-60110iKZH10#,11#,120,13#¥8,500199907-200408

�}�[�N�@�d

main44330-60110iKZH10#,11#,12#,13#¥8,500199508-199907

�}�[�N�@�d

main44330-60120iKZH10#,11#,120,13#¥8,500199907-200408

�}�[�N�@�e

main44330-60120iKZH10#,11#,12#,13#¥8,500199508-199907

�}�[�N�@�e

44337UNION, POWER STEERING SUCTION PORT

main44337-26030iRZH102,112,12#,18#¥1,920199907-200308

main44337-26030iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥1,920198908-199907

main44337-26030iRZH101,111¥1,920199907-200208

main44337-26030iLH16#,17#,18#¥1,920199907-200408

main44337-26060iKZH10#,11#,12#,13#¥1,870199308-199907

main44337-26060iKZH10#,11#,120,13#¥1,870199907-200408

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133¥270198908-199609

sub90301-11016¥140

main90301-11016iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥140199609-199907

main90301-11016iKZH10#,11#,120,13#,LH162,172,182,184,RZH10#,11#,12#,18#¥140199907-200408

main90301-11016iLH168,178,186,188¥140200202-200408

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133¥300198908-199609

���a���P�X�D�T�C�O�a���Q�Q�D�T

sub90301-19013¥260

main90301-19013iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥260199609-199907

���a���P�X�D�Q�C�O�a���Q�Q�D�R

sub90301-19018¥240

main90301-19018iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#¥240199907-200408

���a���P�X�D�Q�C�O�a���Q�Q�D�R

44342PLATE, VANE PUMP SIDE, REAR

main44342-26010iLH10#,11#,12#,RZH10#,11#,12#¥1,550198908-199007

main44342-26020iRZH101,111¥1,530199907-200208

main44342-26020iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥1,530199112-199907

main44342-26020iRZH102,112,12#,18#¥1,530199907-200308

main44342-26020iLH16#,17#,18#¥1,530199907-200408

main44342-32050iLH10#,11#,12#,140,RZH10#,11#,12#¥1,530199007-199112

main44342-60020iKZH10#,11#,120,13#¥2,570199907-200408

main44342-60020iKZH10#,11#,12#,13#¥2,570199308-199907

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-11020iTRH102,112,12#¥140200310-200501

�m�n�D�P�F�C���X�g�Q��

main90301-18007iLH162,172,182,184,RZH10#,11#,12#,18#¥110199907-200408

����

main90301-18007iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥110198908-199907

����

main90301-18007iLH168,178,186,188¥110200202-200408

����

main90301-18009iTRH102,112,12#¥140200310-200501

�m�n�D�Q�F�C���X�g�Q��

main90301-47001iLH168,178,186,188¥170200202-200408

�O��

main90301-47001iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥170198908-199907

�O��

main90301-47001iLH162,172,182,184,RZH10#,11#,12#,18#¥170199907-200408

�O��

main90301-53004iKZH10#,11#,12#,13#¥270199508-199907

main90301-53004iKZH10#,11#,120,13#¥270199907-200408

main90301-53006iKZH10#,11#,12#¥180199308-199508

sub90301-53007¥240

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-11047iLH10#,11#,12#,140,RZH10#,11#,12#¥110198908-199105

main90501-13024iKZH10#,11#,120,13#¥160200310-200408

main90501-13034iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133¥160199105-199907

main90501-13034iLH162,172,182,184,RZH10#,11#,12#,18#¥160199907-200408

main90501-13034iLH168,178,186,188¥160200202-200408

main90501-13069iTRH102,112,12#¥130200310-200501

44345BPLATE, VANE PUMP

main44345-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133¥700198908-199512

�������P�T�D�O�O�O

main44345-26010iLH162,172,182,184,RZH10#,11#,12#,18#¥700199907-200408

�������P�T�D�O�O�O

main44345-26010iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥700199512-199907

�������P�T�D�O�O�O

main44345-26010iLH168,178,186,188¥700200202-200408

�������P�T�D�O�O�O

main44345-26020iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133¥700198908-199512

�������P�S�D�X�X�W

main44345-26020iLH162,172,182,184,RZH10#,11#,12#,18#¥700199907-200408

�������P�S�D�X�X�W

main44345-26020iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥700199512-199907

�������P�S�D�X�X�W

main44345-26020iLH168,178,186,188¥700200202-200408

�������P�S�D�X�X�W

main44345-26030iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥700199512-199907

�������P�S�D�X�X�U

main44345-26030iLH168,178,186,188¥700200202-200408

�������P�S�D�X�X�U

main44345-26030iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133¥700198908-199512

�������P�S�D�X�X�U

main44345-26030iLH162,172,182,184,RZH10#,11#,12#,18#¥700199907-200408

�������P�S�D�X�X�U

main44345-26040iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥700199512-199907

�������P�S�D�X�X�S

main44345-26040iLH162,172,182,184,RZH10#,11#,12#,18#¥700199907-200408

�������P�S�D�X�X�S

main44345-26040iLH168,178,186,188¥700200202-200408

�������P�S�D�X�X�S

main44345-26040iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133¥700198908-199512

�������P�S�D�X�X�S

main44345-26050iLH162,172,182,184,RZH10#,11#,12#,18#¥700199907-200408

�������P�S�D�X�X�Q

main44345-26050iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133¥700198908-199512

�������P�S�D�X�X�Q

main44345-26050iLH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133¥700199512-199907

�������P�S�D�X�X�Q

main44345-26050iLH168,178,186,188¥700200202-200408

�������P�S�D�X�X�Q

main44345-32100iTRH102,112,12#¥370200310-200501

���[�^�@�}�[�N����

main44345-32110iTRH102,112,12#¥370200310-200501

���[�^�@�}�[�N�@�P

main44345-32120iTRH102,112,12#¥370200310-200501

���[�^�@�}�[�N�@�Q

main44345-32130iTRH102,112,12#¥370200310-200501

���[�^�@�}�[�N�@�R

main44345-32140iTRH102,112,12#¥370200310-200501

���[�^�@�}�[�N�@�S

main44345-60010iKZH10#,11#,120,13#¥350199907-200408

�������P�T�D�O�O�O

main44345-60010iKZH10#,11#,12#,13#¥350199512-199907

�������P�T�D�O�O�O

main44345-60020iKZH10#,11#,120,13#¥510199907-200408

�������P�S�D�X�X�W

main44345-60020iKZH10#,11#,12#,13#¥510199512-199907

�������P�S�D�X�X�W

main44345-60030iKZH10#,11#,12#,13#¥510199512-199907

�������P�S�D�X�X�U

main44345-60030iKZH10#,11#,120,13#¥510199907-200408

�������P�S�D�X�X�U

main44345-60040iKZH10#,11#,120,13#¥510199907-200408

�������P�S�D�X�X�S

main44345-60040iKZH10#,11#,12#,13#¥510199512-199907

�������P�S�D�X�X�S

main44345-60050iKZH10#,11#,120,13#¥510199907-200408

�������P�S�D�X�X�Q

main44345-60050iKZH10#,11#,12#,13#¥510199512-199907

�������P�S�D�X�X�Q

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-25060iTRH102,112,12#¥6,400200308-200501

main44360-26050iRZH10#,11#,12#,133¥10,400198908-199907

�s�x�o�d�@�a�F�C���X�g�Q��

main44360-26050iRZH10#,11#,12#,18#¥10,400199907-200308

�s�x�o�d�@�a�F�C���X�g�Q��

main44360-26060iLH100,102,103,110,113,115,120,123,125,140¥10,500198908-199806

�s�x�o�d�@�`�F�C���X�g�Q��

main44360-26061iLH162,172,182,184¥10,300199907-200408

�s�x�o�d�@�`�F�C���X�g�Q��

main44360-26061iLH103,113,123,125,162,172,182,184¥10,300199806-199907

�s�x�o�d�@�`�F�C���X�g�Q��

main44360-26070iLH168,178,186,188¥10,400199907-200408

�s�x�o�d�@�`�F�C���X�g�Q��

main44360-26070iLH107,109,117,119,129,168,178,186,188¥10,400198908-199907

�s�x�o�d�@�`�F�C���X�g�Q��

main44360-26090iKZH10#,11#,120,13#¥10,300199907-200408

main44360-26090iKZH10#,11#,12#,13#¥10,300199308-199907

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90480-16005iLH103,113,123,125¥620199805-199808

main90480-16005iLH162,172,182,184..5F¥620200310-200408

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90387-10040iLH162,172,182,184..5F200310-200408

main90387-10040iLH103,113,123,125199805-199808

4503

9010508192

main90105-08192¥130

9010508194

main90105-08194¥130

9010510082

main90105-10082¥180

9011908035

main90119-08035¥110

9011908806

main90119-08806¥200

9017812003

main90178-12003¥160

9020631001

main90206-31001¥160

9041006006

main90410-06006¥200

37 parts on this diagram · 3 diagrams in section
