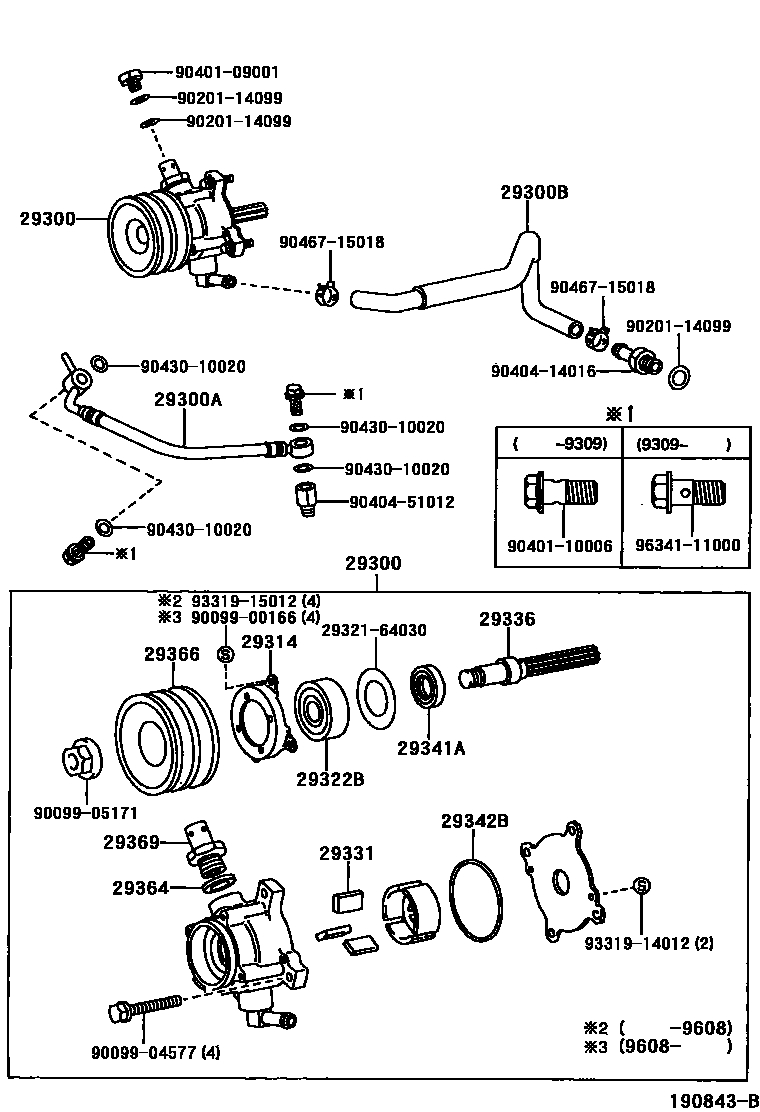

Toyota HIACE/REGIUSACE — VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54100i3L..LH113..5D..5F..GL;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L..LH100,110,115,119,123,125..09S,10S,15S¥41,300198908-199308

sub29300-54130¥41,500

main29300-54110i2L..LH110..DX;2LT#,3L..LH100,107,117,120;3L..LH113..V1..(05S,06S)..4FC;2L,3L..LH102,119..4FC..(GL,SGL)¥41,300198908-199608

sub29300-54140¥41,300

main29300-54120i3L..LH10#,11#,123,129..(03S,06S)..5F..(CD,DX)¥41,300199308-199608

main29300-54140i3L..LH10#,11#,12#¥41,300199608-199805

sub29300-54180¥26,000

main29300-54180i5L..LH16#,17#,18#¥26,000199805-200408

main29300-67020i1KZTE..KZH10#,11#,120,13#¥33,500199308-200408

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02109i2LT..LH100,120¥5,500198908-199007

main90923-02110i2L,3L..LH10#,11#,123,125,129,140¥5,100198908-199301

sub90923-02118¥7,000

main90923-02114i2LT#..LH100,120¥5,500199007-199308

sub90923-02119¥3,450

main90923-02118i2LTE..LH120..DX;2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#¥7,000199301-200408

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54050i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥2,050198908-200408

29314RING, STOP

main29314-64030i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

29322BBEARING, VACUUM PUMP

main90099-10166i2L,2LT#,3L..LH10#,11#,12#,140198908-199612

main90099-10185i1KZTE..KZH10#,11#,12#,13#199308-200408

main90099-10199i5L..LH16#,17#,18#199612-200408

29331BLADE, VACUUM PUMP, A

main29331-54130i3L,5L..LH10#,11#,12#,16#,17#,18#199608-200408

main29331-64030i3L..LH10#,11#,12#198908-199608

main29331-67020i1KZTE..KZH10#,11#,12#,13#199308-200408

29336SHAFT, VACUUM PUMP

main29336-58050i1KZTE..KZH10#,11#,120,13#199308-200408

main29336-64030i2L#,3L..LH10#,11#,12#198908-199008

sub29336-64031

sub90099-10166

main29336-64031i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#199008-200408

29341ASEAL, OIL

main29341-64030i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

29342PACKING, VACUUM PUMP

main29342-58010i1KZTE..KZH10#,11#,120,13#199308-200408

main29342-67020i1KZTE..KZH10#,11#,12#,13#¥0199308-200408

main29342-68010i1KZTE..KZH10#,11#,12#,13#199308-200408

29342BRING, O

main29342-64030i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

29364WASHER, VACUUM PUMP

main29364-66010i1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#¥180198908-200408

29366PULLEY, VACUUM PUMP

main29366-54080i3L..LH123;2L,3L..LH102,113..4FC..DX;2L,3L..LH100,102,109,110,113,115,119,125,129,140..5F198908-199308

main29366-54110i2L..LH110..DX;2LT#,3L..LH100,107,117,120;3L..LH113..V1..(05S,06S)..4FC;2L,3L..LH102,119..4FC..(GL,SGL)198908-199308

main29366-54110i5L..LH16#,17#,18#199308-200408

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#198908-200408

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099¥230

9040109001

main90401-09001¥180

9040110006

main90401-10006¥260

9040414016

main90404-14016¥240

9040451012

main90404-51012¥180

9043010020

main90430-10020¥130

9046715018

main90467-15018¥250

9331914012

main93319-14012¥70

9331915012

main93319-15012¥70

9634111000

main96341-11000¥160

27 parts on this diagram · 2 diagrams in section
