Toyota HIACE/REGIUSACE — SPOILER & SIDE MUDGUARD

0001 1 0002 1

76081SPOILER SUB-ASSY, FRONT

main76081-26010iKZH10#,RZH100,101..(07S,08S)..4FC¥116,000199308-199907

76085SPOILER SUB-ASSY, REAR

main76085-26900iKZH10#,RZH100,101..MRF¥42,200199308-199607

sub76085-26901¥42,400

main76085-26901iKZH10#,RZH101..MRF¥42,400199607-200408

76851COVER, FRONT SPOILER

main76851-26010iKZH10#,RZH100,101..(07S,08S)..4FC¥31,800199308-199907

76872PROTECTOR, REAR SPOILER, NO.1

main76872-26010iKZH10#,RZH101..MRF¥130199508-200408

76873PROTECTOR, REAR SPOILER, NO.2

main76873-26010iKZH10#,RZH101..MRF¥160199508-200408

76874PROTECTOR, REAR SPOILER, NO.3

main76874-26010iKZH10#,RZH101..MRF¥130199508-200408

76875PROTECTOR, REAR SPOILER, NO.4

main76875-26010iKZH10#,RZH101..MRF¥130199508-200408

76893COVER, REAR SPOILER, NO.1

main76893-26010iKZH10#,RZH100,101..MRF¥120199308-199512

sub76893-26020¥120

main76893-26020iKZH10#,RZH101..MRF¥120199512-200408

76895PROTECTOR, REAR SPOILER, NO.5

main76895-26010iKZH10#,RZH101..MRF¥130199508-200408

85750BMOTOR ASSY, FR SPOILER

main85750-26010iKZH10#,RZH100,101..(07S,08S)..4FC¥26,800199308-199907

9011908277

main90119-08277¥140

9015750017

main90157-50017¥120

9015950358

main90159-50358¥110

9015960476

main90159-60476¥100

9018906029

main90189-06029¥100

9046709077

main90467-09077¥70

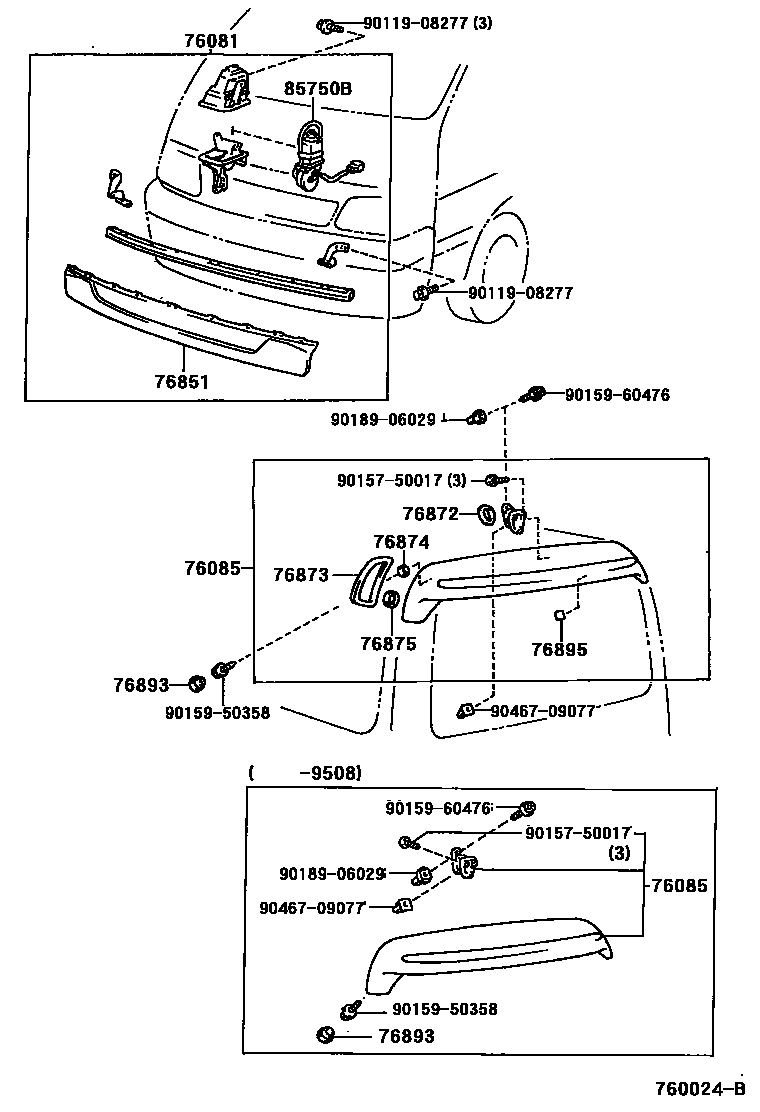

16 parts on this diagram · 2 diagrams in section
