Toyota HIACE/REGIUSACE — SHORT BLOCK ASSEMBLY

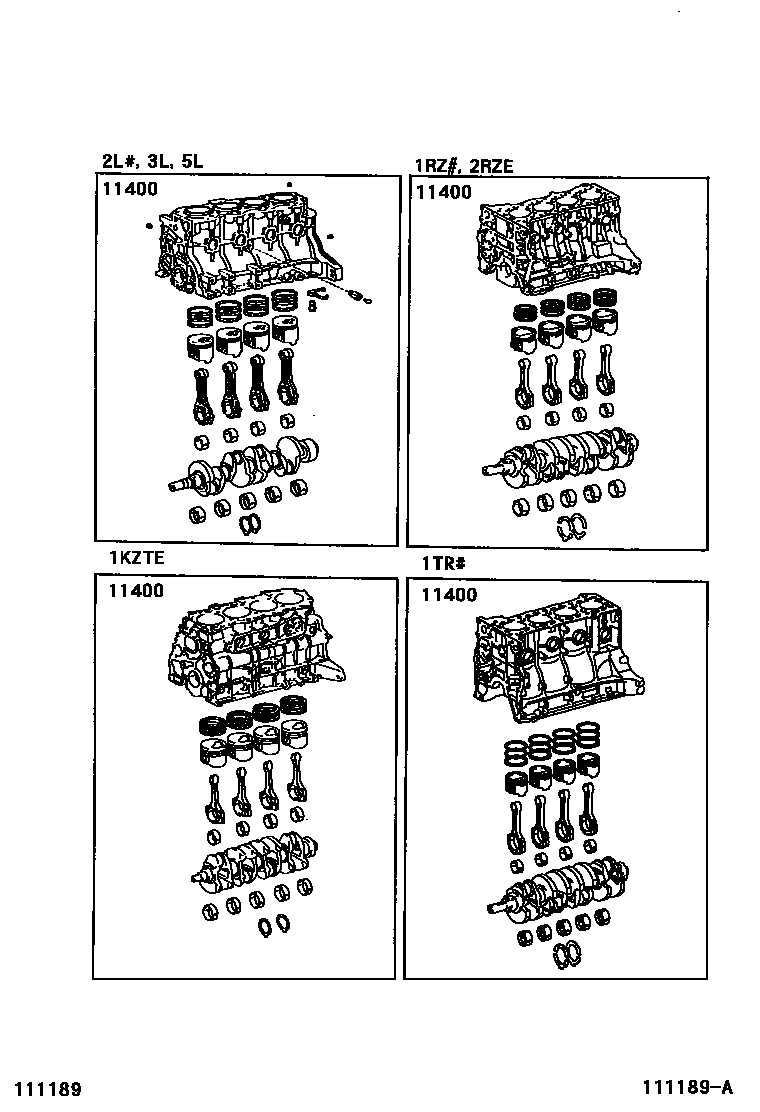

Parts diagram
11400BLOCK ASSY, SHORT
main11400-54100i¥428,000198908-199308
main11400-54120i¥460,000198908-199808
main11400-54130i¥441,000198908-199010
main11400-54150i¥439,000199010-199210
sub11400-54151¥441,000
main11400-54151i¥441,000199210-199308
main11400-54160i¥379,000199808-200408
main11400-67020i¥494,000199308-199503
sub11400-67021¥496,000
sub13572-67041¥1,290
sub13581-67041¥2,890
sub90105-10398¥180
main11400-67021i¥496,000199503-199608
sub11400-69035¥497,000
main11400-67050i¥497,000199907-200005
sub11400-67051¥497,000
sub32909-26150¥1,010
sub32921-26300¥1,600
sub32921-26310¥1,600
sub32922-26290¥1,870
sub32922-26300¥1,880
sub82715-26161¥510
sub82729-26080¥640
sub91162-61216¥120
sub91162-61220¥170
sub91619-61216¥120
sub91619-61250¥140
sub94130-61200¥100
main11400-67051i¥497,000200005-200408
main11400-69035i¥497,000199608-199907
sub11400-67041¥496,000
sub32909-26150¥1,010
sub32909-35130¥1,150
sub32921-26300¥1,600
sub32921-26310¥1,600
sub32921-35380¥1,600
sub32922-26290¥1,870
sub32922-26300¥1,880
sub32922-35410¥2,470
sub82715-26161¥510
sub82729-26080¥640
sub91162-61216¥120
sub91162-61220¥170
sub91619-61216¥120
sub91619-61235¥130
sub91619-61250¥140
sub94130-61200¥100
main11400-75010i¥318,000198908-199305
sub11400-75011¥318,000
main11400-75011i¥318,000199305-199308
sub11400-75021¥320,000
main11400-75021i¥320,000199308-200308
main11400-75030i¥365,000198908-199307
sub11400-75031¥365,000
main11400-75031i¥365,000199307-199508
sub11400-75090¥368,000
main11400-75090i¥368,000199508-199907
main11400-75140i¥269,000200308-200501

1 parts on this diagram · 1 diagram in section
