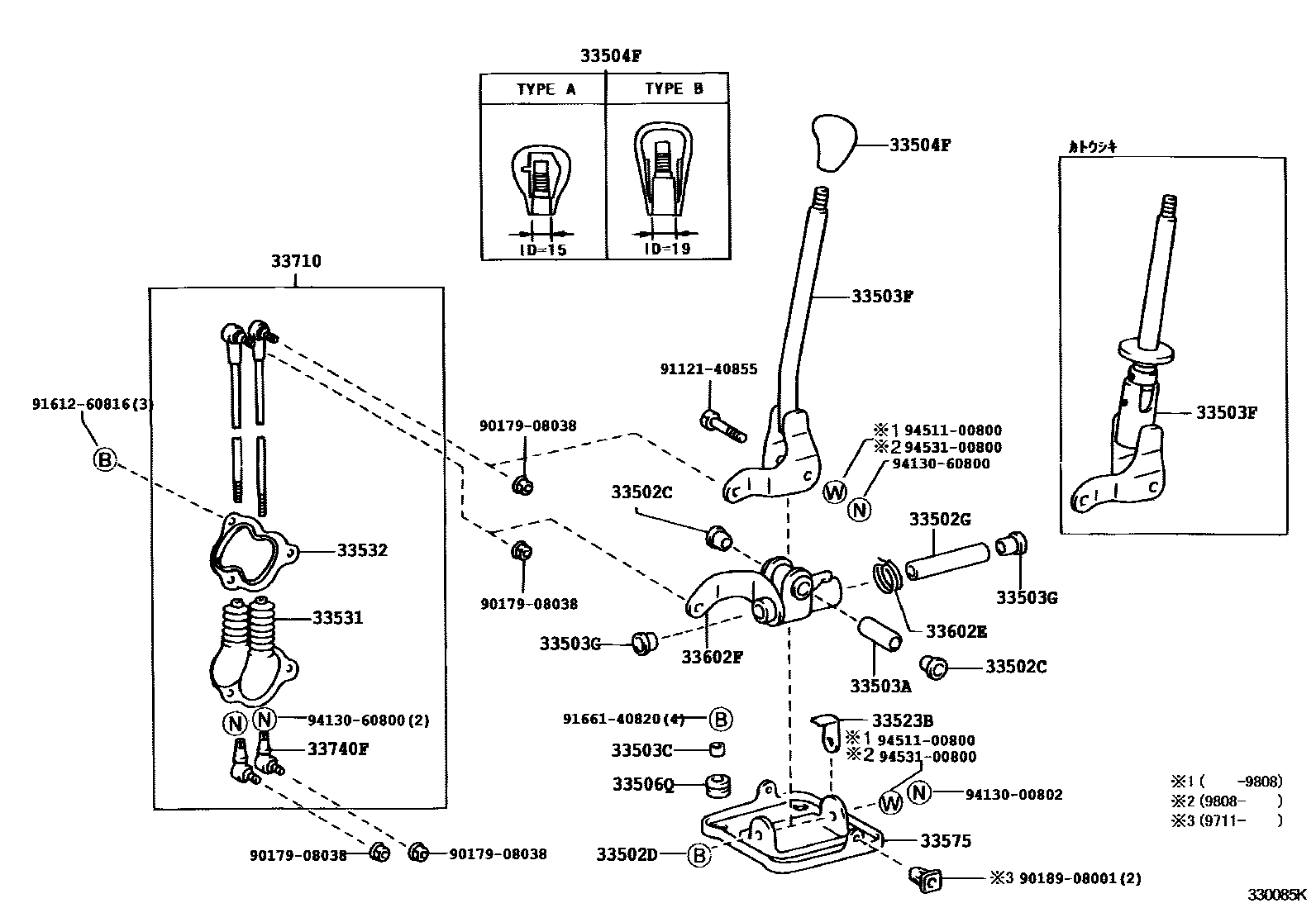

Toyota HIACE/REGIUSACE — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0006 1 0008 1 0009 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-26050iLH100,102,107,113,119,123,RZH10#,112..4FC¥7,400198908-199008

sub33502-26051¥7,400

sub90189-05126¥110

main33502-26051iKZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC¥7,400199008-200412

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13007iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F¥160198908-200412

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08140iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥260198908-200412

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥320198908-200412

main90387-08102iKZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC¥320198908-200412

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥200198908-200412

33503CCOLLAR(FOR SHIFT LEVER SUB-ASSY)

main90387-09039iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F¥230198908-200412

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-26010iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F¥6,000198908-200412

main33055-26020iKZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC¥3,590198908-200412

main33055-26050iLH102,113,RZH102,112..CD¥8,200198908-199308

main33055-26090iKZH10#,RZH101..SCL¥3,330199907-200408

33503GBUSH(FOR SHIFT LEVER)

main90386-13007iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥160198908-199907

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-B1iLH178..5F..(CD,DX);LH10#,11#,12#,16#,172,18#,RZH102,112,124..5F199308-199907

sub33504-14070¥2,730

sub33504-14050¥3,000

main33504-14070-E2iLH113,123,129,RZH112..HRF..5F199308-199508

sub33504-14070¥2,730

sub33504-14050¥3,000

main33504-14070-P0iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F..(CD,DX,GL)199907-200412

sub33504-14070¥2,730

sub33504-14050¥3,000

main33504-24010-48iLH10#,110,113,119,123,129,140,RZH100,102,112,122..(03S,05S,06S,08S,09S)..5F198908-199308

sub33504-24010¥1,710

main33504-24010-58iLH100,107,110,115,117,120,125,RZH100,110,124..(08S,10S,15S)..5F198908-199308

sub33504-24010¥1,710

main33504-35030-B1iKZH10#,11#..5F;LH178..5F..SGL199308-199907

sub33504-24010¥1,710

sub33504-35030¥1,860

sub33504-60121¥5,400

main33504-35030-B4iLH178..5F..SGL199907-200408

sub33504-24010¥1,710

sub33504-35030¥1,860

sub33504-60121¥5,400

main33504-35030-E3iKZH10#,126..(08S,10S)..5F199308-199907

sub33504-24010¥1,710

sub33504-35030¥1,860

sub33504-60121¥5,400

main33542-20080-12iLH100,107,120,123,RZH100,101..(06S,07S,08S,10S)..4FC198908-199308

NEW MAROON,TRIM3#

sub33542-20080¥4,900

sub33542-20081¥4,910

main33542-20080-23iKZH10#,LH100,102,103,107,113,119,123,129,RZH10#,112..(03S,05S,06S,08S,09S)..4FC198908-199508

GRAY,TRIM1#

sub33542-20080¥4,900

sub33542-20081¥4,910

main33542-20080-B0iKZH10#,11#,13#,LH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133..4FC..(CD,CTM,DX,GL,SCM,SCMM,SGL)199508-199907

BLUISH GRAY,TRIM1#

sub33542-20080¥4,900

sub33542-20081¥4,910

main33542-20080-B1iKZH10#,11#,13#,LH162,17#,18#,RZH10#,11#,125,183..4FC..(CD,DX,GL,SCM,SCMM,SGL,SGLE)199907-200302

SHADOW GRAY,TRIM1#

sub33542-20080¥4,900

sub33542-20081¥4,910

main33542-20080-E2iKZH10#,120,13#,RZH101..4FC199308-199907

ANTELOPE,TRIM4#

sub33542-20080¥4,900

sub33542-20081¥4,910

main33542-20080-E3iKZH13#199907-200302

ORCHID BROWN,TRIM4#

sub33542-20080¥4,900

sub33542-20081¥4,910

main33542-20081iRZH125..GL¥4,910200302-200308

main33542-20081-B1iTRH124..4FC;KZH10#,11#,13#,LH162,17#,18#,RZH102,112,125,183,TRH102,112,122..4FC..(CD,DX,SCM,SCMM,SGL,SGLE)200302-200412

SHADOW GRAY,TRIM1#

sub33542-20081¥4,910

main33542-20081-E3iKZH10#,120..08S,10S200302-200408

ORCHID BROWN,TRIM4#

sub33542-20081¥4,910

main33542-26030-E0iKZH10#,RZH101..SCL199907-200408

ORCHID BROWN,TRIM4#

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-13014iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥280198908-200412

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-26050iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥410198908-200412

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-26020iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F¥1,980198908-200412

main33531-26030iKZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC¥1,800198908-200412

main33531-26040iKZH10#..SCL¥1,800199308-199907

33532PLATE, DUST BOOT

main33532-26030iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#¥670198908-200412

main33532-26040iKZH10#..SCL¥910199308-199907

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-26090iKZH10#,11#,12#,LH10#,11#,12#,140,RZH100,102,110,112,12#..5F¥1,550198908-199711

main33575-26091iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F¥4,000199711-200412

33602ESPRING, TORSION (FOR SELECT LEVER)

main90508-32033iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥170198908-200412

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-26090iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F¥2,190198908-200412

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-26190iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F¥6,700198908-200412

main33710-26200iKZH10#,11#,120,13#,LH162,17#,18#,RZH10#,11#,125,183,TRH102,112,12#..4FC¥4,640198908-200412

main33710-26210iKZH10#..SCL¥4,630199308-199907

33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

main33740-26020iKZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC¥790198908-200412

9017908038

main90179-08038¥130

9018908001

main90189-08001¥120

9112140855

main91121-40855¥200

9161260816

main91612-60816¥120

9166140820

main91661-40820¥130

9413000802

main94130-00802¥90

9413060800

main94130-60800¥60

9451100800

main94511-00800¥100

9453100800

main94531-00800¥160

27 parts on this diagram · 6 diagrams in section
